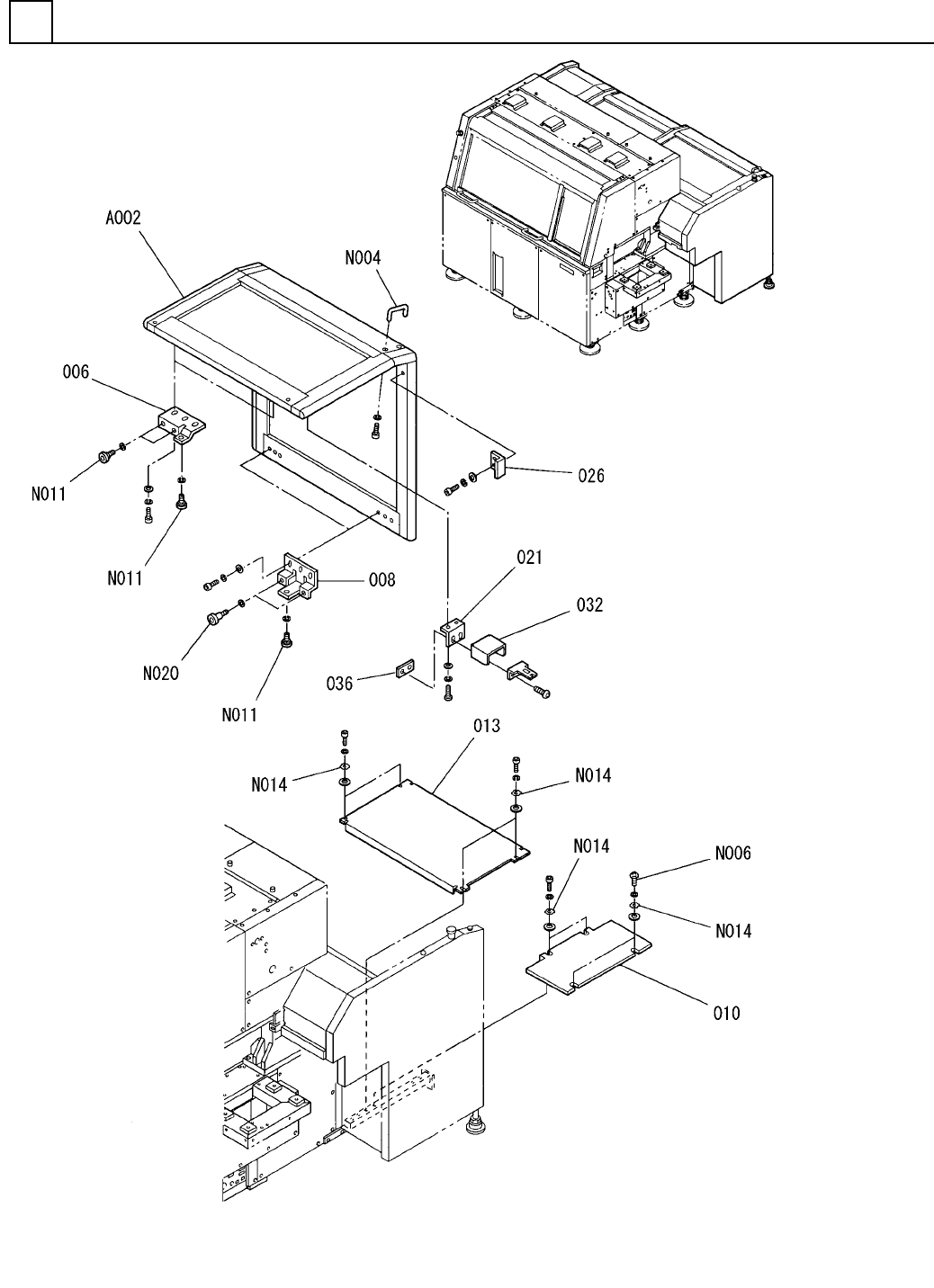

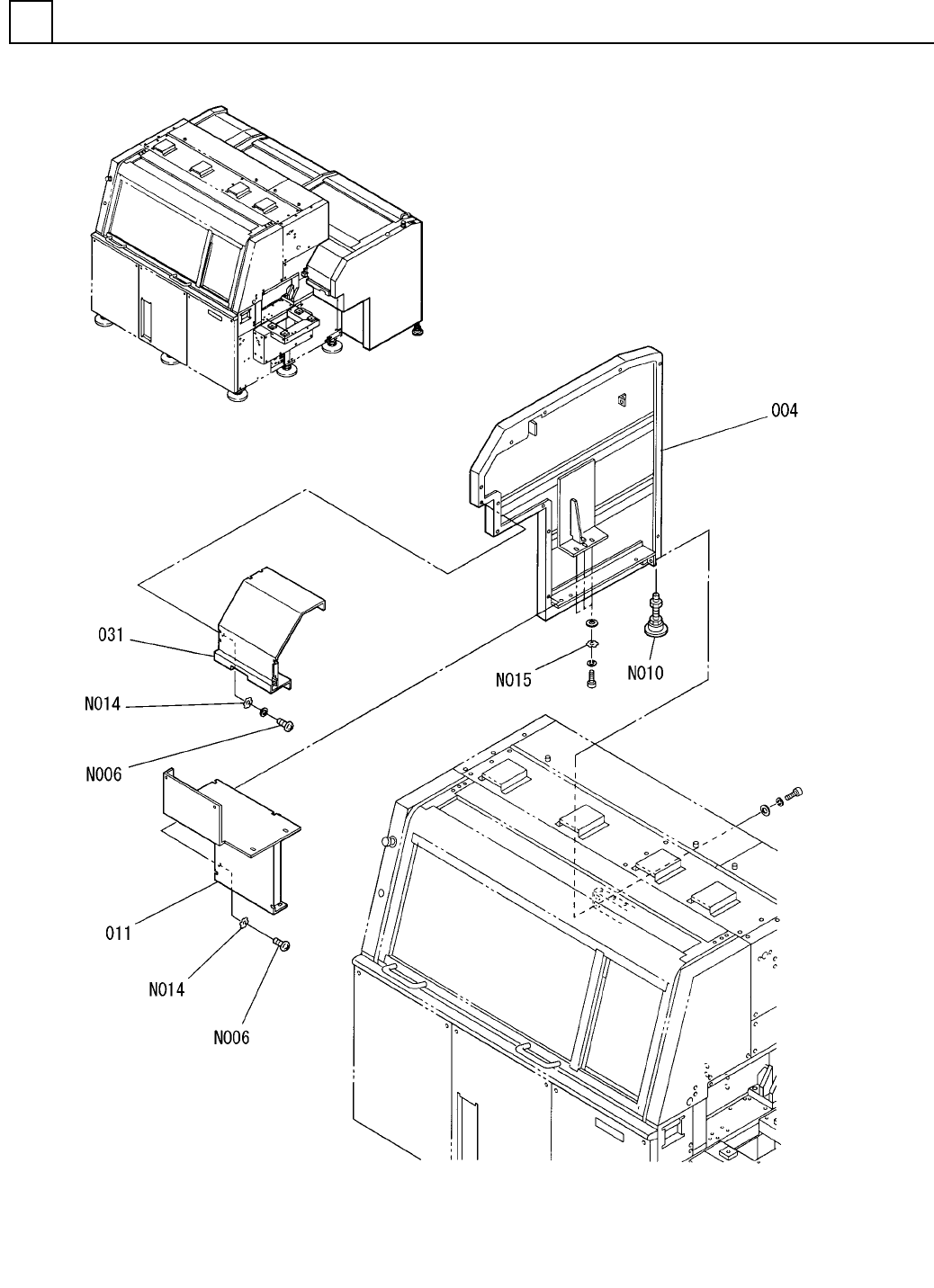

ｶﾊﾞｰ部(Z軸60<4>)
COVER SECT.(Z-AXIS 60<4>)
2
FN610060957AA_01_A-4
M47
   
          PART NAME
     REMARKS 
Q'TY
2
ｶﾊﾞｰ部(Z軸60<4>)
COVER SECT.(Z-AXIS 60<4>)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品  番 個数 備 考
R
1
R
2
1004 N210099316AA
SIDE COVER (L) ｻｲﾄ
ﾞｶﾊﾞｰ(L)
1
011 N210099454AA
COVER(L) ｶﾊﾞｰ(L)
1
031 1087102737
FRONT COVER(LEFT) ﾌﾛﾝﾄｶﾊﾞｰ(LEFT)
M5X12-4.8 A2J (Trivale
7
N006
N510018286AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
TM-257-4(6214)
1
N010
N982TM6214
ADJUSTING BOLT ｱｼ
ﾞｬｽﾄﾎﾞﾙﾄ
5 External toothed Ste
17
N014
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
6 External toothed Ste
3
N015
N510018767AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
