上部ｱﾝﾋﾞﾙ部 (1) UPPER ANVIL SECT.(1) 9 FN610052020AA _00-1 M103
PART NAME
REMARKS
Q'TY
8
移載ﾁｬｯｸ部(5)
TRANSFER CHUCK SECT.(5)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
4052 1087111052
CYLINDER BLOCK ｼﾘﾝﾀ
ﾞﾌﾞﾛｯｸ
16
053 104131103501
ROLLER ﾛｰﾗ
16
054 1017951050
PIN ﾋﾟﾝ
8055 101795101502
SPRING ﾊﾞﾈ
4056 108711105601
PACKING ﾊ
ﾟｯｷﾝ
8
057 104691106702
PISTON ﾋﾟｽﾄﾝ
8
058 104691106802
SPRING ﾊﾞﾈ
4059 N210089146AA
COLLAR ｶﾗｰ
8060 104691107001
PIN ﾋ
ﾟﾝ
4
061 104691107103
LINK ﾘﾝｸ
4062 104691107205
CHUCK ﾁｬｯｸ
8063 104691107303
CHUCK ﾁｬｯｸ
8
064 104691107404
LEVER ﾚﾊﾞｰ
4
065 104691107505
CHUCK ﾁｬｯｸ
4066 104691107604
CHUCK ﾁｬｯｸ
4067 104691107704
CHUCK ﾁｬｯｸ
4
070 104691108004
PISTON ﾋﾟｽﾄﾝ
4
071 104691108102
TUBE ﾁｭｰﾌﾞ
4072 104691108202
TUBE ﾁｭｰﾌﾞ
4073 N210090265AA
LINK ﾘﾝｸ
4
074 104691108401
PIN ﾋﾟﾝ
4
076 1083811076
SPRING ﾊﾞﾈ
4077 1087111077
CAP ｷｬｯﾌ
ﾟ
No.2 2 S A2J (Trivalen
8
N007
N510018324AA
SPRING WASHER ﾊﾞﾈｻ
ﾞｶﾞﾈ
LH0308
8
N025
N510019219AA
BOLT ﾎﾞﾙﾄ
M-5H-4
4
N026
KXF02T7AA00
FITTING ﾆｯﾌﾟﾙ
FECAP-2X8-3CR-202
8
N028
N510015920AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
HRW12LR1UUC1MS+56LMS(D
4
N029
N510036372AA
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
2X6,h8B,STEEL
12
N030
XPJ2E6FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
3,STEEL,P.C
8
N032
XUC3FP
RETAINING RING E-TYPE E ｶﾞﾀﾄﾒﾜ
2,STEEL,P.C
20
N033
XUC2FP
RETAINING RING E-TYPE E
ｶﾞﾀﾄﾒﾜ
KJH04-M5
4
N034
KXF029HAA00
JOINT ｼﾞｮｲﾝﾄ
M102
FN610052073AA_01-5
上部ｱﾝﾋﾞﾙ部(1)
UPPER ANVIL SECT.(1)
9
FN610052020AA_00-1
M103
PART NAME
REMARKS
Q'TY
9

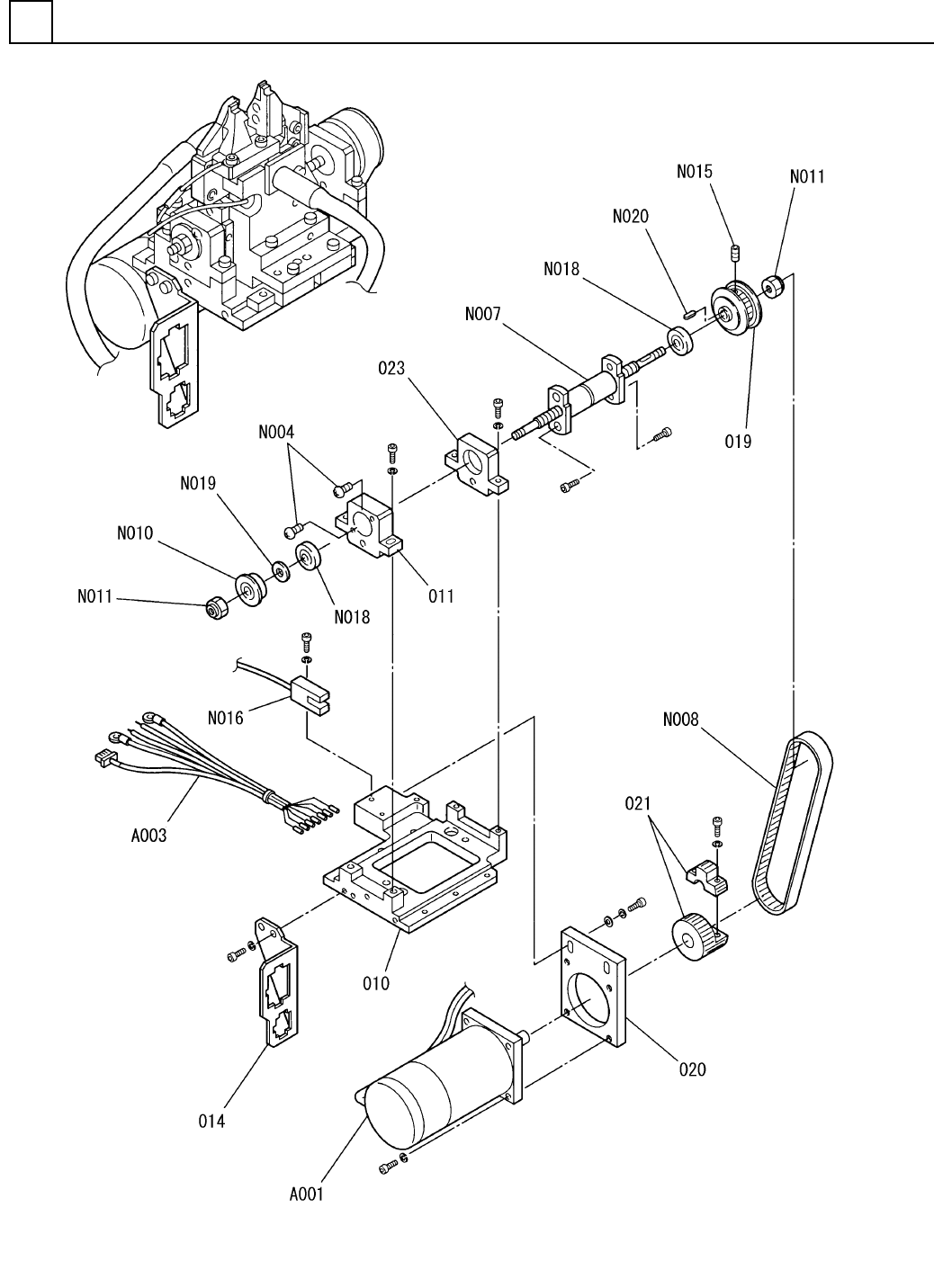

上部ｱﾝﾋﾞﾙ部(1)
UPPER ANVIL SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 N610052020AA
UPPER ANVIL UNIT ｼﾞｮｳﾌ
ﾞｱﾝﾋﾞﾙﾕﾆｯﾄ
1
010 108712101001
MAIN BODY ﾒｲﾝﾎﾞﾃﾞｨ
1
011 108712101101
BLOCK ﾌﾞﾛｯｸ
1014 N210066754AA
BRACKET ﾌﾞﾗｹｯﾄ
1019 108712300602
PULLEY ﾌ
ﾟｰﾘｰ
1
020 108712102002
BRACKET ﾌﾞﾗｹｯﾄ
1
021 108712300302
PULLEY ﾌﾟｰﾘｰ
1023 108712102301
BLOCK ﾌ
ﾞﾛｯｸ
(MSMD5AZPJA) S
1
A001
N610052034AA
MOTOR ﾓｰﾀ
1
A003
N610049596AA
CABLE ｹｰﾌﾞﾙ
M3X6-4.8 A2J (Trivalen
2
N004
N510018253AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
MBF0602RL-2.7RRGT+107L
1
N007
N510019399AA
BALL SCREW ﾎﾞ
ｰﾙﾈｼﾞ
195-3GT-6
1
N008
N6411953GT6
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ)
F605ZZ
1
N010
KXF0AL7AA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M5,SUS301,2-TYPE,SS400
2
N011
N510004700AA
LOCK-NUT ﾛｯｸﾅｯﾄ
M3X6-45H,A2S (Trivalen
1
N015
N510018425AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
P914SA1
1
N016
N310P914SA1
SENSOR ｾﾝｻ
605ZZ
2
N018
N510003188AA
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
RB010014005
1
N019
N510033488AA
SHIM ｼﾑ
2X2X6,PARALLEL,B.S.R
1
N020
XPA2L2F6
SUNK KEY ｼｽﾞ
ﾐｷｰ
M104
FN610052020AA_00-1
