ｶﾊﾞｰ部(Z軸 120<5>) COVER SECT. (Z-AXIS 120<5> ) 2 FN610056792AA _01-5 M33

100%1 / 356
   
          PART NAME
     REMARKS 
Q'TY
2
ｶﾊﾞｰ部(Z軸120<4>)
COVER SECT.(Z-AXIS 120<4>)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品  番 個数 備 考
R
1
R
2
S
1006 N210071358AC
SIDE COVER(LEFT) ｻｲﾄ
ﾞｶﾊﾞｰ(LEFT)
1
016 N210071314AA
COVER ｶﾊﾞｰ
1
017 N210071571AA
COVER ｶﾊﾞｰ
1037 1087102343
BRACKET(L) ﾌﾞﾗｹｯﾄ(L)
1038 N210071570AA
COVER ｶﾊ
ﾞｰ
1
040 3086239031
LABEL ﾗﾍﾞﾙ
XW1E-BV402MFR-TK2377 S
1
N002
N510011524AA
SWITCH ｽｲｯﾁ
#5104A 10mm
1
N003
N986N051-489
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌ
ﾟ
D4NS-1BF S
1
N004
N510015338AA
SWITCH ｽｲｯﾁ
ST13.5
1
N005
KXF06F4AA00
JOINT ｼﾞｮｲﾝﾄ
TM-257-4(6214)
1
N006
N982TM6214
ADJUSTING BOLT ｱｼﾞｬｽﾄﾎﾞﾙﾄ
C-158-3
1
N009
N980C1583
MAGNETIC CATCH ﾏｸ
ﾞﾈｯﾄｷｬｯﾁ
APN122DNS-TK2310
1
N010
KXFP6GAGA00
LAMP ﾗﾝﾌﾟ
BN1206M5X12
6
N018
N986BN12-R26
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
LW6MB-M1C2MLW
1
N019
N510038384AA
SWITCH ｽｲｯﾁ
M32
FN610056792AA_01-4
ｶﾊﾞｰ部(Z軸120<5>)
COVER SECT.(Z-AXIS 120<5>)
2
FN610056792AA_01-5
M33
   
          PART NAME
     REMARKS 
Q'TY
2

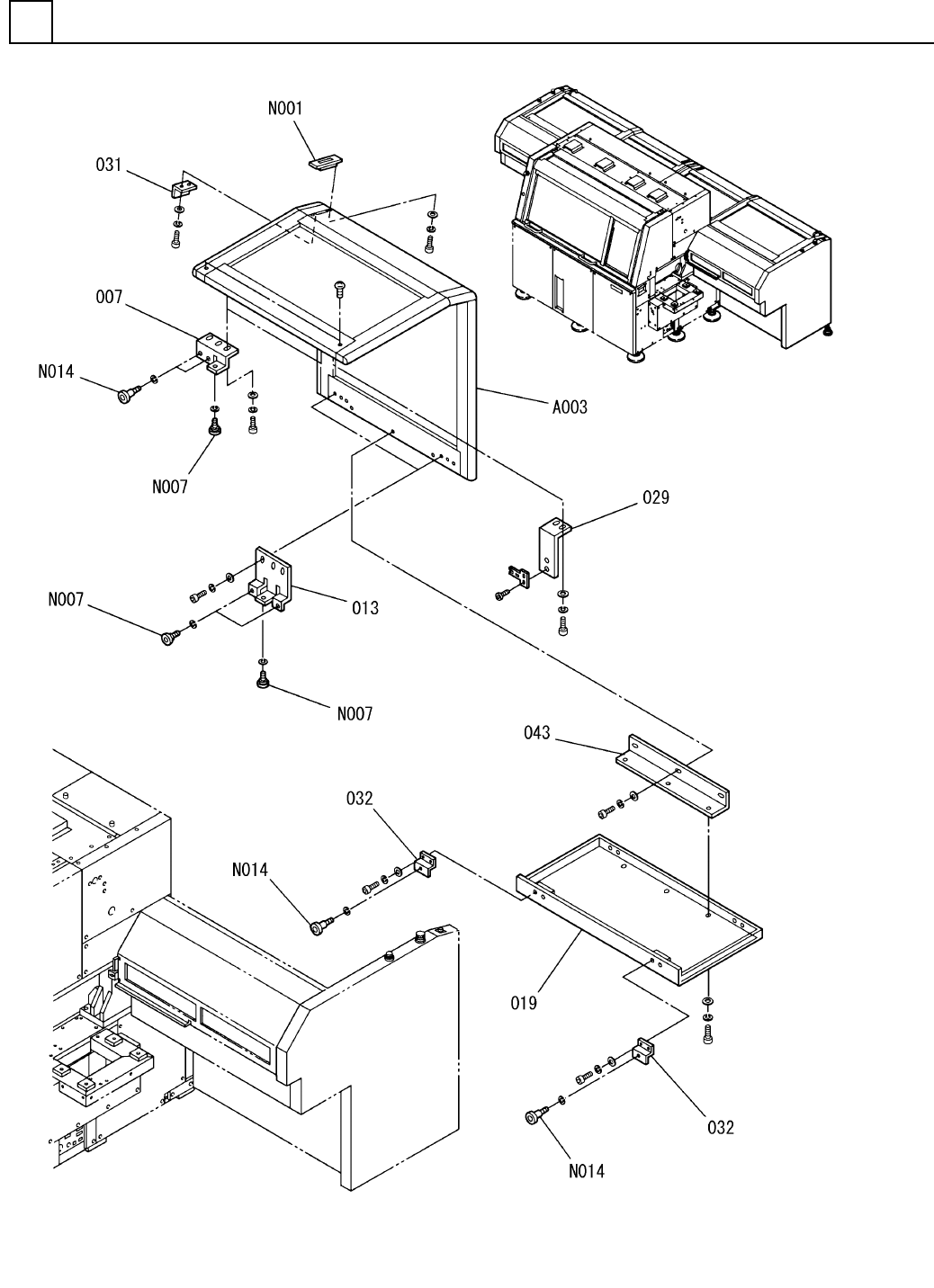

ｶﾊﾞｰ部(Z軸120<5>)
COVER SECT.(Z-AXIS 120<5>)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品  番 個数 備 考
R
1
R
2
2007 N210071337AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
2
013 N210071339AB
BRACKET ﾌﾞﾗｹｯﾄ
1
019 108710232501
COVER(R) ｶﾊﾞｰ(R)
S
1029 N210071372AA
BRACKET ﾌﾞﾗｹｯﾄ
1031 N210071348AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
2
032 1046931347
BRACKET ﾌﾞﾗｹｯﾄ
1
043 N210071527AA
BRACKET ﾌﾞﾗｹｯﾄ
S
1
A003
N610061395AA
RIGHT DOOR ﾄﾞ
ｱ(RIGHT)
A-174-1
1
N001
N980A1741
DRAWER PULL ﾄｯﾃ
22RF602C-1
8
N007
N50022RF-016
BEARING ﾍﾞｱﾘﾝｸﾞ
22RF603C-1
6
N014
N50022RF-017
BEARING ﾍﾞｱﾘﾝｸﾞ
M34
