ｽｸﾗｯﾌﾟﾀﾞｸﾄ 部(2) SCRAP DUCT SECT.(2) 14 FN610066188AA _01-2 M123
PART NAME
REMARKS
Q'TY
14
ｽｸﾗｯﾌﾟﾀﾞｸﾄ部(1)
SCRAP DUCT SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 N610066188AA
SCRAP DUCT UNIT ｽｸﾗｯﾌ
ﾟﾀﾞｸﾄﾕﾆｯﾄ
1
001 1041325015
BRACKET ﾌﾞﾗｹｯﾄ
1
002 N210070636AA
BRACKET ﾌﾞﾗｹｯﾄ
1004 N210084545AA
DUCT ﾀﾞｸﾄ
1006 108382500601
DUCT ﾀ
ﾞｸﾄ
1
008 1083825008
PIPE ﾊﾟｲﾌﾟ
1
009 104132501801
PLATE ﾌﾟﾚｰﾄ
1010 N210084546AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1014 N210064347AA
PIN ﾋ
ﾟﾝ
M3X8-10.9 A2J (Trivale
2
N501
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trivale
7
N502
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Trival
2
N503
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X10-10.9 A2J (Trival
4
N504
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
1
S 1 10413S0007AA
HOSE SET ﾎｰｽｾｯﾄ
1S 2 10413S0008AA
HOSE SET ﾎｰｽｾｯﾄ
M122
FN610066188AA_01-1
ｽｸﾗｯﾌﾟﾀﾞｸﾄ部(2)
SCRAP DUCT SECT.(2)
14
FN610066188AA_01-2
M123
PART NAME
REMARKS
Q'TY
14

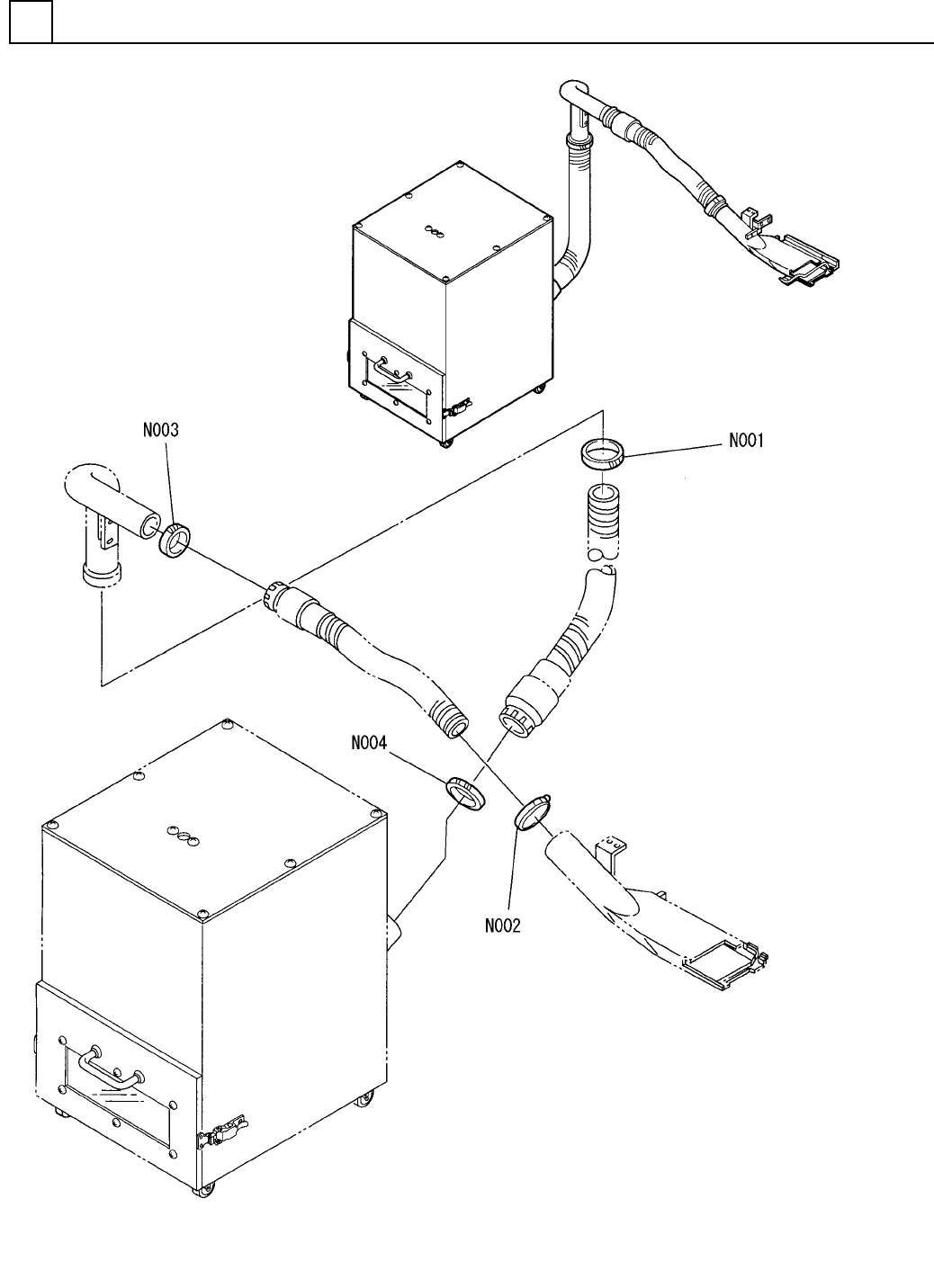

ｽｸﾗｯﾌﾟﾀﾞｸﾄ部(2)
SCRAP DUCT SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
92210-SY65(SUS)
1
N001
N510023057AA
BAND ﾊ
ﾞﾝﾄﾞ
92210-SY50(SUS)
1
N002
N510023056AA
BAND ﾊﾞﾝﾄﾞ
TM-144SS-64(5737)
1
N003
N982TM5737
BAND ﾊﾞﾝﾄﾞ
TM-144SS-75(5738)
1
N004
N982TM5738
BAND ﾊﾞﾝﾄﾞ
M124
FN610066188AA_01-2
