PART NA ME REM ARKS Q'TY 20 ﾒｲﾝｺﾝｿｰﾙﾊﾟﾈ ﾙ取付部 MAIN CONSOL E PANEL ATTACH MENT SECT. ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 N610066189AA PANEL ATTACH MENT UNIT ﾊﾟﾈﾙﾄﾘﾂｹﾕﾆｯﾄ 1 001 N210071661AB UNDER COVER ｱ…

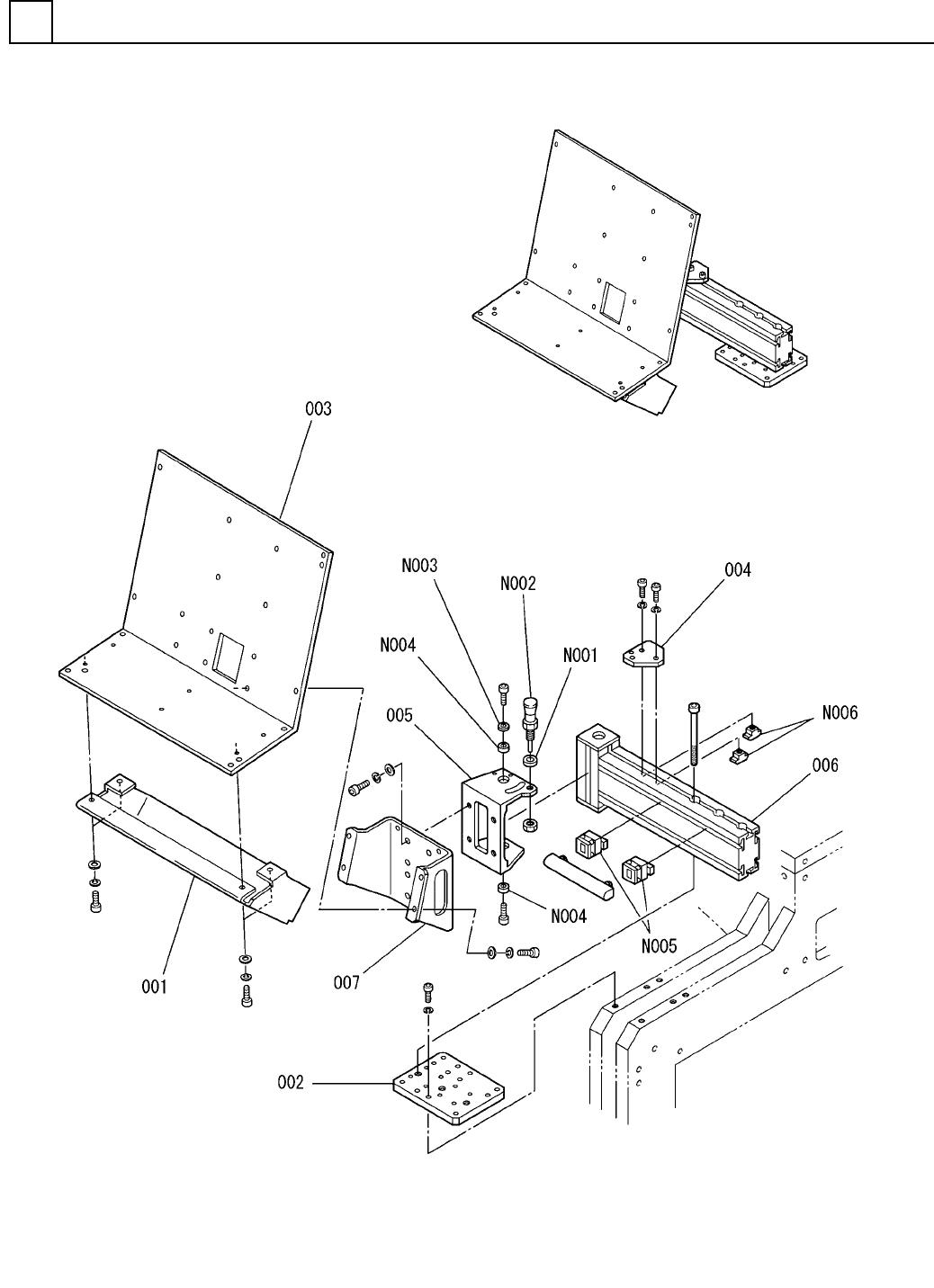

ﾒｲﾝｺﾝｿｰﾙﾊﾟﾈﾙ取付部
MAIN CONSOLE PANEL ATTACHMENT SECT.
20
FN610066189AA_02
M177
PART NAME
REMARKS
Q'TY
20
ﾒｲﾝｺﾝｿｰﾙﾊﾟﾈﾙ取付部
MAIN CONSOLE PANEL ATTACHMENT SECT.
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 N610066189AA
PANEL ATTACHMENT UNIT ﾊﾟﾈﾙﾄﾘﾂｹﾕﾆｯﾄ
1
001 N210071661AB
UNDER COVER ｱﾝﾀﾞｰｶﾊﾞｰ
1
002 N210078856AA
SUPPORT PLATE ｻﾎﾟｰﾄﾌﾟﾚｰﾄ
1003 N210071662AD
PLATE ﾌﾟﾚｰﾄ
1004 N210089344AA
PLATE ﾌ
ﾟﾚｰﾄ
1
005 N210088860AC
BRACKET ﾌﾞﾗｹｯﾄ
1
006 N610075857AB
FRAME ﾌﾚｰﾑ
1007 N210085321AB
BRACKET ﾌ
ﾞﾗｹｯﾄ
PXC-10X12X6
1
N001
N510036715AA
COLLAR ｶﾗ
-
PXXS-5-A
1
N002
N510036373AA
PLUNGER ﾌﾟﾗﾝｼﾞｬ
87CBBF4-8
1
N003
N510036716AA
SPACER ｽﾍﾟｰｻ
87FNCLCH-V12.0-D16.0-L
2
N004
N510036575AA
COLLAR ｶﾗ
-
3 842 526 564
2
N005
N510038683AA
BRACKET ﾌﾞﾗｹｯﾄ
3 842 529 298
2
N006
N510038681AA
BLOCK ﾌﾞﾛｯｸ
M178
FN610066189AA_02

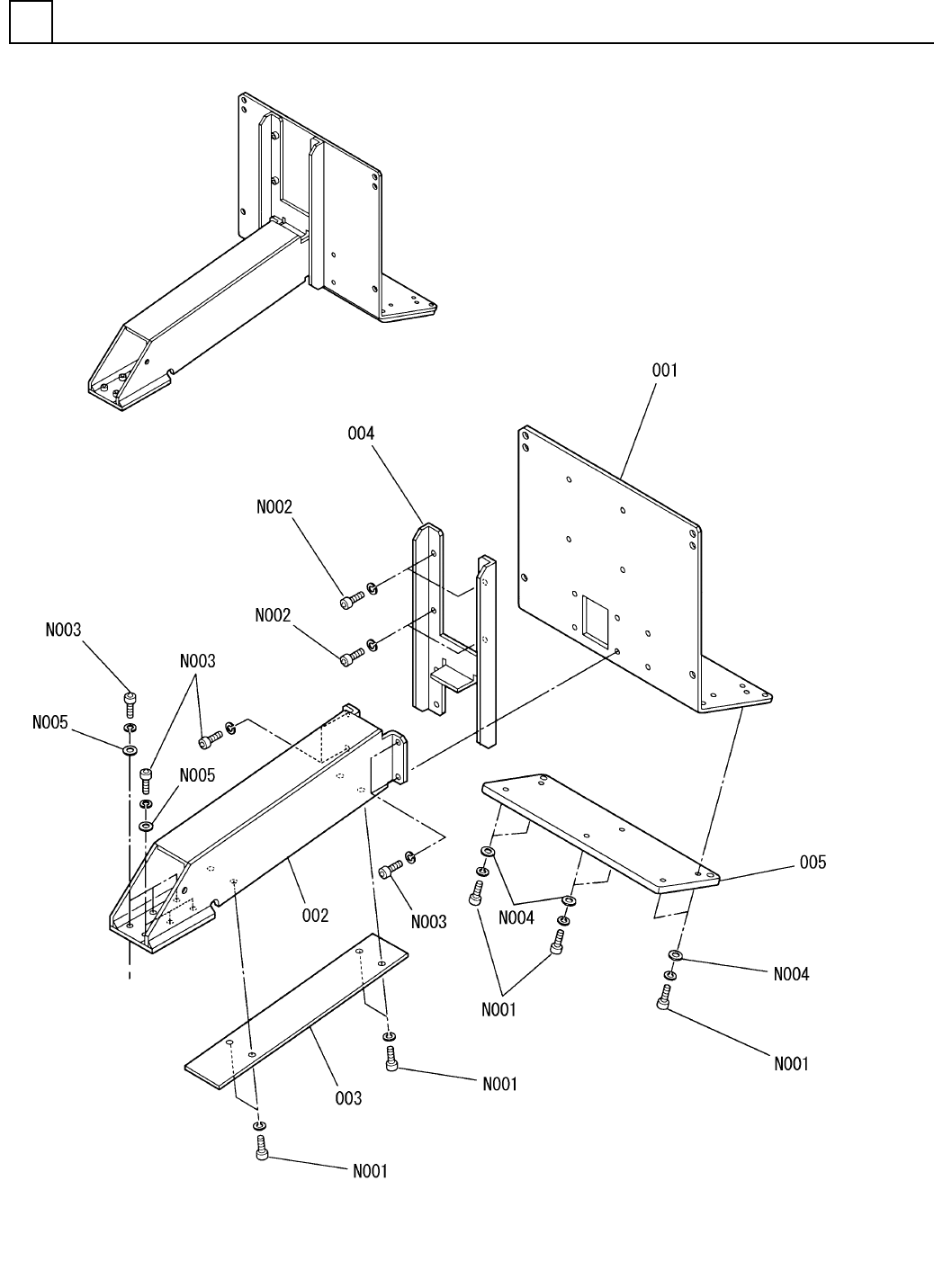

ﾘｱｺﾝｿｰﾙﾊﾟﾈﾙ取付部(120)
REAR CONSOLE PANEL ATTACHMENT SECT.(120)
20
FN610060942AA_01
