ｶﾊﾞｰ部(共通部2)
COVER SECT.(COMMON SECT.-2)
2
FN610070383AA_03-2
M15
   
          PART NAME
     REMARKS 
Q'TY
2
ｶﾊﾞｰ部(共通部2)
COVER SECT.(COMMON SECT.-2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品  番 個数 備 考
R
1
R
2
1002 N210105128AA
FRONT COVER(RIGHT) ﾌﾛﾝﾄｶﾊ
ﾞｰ(RIGHT)
1
003 N210105129AA
FRONT COVER ﾌﾛﾝﾄｶﾊﾞｰ
1
004 N210105127AA
FRONT COVER(LEFT) ﾌﾛﾝﾄｶﾊﾞｰ(LEFT)
1011 1046702086
GUIDE ｶﾞｲﾄﾞ
1016 N210086430AC
SIDE COVER(RIGHT) ｻｲﾄ
ﾞｶﾊﾞｰ(RIGHT)
1
017 N210086431AC
SIDE COVER(LEFT) ｻｲﾄﾞｶﾊﾞｰ(LEFT)
1
022 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
1026 3086239031
LABEL ﾗﾍ
ﾞﾙ
6027 N210071792AB
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
032 N210090530AA
SHAFT ｼｬﾌﾄ
1033 N210090532AA
COVER ｶﾊﾞｰ
D4NS-1BF S
1
N002
N510015338AA
SWITCH ｽｲｯﾁ
ST13.5
1
N004
KXF06F4AA00
JOINT ｼﾞｮｲﾝﾄ
XW1E-BV402MFR-TK2377 S
1
N005
N510011524AA
SWITCH ｽｲｯﾁ
C-100-B-2
2
N011
KXF01BNAA00
MAGNETIC CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ
ETW-2.5
2
N015
KXF01XAAA00
E-RING E
ﾘﾝｸﾞ
6 External toothed Ste
2
N024
N510018767AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M5-6H-4T A2J (Trivalen
4
N026
N510017862AA
NUT ﾅｯﾄ
M3X6-4.8 A2J (Trivalen
4
N027
N510018158AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M16
FN610070383AA_03-2

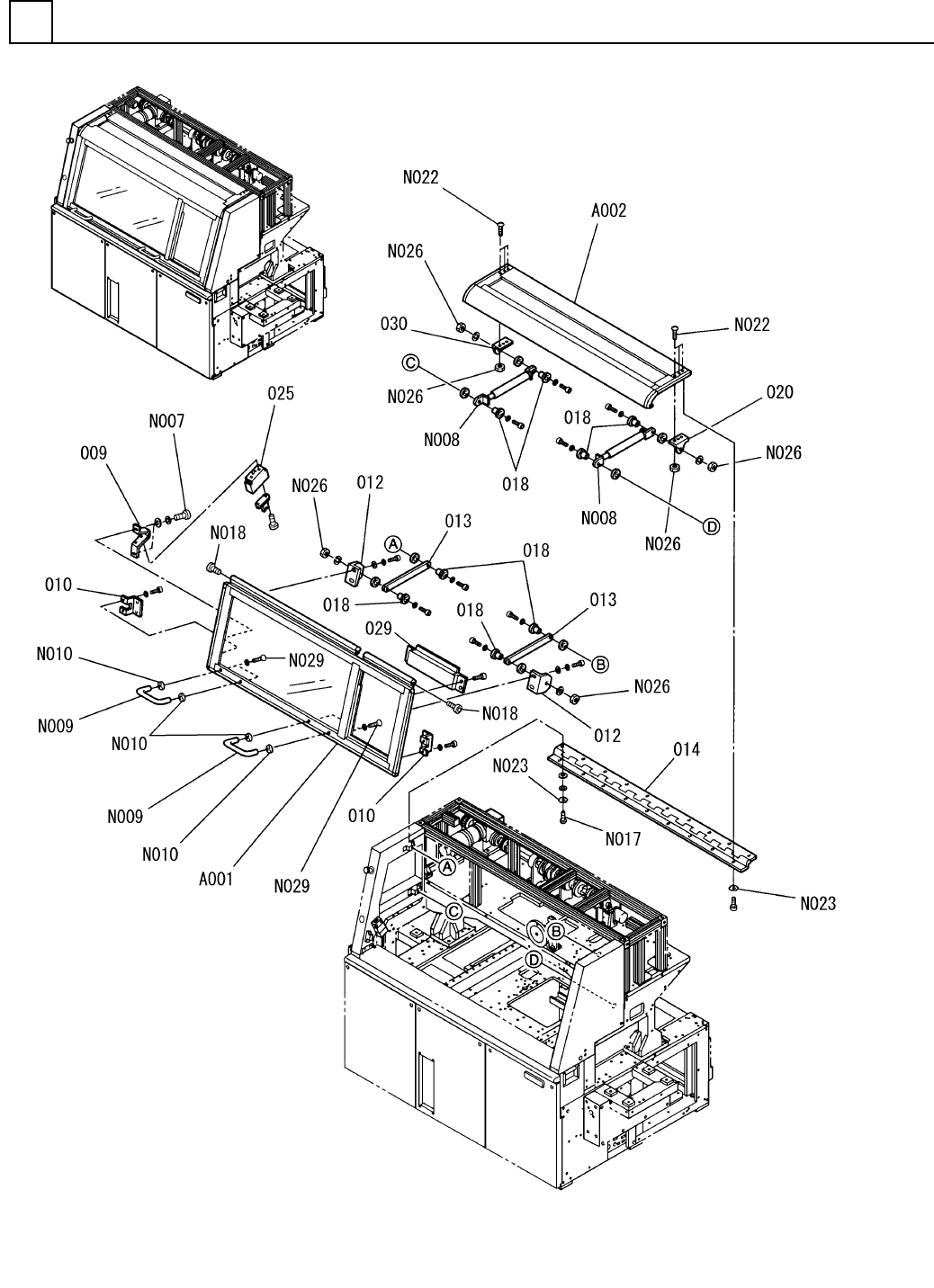

ｶﾊﾞｰ部(共通部3)
COVER SECT.(COMMON SECT.-3)
2
FN610070383AA_03-3
M17
