下部ｱﾝﾋﾞﾙ部 (2) UNDER ANVIL SECT.(2) 10 FN610052019AA _00-2 M109
PART NAME
REMARKS
Q'TY
10
下部ｱﾝﾋﾞﾙ部(1)
UNDER ANVIL SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 N610052019AA
UNDER ANVIL UNIT ｶﾌﾞ
ｱﾝﾋﾞﾙﾕﾆｯﾄ
1
001 104131200103
LEVER ﾚﾊﾞｰ
1
002 1041312002
PIN ﾋﾟﾝ
1003 1087109048
COLLAR ｶﾗｰ
1004 102460901701
COLLAR ｶﾗｰ
2
006 102460903701
PIN ﾋﾟﾝ
1
010 104131201001
SHAFT ｼｬﾌﾄ
2011 104131201101
COLLAR ｶﾗｰ
1016 1046912016
PIN ﾋ
ﾟﾝ
1
017 104131201703
LEVER ﾚﾊﾞｰ
1018 108711201804
FRAME ﾌﾚｰﾑ
1019 1087112019
PIN ﾋ
ﾟﾝ
1
020 104131202002
SPRING ﾊﾞﾈ
1
021 1087112021
PIN ﾋﾟﾝ
1024 104131202403
SPRING ﾊﾞﾈ
1026 104131202603
COLLAR ｶﾗｰ
1
027 108711202702
FLANGE(ANVIL) ﾌﾗﾝｼﾞ(ｱﾝﾋﾞﾙ)
2
033 1087112033
BUSHING ﾌﾞｯｼｭ
1035 1087112035
ROD ﾛｯﾄﾞ
1036 104131203601
SHAFT ｼｬﾌﾄ
1
037 N210065754AB
PLATE ﾌﾟﾚｰﾄ
1
043 1087112043
PIN ﾋﾟﾝ
1044 1087112044
PIN ﾋ
ﾟﾝ
1046 108711204603
UNDER ANVIL ｱﾝﾋﾞﾙ(
ｱﾝﾀﾞｰ)
1
048 1087112048
PLATE ﾌﾟﾚｰﾄ
1049 1087112049
BRACKET ﾌﾞﾗｹｯﾄ
1050 108711205002
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
051 108711205102
COVER ｶﾊﾞｰ
2
052 N210065753AA
SPACER ｽﾍﾟｰｻ
6X12,A-TYPE
2
N008
N986YYYY-510
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
NART10R-040010
2
N009
N531NART-016
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
10X30,m6A,STEEL
2
N011
XPK10A30FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
NGA-6075S
2
N014
N510022291AA
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ
8X7X18,STEEL,PARALLEL,
1
N016
XPA8L7F18
SUNK KEY ｼｽﾞﾐｷｰ
CF6RA-840178
4
N017
N531CF6R-015
CAM FOLLOWER ｶﾑﾌｫﾛｱ
6003ZZ
4
N018
XLC6003ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
12,STEEL,P.C
1
N020
XUB12FP
RETAINING RING C-TYPE C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
6201ZZ
1
N021
XLC6201ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
SSRW16
1
N024
N510021358AA
WASHER ｻ
ﾞｶﾞﾈ
K5B0806
4
N025
N510022568AA
BUSHING ﾌﾞｯｼｭ
M108
FN610052019AA_00-1

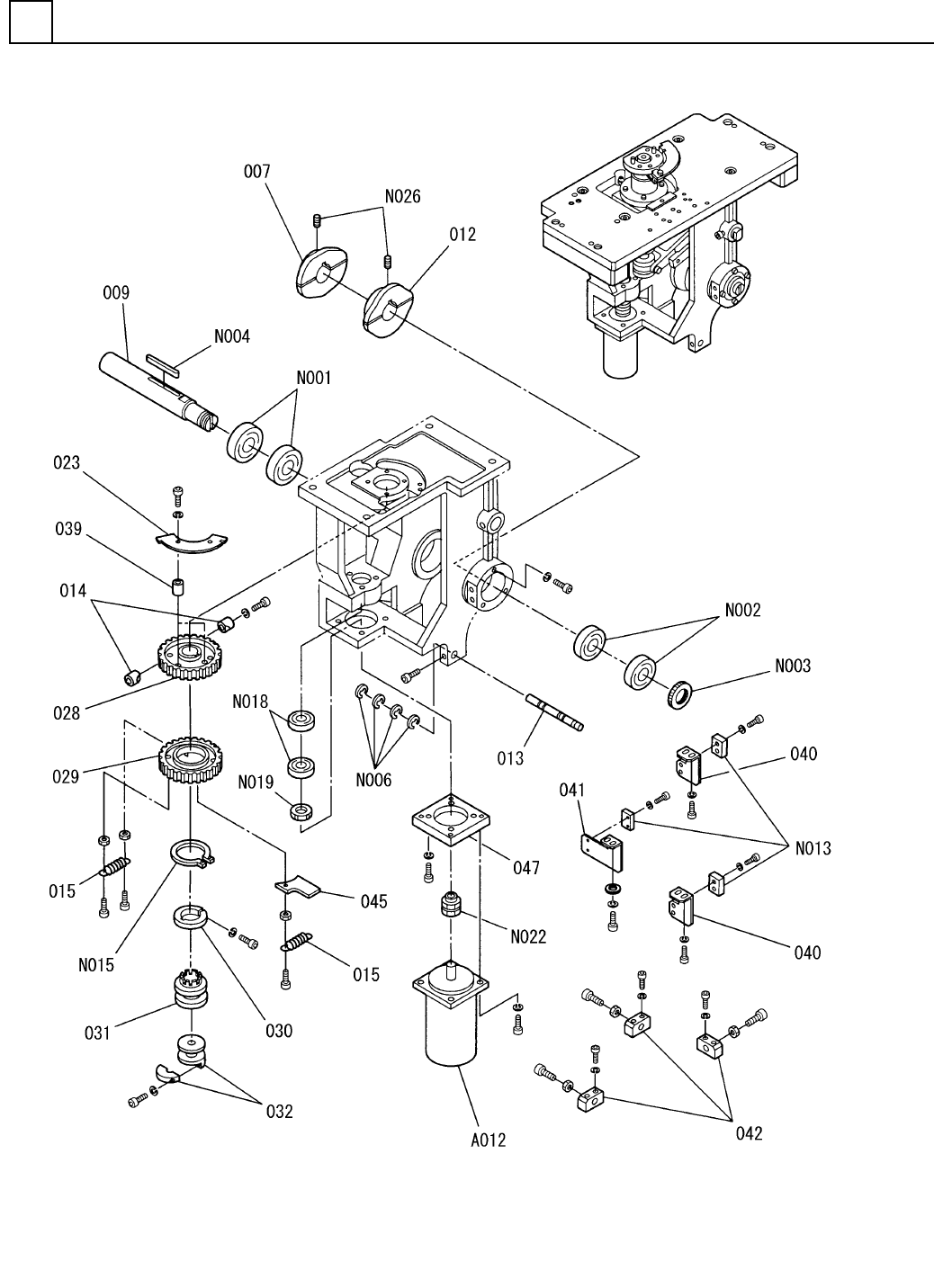

下部ｱﾝﾋﾞﾙ部(2)
UNDER ANVIL SECT.(2)
10
FN610052019AA_00-2
M109
PART NAME
REMARKS
Q'TY
10
下部ｱﾝﾋﾞﾙ部(2)
UNDER ANVIL SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1007 108711200704
CAM ｶﾑ
1
009 108711200902
SHAFT ｼｬﾌﾄ
1
012 108711201204
CAM ｶﾑ
1013 1041312013
SHAFT ｼｬﾌﾄ
1014 104131201402
COTTER ｺｯﾀ
2
015 1041312015
SPRING ﾊﾞﾈ
1
023 1087112023
DOG FOR SENSOR ｾﾝｻﾄﾞｸﾞ
1028 104131202801
GEAR ｷ
ﾞﾔｰ
1029 104131202901
GEAR ｷ
ﾞﾔｰ
1
030 N210027746AA
RING ﾘﾝｸﾞ
1031 1087112031
NUT ﾅｯﾄ
1032 1083513040
GUIDE ｶ
ﾞｲﾄﾞ
2
039 1041312039
SPACER ｽﾍﾟｰｻ
2
040 108711204001
BRACKET ﾌﾞﾗｹｯﾄ
1041 1087112041
BRACKET ﾌﾞﾗｹｯﾄ
3042 1015808003
BLOCK ﾌ
ﾞﾛｯｸ
1
045 104131204501
PLATE ﾌﾟﾚｰﾄ
1
047 1046912047
BRACKET ﾌﾞﾗｹｯﾄ
(MSMD082PJA) S
1
A012
N610052039AA
MOTOR ﾓｰﾀ
6206ZZ
2
N001
XLC6206ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
6205ZZ
2
N002
XLC6205ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
FU05SC
1
N003
KXF0239AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
8X7X63,STEEL,PARALLEL,
1
N004
XPA8L7F63
SUNK KEY ｼｽ
ﾞﾐｷｰ
6,STEEL,P.C
4
N006
XUC6FP
RETAINING RING E-TYPE E ｶﾞ
ﾀﾄﾒﾜ
EE-SPX403+EE-1006
3
N013
N310EESP-051
SENSOR ｾﾝｻ
50,STEEL,P.C
1
N015
XUB50FP
RETAINING RING C-TYPE, SHAF C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
6003ZZ
2
N018
XLC6003ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
FU03SC
1
N019
N510003047AA
NUT ﾅｯﾄ
N-14-19
1
N022
N644N1419
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
M8X10-45H A2J (Trivale
2
N026
N510018455AA
SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M110
FN610052019AA_00-2
