ﾛｰﾀﾞ･ｱﾝﾛｰﾀ ﾞ部(ﾛｰﾀﾞｱｰﾑ 連動部) LOADER & UN LOADER SECT.(L OADER ARM SWIN G SECT.) 4 FN610066187AB _00 M75

100%1 / 356
   
          PART NAME
     REMARKS 
Q'TY
4
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ｱﾝﾛｰﾀﾞｶﾊﾞｰ部)
LOADER & UNLOADER SECT.(UNLOADER COVER SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品  番 個数 備 考
R
1
R
2
1 N610059163AA
UNLOADER COVER UNIT ｱﾝﾛｰﾀ
ﾞｶﾊﾞｰﾕﾆｯﾄ
1
001 N210071462AA
COVER ｶﾊﾞｰ
4
002 KXFB012QA00
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
1003 N210071272AE
COVER ｶﾊﾞｰ
1004 N210086100AB
COVER ｶﾊ
ﾞｰ
1
005 N210071444AC
COVER ｶﾊﾞｰ
1
006 N210071461AC
COVER ｶﾊﾞｰ
1007 N210071363AC
COVER ｶﾊ
ﾞｰ
1008 N210105969AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
009 1087105904
REAR BRACKET ﾌﾞﾗｹｯﾄ(REAR)
1010 N210048950AA
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
1011 N210048951AA
SPACER ｽﾍ
ﾟｰｻ
1
012 1087102064
BRACKET ﾌﾞﾗｹｯﾄ
1
013 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
1014 N210071471AB
BRACKET ﾌﾞﾗｹｯﾄ
1015 N210071283AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
B-1229
2
N001
KXF0A4KAA00
HINGE ﾋﾝｼﾞ
M4X10-4.8 A2J (Trivale
8
N002
N510018164AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M4X10-4.8 A2J (Trivale
2
N003
N510018257AA
PAN HEAD SCREW ﾄﾗｽｺﾈｼﾞ
AP-2(black)
1
N004
KXF08CUAA00
DRAWER PULL ﾄｯﾃ
D4NS-1BF S
1
N006
N510015338AA
SWITCH ｽｲｯﾁ
ST13.5
1
N008
KXF06F4AA00
JOINT ｼﾞｮｲﾝﾄ
M5X10-4.8 A2J (Trivale
10
N009
N510018284AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
5 External toothed Ste
18
N010
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻ
ﾞｶﾞﾈ
6 External toothed Ste
4
N011
N510018767AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
C-30-CS-8
3
N012
KXF07GDAA00
RUBBER CUSHION ｺﾞﾑｸｯｼｮﾝ
TE-024
1
N013
N348TE024T
BUSHING ﾌ
ﾞｯｼｭ
M74
FN610059163AA_04

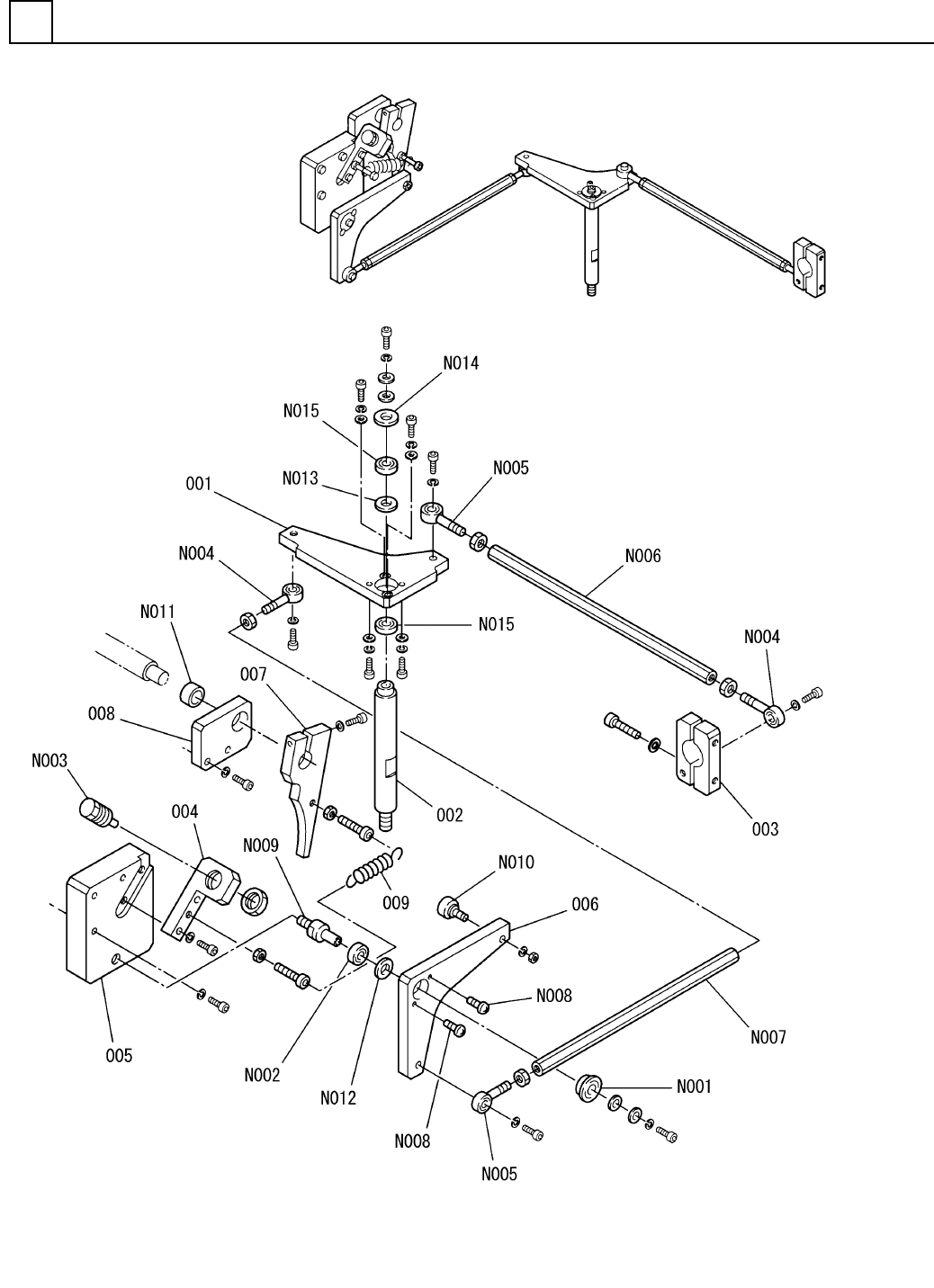

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞｱｰﾑ連動部)
LOADER & UNLOADER SECT.(LOADER ARM SWING SECT.)
4
FN610066187AB_00
M75
   
          PART NAME
     REMARKS 
Q'TY
4
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞｱｰﾑ連動部)
LOADER & UNLOADER SECT.(LOADER ARM SWING SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品  番 個数 備 考
R
1
R
2
1 N610066187AB
LOADER ARM SWING UNIT ﾛｰﾀﾞ
ｱｰﾑﾚﾝﾄﾞｳﾕﾆｯﾄ
1
001 108711600103
LEVER ﾚﾊﾞｰ
1
002 N210066287AA
PIN ﾋﾟﾝ
1003 N210066288AA
LEVER ﾚﾊﾞｰ
1004 108711600402
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
005 108711600502
BRACKET ﾌﾞﾗｹｯﾄ
1
006 N210066306AC
LEVER ﾚﾊﾞｰ
1007 N210082121AA
CAM ｶﾑ
1008 108711600801
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
009 1087116009
SPRING ﾊﾞﾈ
F688AZZ1
1
N001
KXF0DYPHA00
BEARING ﾍﾞｱﾘﾝｸﾞ
688AZZ1
1
N002
KXF0E2FJA00
BEARING ﾍﾞ
ｱﾘﾝｸﾞ
RBQ1604
1
N003
KXF0DYM0A00
SHOCK-ABSORBER ｼｮｯｸｱﾌﾞｿｰﾊﾞｰ
N0S4T
2
N004
N533N0S4T
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
NOS4TL
2
N005
N533N0S4TL
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
87LBMFN4-206
1
N006
N510023244AA
ROD ﾛｯﾄ
ﾞ
87LBMFN4-184
1
N007
N510023243AA
ROD ﾛｯﾄﾞ
M3X6-4.8 A2J (Trivalen
2
N008
N510018253AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
87FXBB8-12-F9-MA4
1
N009
N510034923AA
PIN ﾋﾟﾝ
CF6R-A
1
N010
N531CF6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
K5B1410
1
N011
N510022573AA
BUSHING ﾌﾞｯｼｭ
RB012016005
1
N012
N510034926AA
SHIM ｼﾑ
RB020024005
1
N013
N510034924AA
SHIM ｼﾑ
87FWSSB-D20.0-V5.0-T3.
1
N014
N510033408AA
WASHER ｻﾞ
ｶﾞﾈ
6802ZZ
2
N015
KXF0E3LAA00
BEARING ﾍﾞｱﾘﾝｸﾞ
M76
FN610066187AB_00
