J.W.ﾍｯﾄﾞ部 (4) J.W.HEAD SE CT.(4) 26 FN610052080AA _00-4 M241
PART NAME
REMARKS
Q'TY
26
J.W.ﾍｯﾄﾞ部(3)
J.W.HEAD SECT.(3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1114 104132011601
BRACKET ﾌ
ﾞﾗｹｯﾄ
3
115 1020310301
PIN ﾋﾟﾝ
1
116 104132012101
BRACKET ﾌﾞﾗｹｯﾄ
1122 1083520026
WHEEL ﾎｲｰﾙ
1128 102031007902
COLLAR ｶﾗｰ
1
129 108352000901
ROLLER ﾛｰﾗ
7
139 1041420054
PIN ﾋﾟﾝ
2140 1041420055
OFFSET PIN ｵﾌｾｯﾄﾋ
ﾟﾝ
9141 1041420056
ROLLER ﾛｰﾗ
F699ZZ
1
N006
KXF08ZCAA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
MR63ZZ
21
N007
KXF05XYAA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
2,STEEL,P.C
12
N008
XUC2FP
RETAINING RING E-TYPE E
ｶﾞﾀﾄﾒﾜ
M4-6H-4T A2J (Trivalen
3
N009
N510017859AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M3-6H-4T A2J (Trivalen
12
N010
N510017849AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5-6H-4T A2J (Trivalen
1
N011
N510017862AA
NUT ﾅｯﾄ
6901ZZ
1
N020
XLC6901ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
M4X14-45H A2J (Trivale
3
N022
N510018429AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M3X4-45H A2J (Trivalen
3
N024
N510018392AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M240
FN610052080AA_00-3

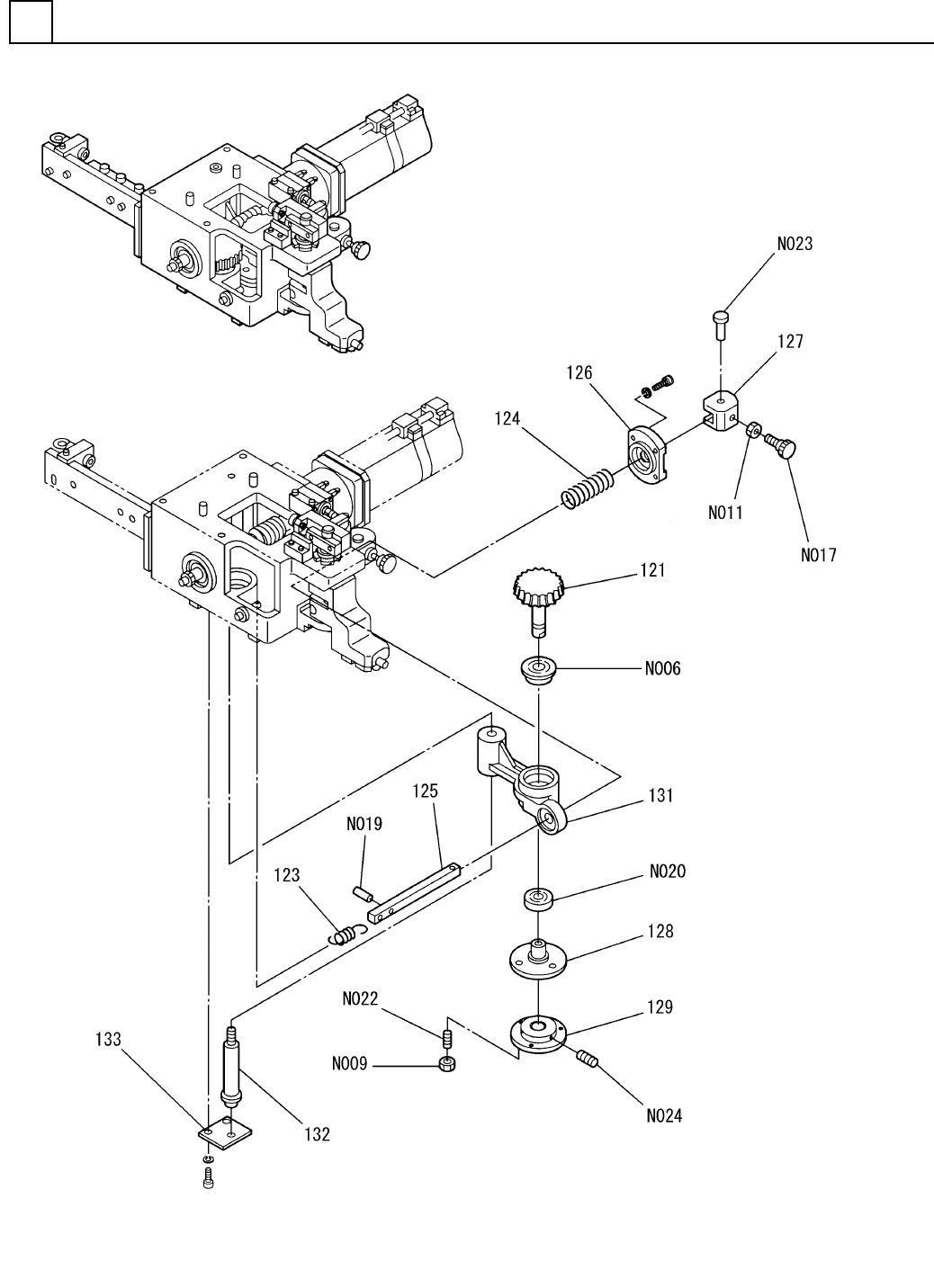

J.W.ﾍｯﾄﾞ部(4)
J.W.HEAD SECT.(4)
26
FN610052080AA_00-4
M241
PART NAME
REMARKS
Q'TY
26
J.W.ﾍｯﾄﾞ部(4)
J.W.HEAD SECT.(4)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1121 1083520027
WHEEL ﾎｲｰﾙ
1
123 1041420045
SPRING ﾊﾞﾈ
1
124 1020310058
SPRING ﾊﾞﾈ
1125 1046920128
SHAFT ｼｬﾌﾄ
1126 104142000205
FLANGE ﾌﾗﾝｼ
ﾞ
1
127 104142001803
BLOCK ﾌﾞﾛｯｸ
1
128 102031007902
COLLAR ｶﾗｰ
1129 108352000901
ROLLER ﾛｰﾗ
1131 1046920134
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
132 1046920135
SHAFT ｼｬﾌﾄ
1133 1041420016
PLATE ﾌﾟﾚｰﾄ
F699ZZ
1
N006
KXF08ZCAA00
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
M4-6H-4T A2J (Trivalen
3
N009
N510017859AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5-6H-4T A2J (Trivalen
1
N011
N510017862AA
NUT ﾅｯﾄ
A-1176-18
1
N017
N980A117618
KNOB ﾂﾏﾐ
3X16,m6A,STEEL
1
N019
XPJ3A16FW
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
6901ZZ
1
N020
XLC6901ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M4X14-45H A2J (Trivale
3
N022
N510018429AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
87CCG4-16.0
1
N023
N510035950AA
PIN ﾋﾟﾝ
M3X4-45H A2J (Trivalen
3
N024
N510018392AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M242
FN610052080AA_00-4
