Slide 33 LPP T arget Material and Laser W avelength Opt ions CO 2 Laser w ith Sn target w as selected for industrializa tion in 2006 Public

100%1 / 70
Slide 32
EUV Spectra of Laser Produced Sn Plasma
10 11 12 13 14 15 16 17 18 19 20
0.0
0.2
0.4
0.6
0.8
1.0
EUV spectrum
Intensity (arb. u.)
Wavelength (nm)
EUV Spectrum and MLM Reflectivity
0
20
40
60
80
100
Reflectivity (%)
MLM reflectivity
Peak of EUV spectrum matches the MoSi
multilayer reflectivity band at 13.5 nm
6 8 10 12 14 16 18 20 22
0
1
2
3
4
5
6
Sn, 355nm
Sn, 1064nm
EUV mirror
Signal, (a.u.)
Wavelength, (nm)
EUV spectrum with CO
2
Laser
at 10.6 mm
EUV spectrum with Nd:YAG Laser
at 1064 nm and 355 nm
Public
Slide 33
LPP Target Material and Laser Wavelength Options
CO
2
Laser with Sn target was selected for industrialization in 2006
Public

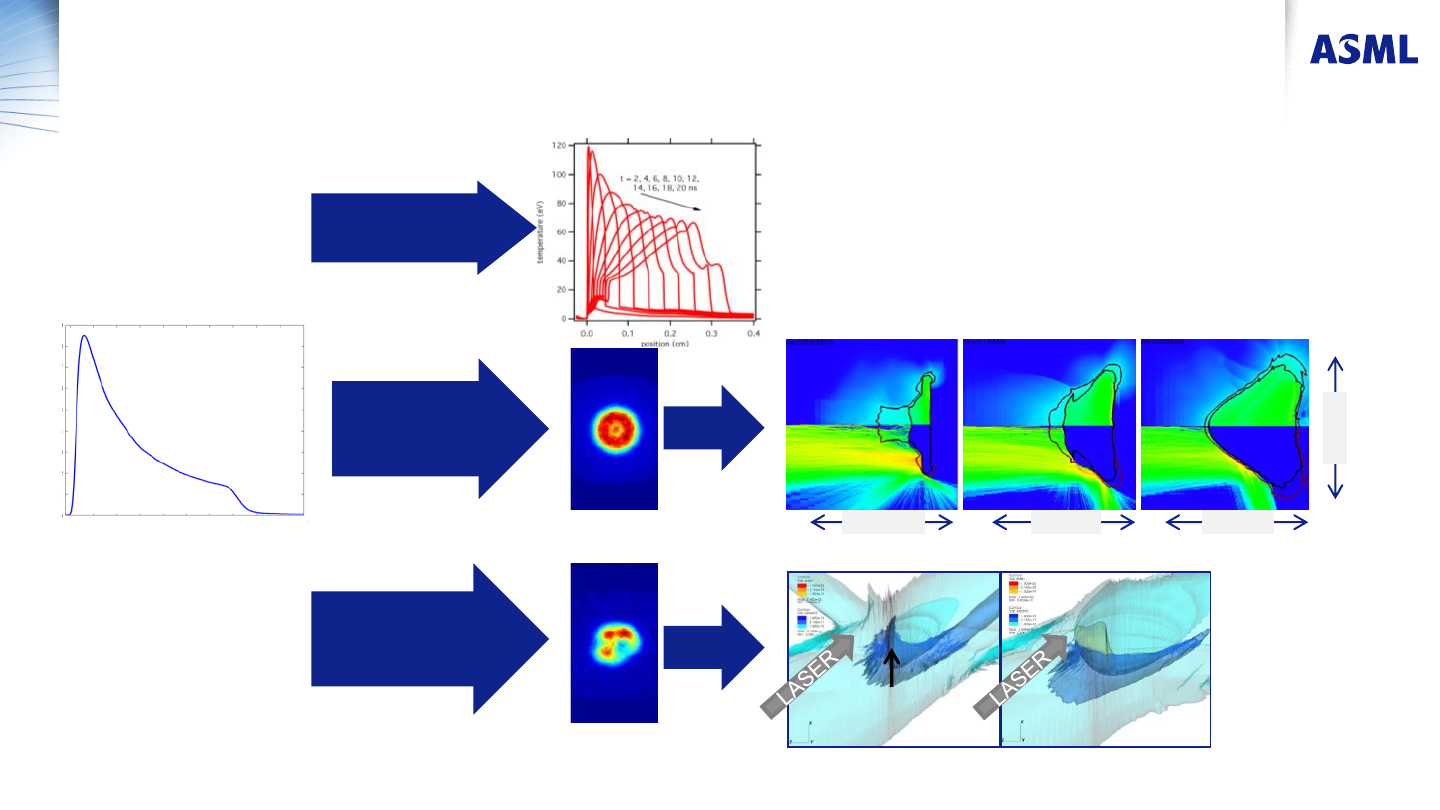

Plasma simulation capabilities
Main-pulse modeling using HYDRA
Main-pulse
shape
1D simulations are fast and useful
for problems that require rapid
feedback and less accuracy
3D:
+ real asymmetric
profile
2D and 3D
simulations are run
for the full duration
of the Main pulse.
Results include
temperature,
electron density,
spectral emission,
etc.
Target
Sn target using a real
irradiance distribution
1D:
real pulse shape
2D:
+ symmeterized
beam profile
Electron density (top half) with laser light (bottom half)
500μm500μm500μm
500μm
Power (arb. Units)
Time
