EUV Collection

Debris management

Slide 50

Public

Slide 51

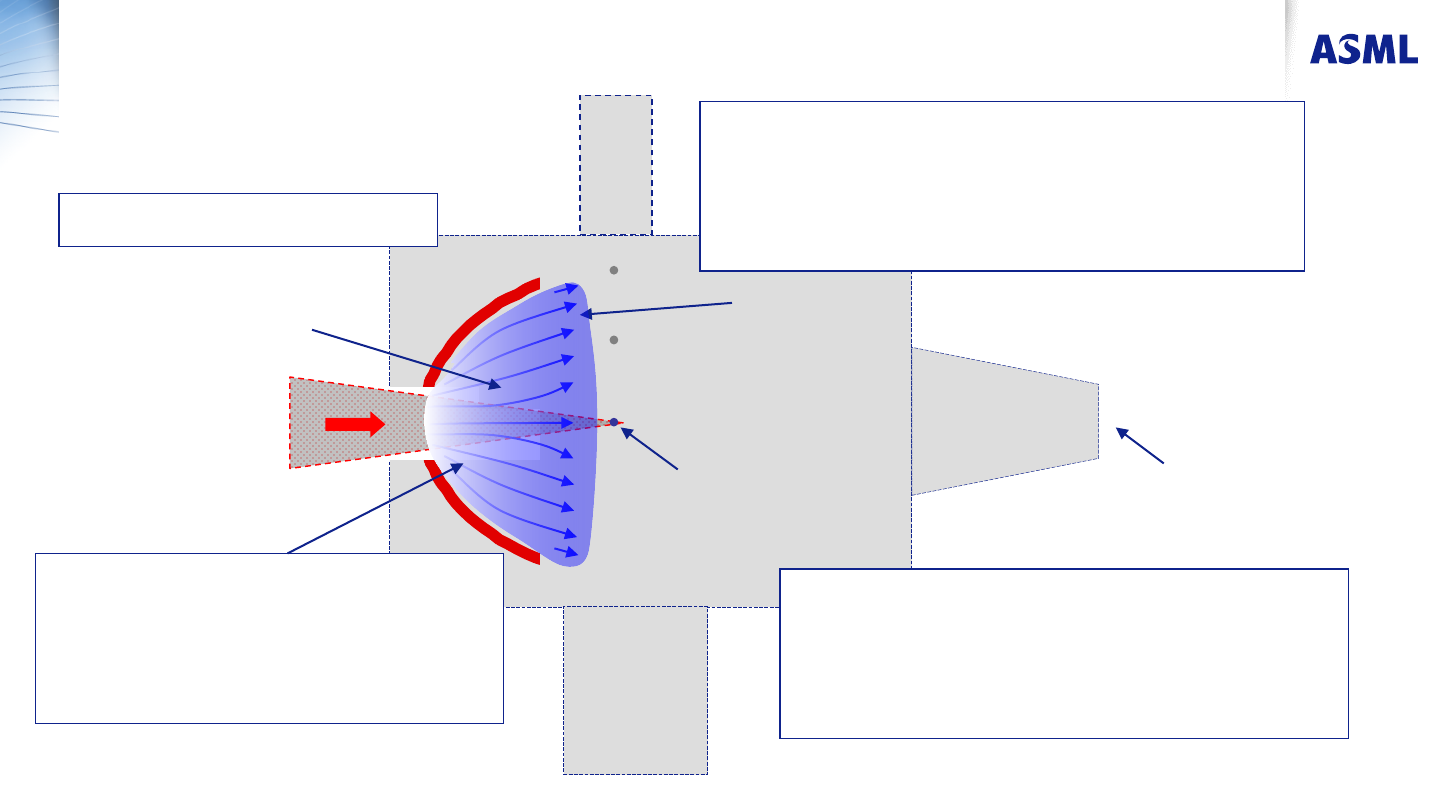

Collector Protection by Hydrogen Flow

Sn droplet /

plasma

H

2

flow

Reaction of H radicals with Sn

to form SnH

4

, which can be

pumped away.

Sn (s) + 4H (g) → SnH

4

(g)

• Hydrogen buffer gas (pressure

~100Pa) causes deceleration of ions

• Hydrogen flow away from collector

reduces atomic tin deposition rate

Laser beam

Intermediate

Focus

Sn

catcher

DG

EUV collector

• Vessel with vacuum pumping to

remove hot gas and tin vapor

• Internal hardware to collect micro

particles
