Slide 48 Increase of droplet spacing Larger separation between the dro plets needed for higher pulse energie s Droplet spacing of 1.5 mm demonstra ted at 80 kHz 30 40 50 60 70 80 90 100 110 120 0 .0 0 .5 1 .0 1 .5 2 .0 2…
Slide 47
Droplet Generator: Principle of Operation
Large separation between the droplets by special modulation

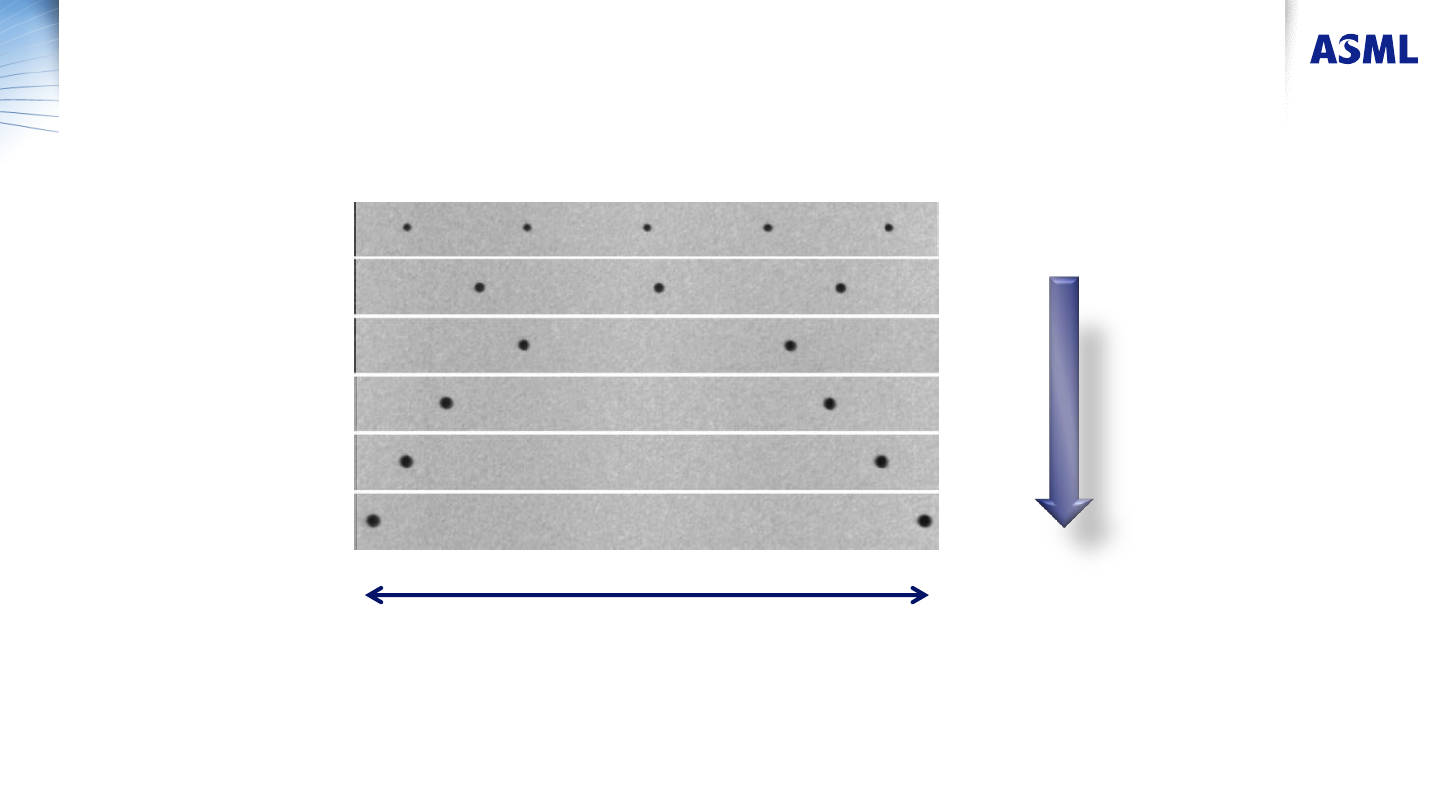

Tin droplets at 80 kHz and at different applied pressures.
Images taken at a distance of 200 mm from the nozzle
1.5 mm
Increasing
Droplet Generator
Pressure
Public
Slide 48
Increase of droplet spacing
Larger separation between the droplets needed for higher pulse energies
Droplet spacing of 1.5 mm demonstrated at 80 kHz
30 40 50 60 70 80 90 100 110 120
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0

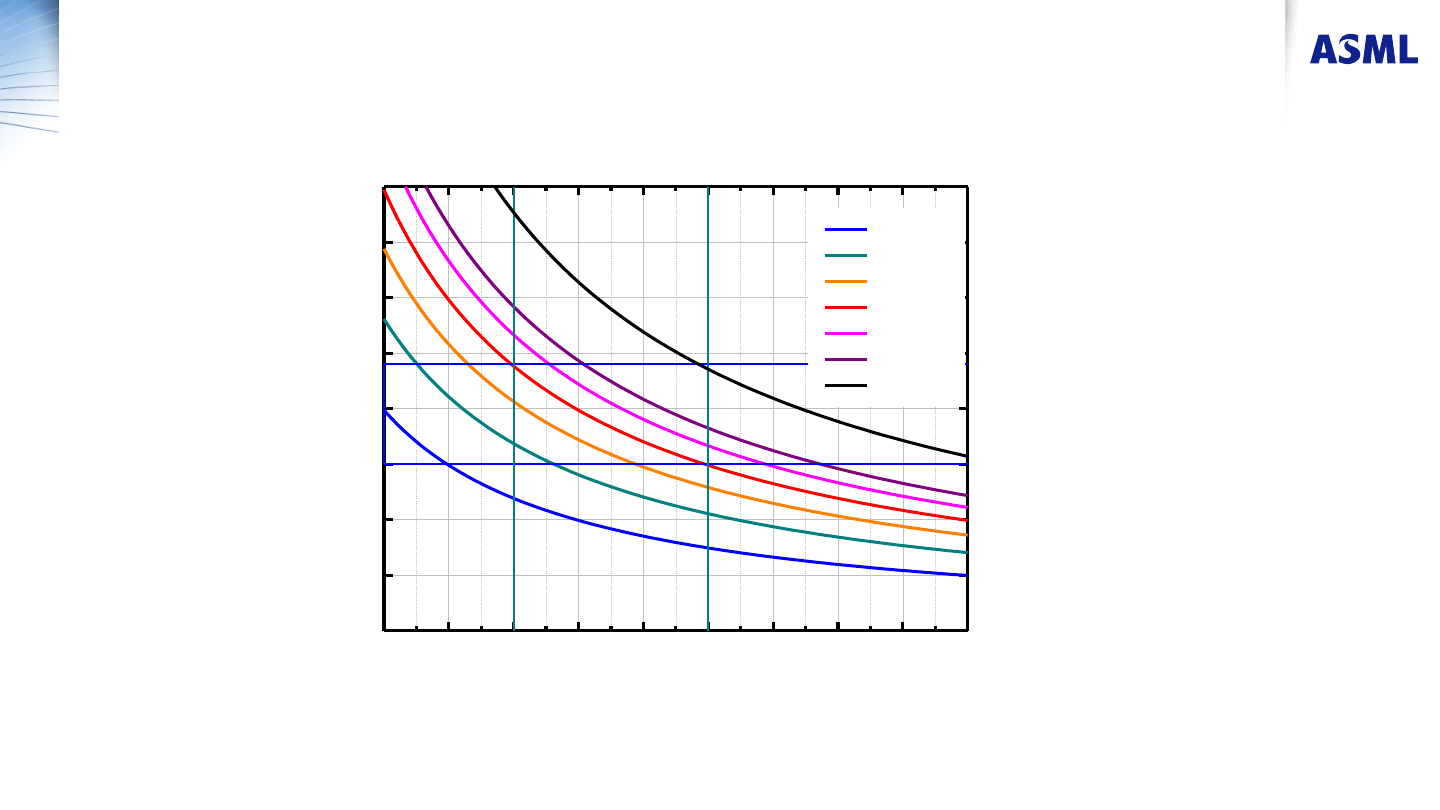

Droplet Spacing vs Frequency vs Pressure
14 MPa
28 MPa
42 MPa
56 MPa
70 MPa
84 MPa
140 MPa
Droplet-to-droplet distance, mm
Frequency, kHz
Public
Slide 49

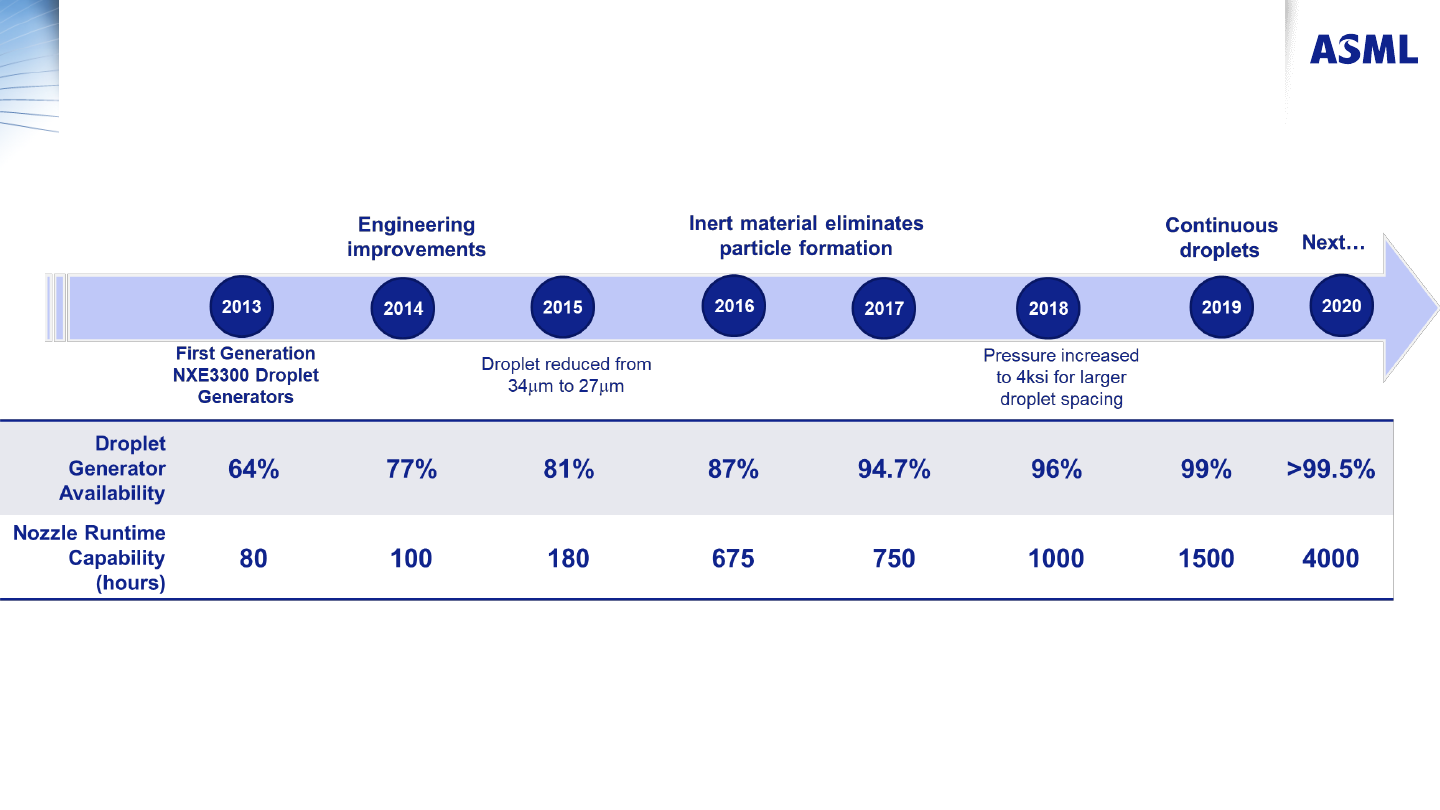

Droplet generator history
Improvements in performance and availability
Public
