4OM-1840
1-4-241604-001
Nozzle Change Cam Face (Upper Side)
Every 3 Months Cleaning and Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 5 minutes
Center Spline
Every 3 Months Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 4 minutes
Cam Followers
Every 3 Months Cleaning and Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 5 minutes
Filter holder O-ring (15 locations x 2 pcs)
Filter
O-ring
Vacuum Filters (15 locations)
Every 3 Months Change
Required Time: 30 minutes
Pull up vacuum filter holder with the filter attachment/
detachment jig. Replace 2 vacuum filters as shown in
the figure below.
Note
Use commercially available tweezers
for filter replacement.
When replacing filter / Lubrication /
Required time: 30 minutes per head
(DAPHNE GREASE MP No. 1)
Apply grease to the filter holder O-rings.
(2 locations above)
Fig. 4A4-31A
4.7 Head Section
4OM-1840
1-4-251604-001

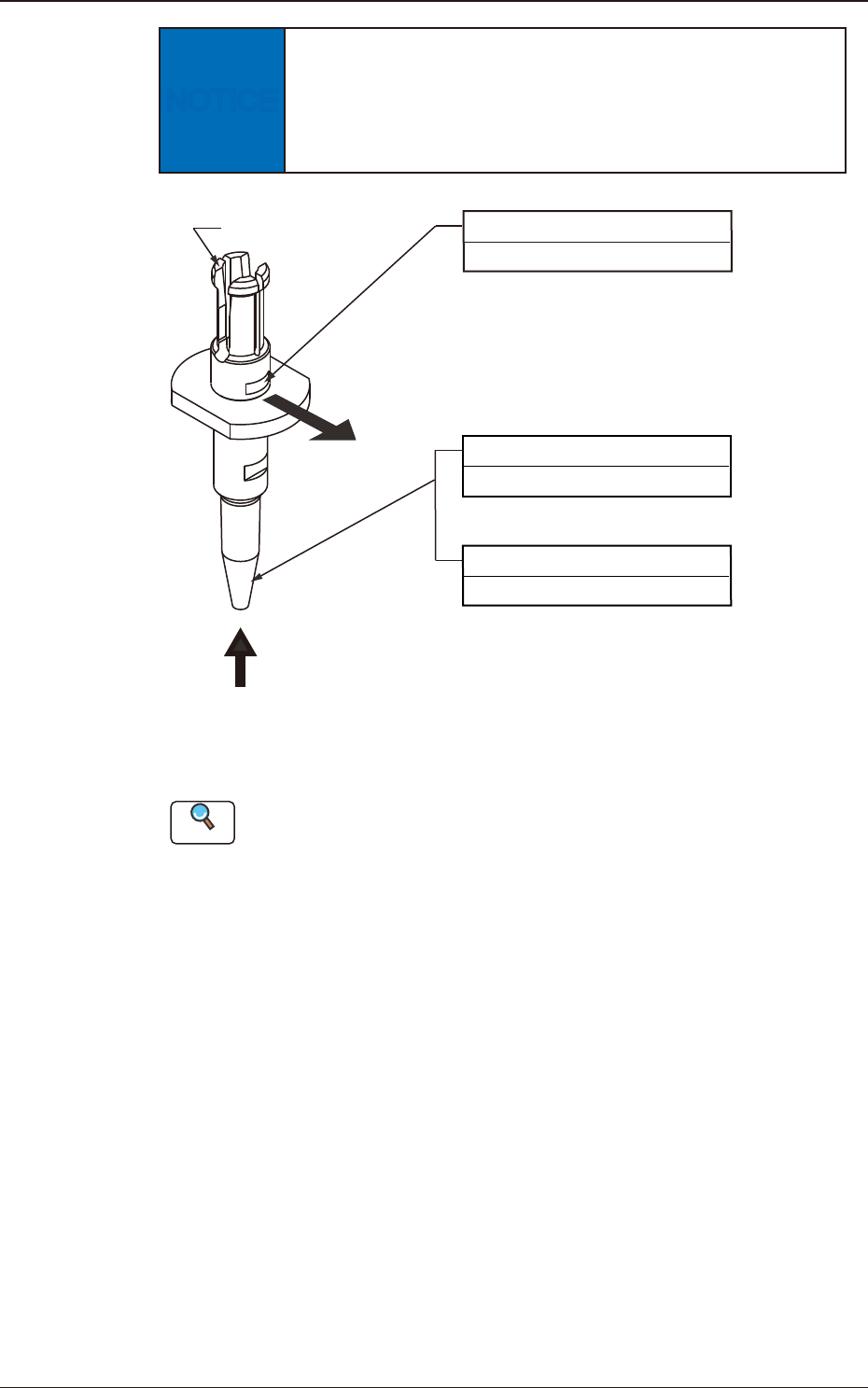

NOTICE
When the air-blowing is to be performed to the nozzle,
make sure to start it from the nozzle end section.
If the air-blowing is started from the clamp claw section, the
clamp claw might be damaged.
Vacuum Nozzle
Every 3 Months Inspection
Vacuum Nozzle
Every Week Cleaning
Air Blowing from the Tip
Clamp Claw
Nozzle Filter
Every Week Change
Fig. 4A4-32
Reference
Refer to "5. Vacuum Nozzle Cleaning Procedure" for the vacuum nozzle
cleaning.
4.7 Head Section
4OM-1840
1-4-261604-001
4.7.1 Nozzle Up/Down Ball Screw (NL-axis) Cleaning and Oiling
Cycle : Every 3 Months (Required Time : 10 minutes)
Grease : DAPHNE GREASE MP No.1
Nozzle U/D Ball Screw
(NL Axis)
Fig. 4A4-33
Procedure
(1) Wipe old grease out using a rag.
(2) Apply grease in the ball screw groove slightly using the syringe.
Note
Use No. 19 (brown) nozzle.
No.19
Fig. 4A4-34
4.7 Head Section
