4OM-1840 1-4-23 1604-001 4.7 Head Section Diffusion Plate Every Month Cleaning Required Time: 2 minutes Linear Measure Sensors (Light Emitter and Receiver) Every Day Cleaning Required Time: 5 minutes Nozzle U/D Ball Scre…
4OM-1840
1-4-221604-001

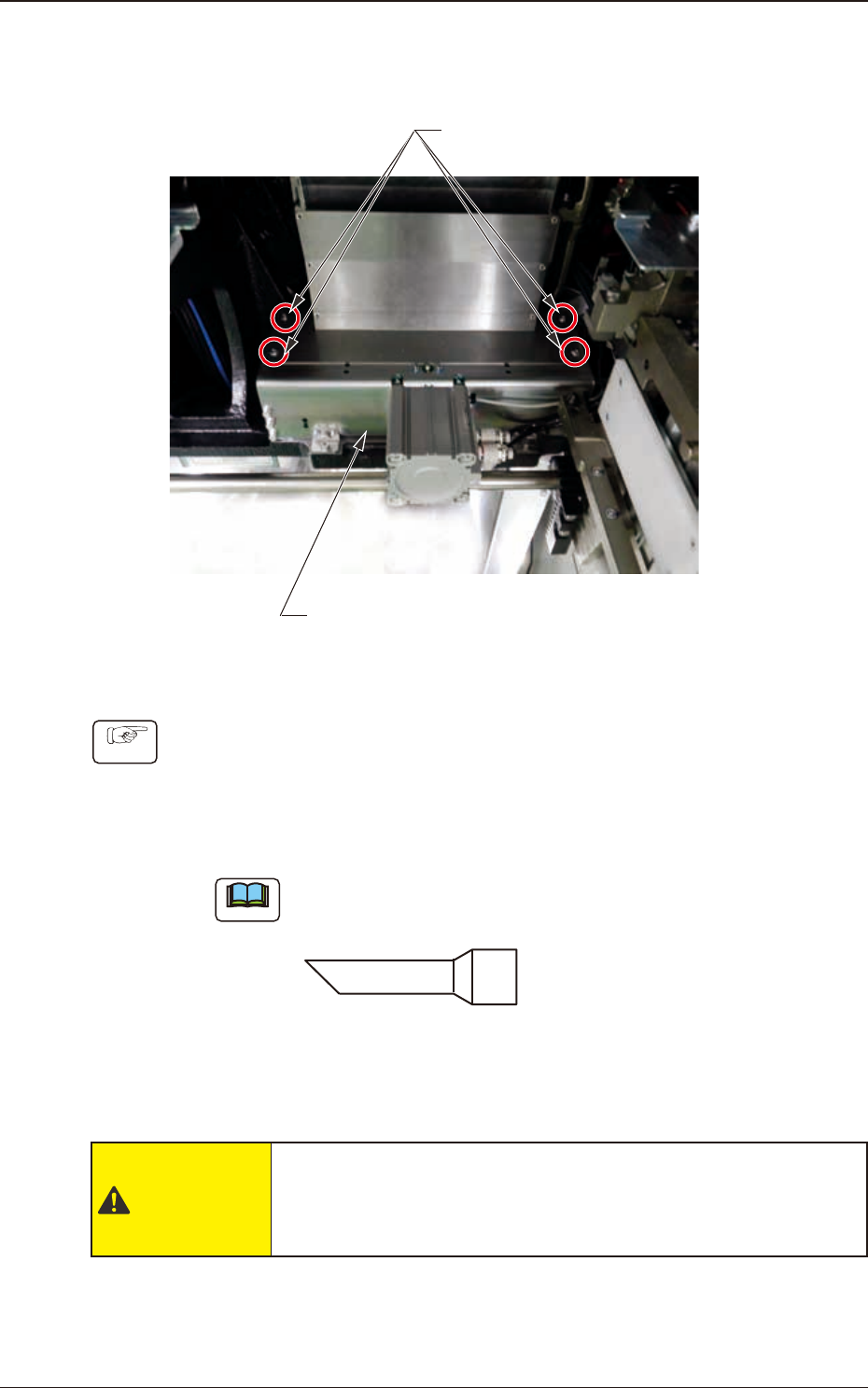

4.6.2 Cutter Unit Inside Oiling
Cycle : Every 3 Months (Required Time : 10 minutes)
Cutter Unit
Screw (4 Locations)
Fig. 4A4-28
Procedure
(1) Remove the front cover.
(2) Remove the cutter unit guide cover.
(3) Clean the debris and dust in the cutter unit using a vacuum cleaner.
Note
Use a vacuum cleaner with a narrow air opening in the nozzle.
Narrow Air Opening in Nozzle End
(Recommended)
Fig. 4A4-29
CAUTION
After making sure that the air supply has been stopped and the
cutter blades are closed, start maintenance.
During maintenance, do not touch the cutter blade.
4.6 Cutter Section
4OM-1840
1-4-231604-001

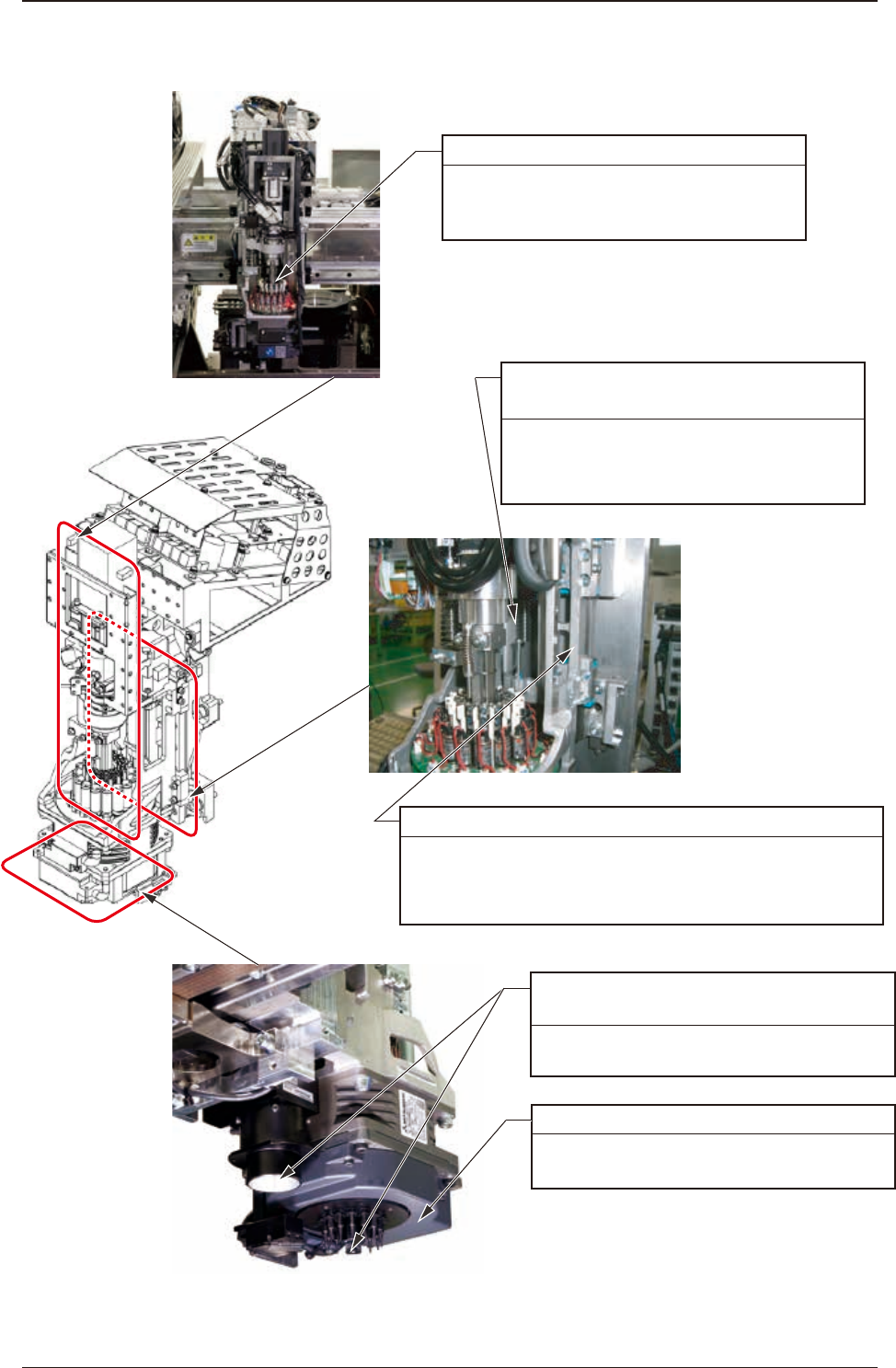

4.7 Head Section
Diffusion Plate
Every Month Cleaning
Required Time: 2 minutes
Linear Measure Sensors
(Light Emitter and Receiver)
Every Day Cleaning
Required Time: 5 minutes
Nozzle U/D Ball Screw (NL Axis)
Every 3 Months Cleaning and Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 5 minutes
Head U/D Ball Screw
(high-speed multi-purpose head)
Every 3 Months Cleaning and Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 5 minutes
Head U/D Linear Guide (high-speed multi-purpose head)
Every 3 Months Cleaning and Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 5 minutes
Fig. 4A4-30
4.7 Head Section
4OM-1840
1-4-241604-001

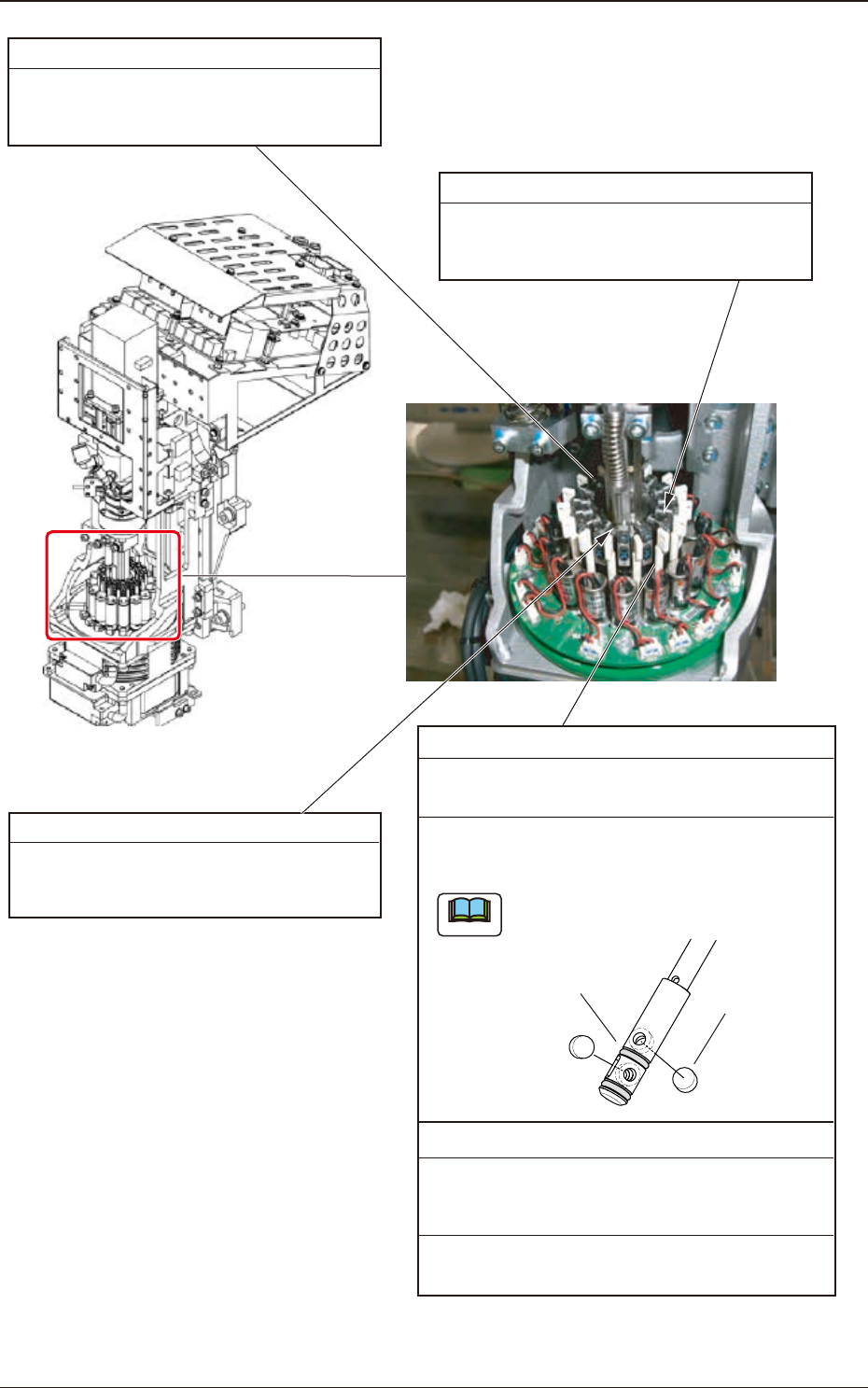

Nozzle Change Cam Face (Upper Side)
Every 3 Months Cleaning and Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 5 minutes
Center Spline
Every 3 Months Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 4 minutes
Cam Followers
Every 3 Months Cleaning and Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 5 minutes
Filter holder O-ring (15 locations x 2 pcs)
Filter
O-ring
Vacuum Filters (15 locations)
Every 3 Months Change
Required Time: 30 minutes
Pull up vacuum filter holder with the filter attachment/
detachment jig. Replace 2 vacuum filters as shown in
the figure below.
Note
Use commercially available tweezers
for filter replacement.
When replacing filter / Lubrication /
Required time: 30 minutes per head
(DAPHNE GREASE MP No. 1)
Apply grease to the filter holder O-rings.
(2 locations above)
Fig. 4A4-31A
4.7 Head Section
