4OM-1840 1-4-15 1604-001 4.4.1 W arm Gear (T wo Locations) Oiling Cycle : Every 3 Months (Required Time : 2 minutes) Grease : MOLYNOC GREASE AP1 Worm Gear Fig. 4A4-18 Procedure Apply a small amount of new grease to the w…
4OM-1840
1-4-141604-001
4.4 Feeder Base Driving Section

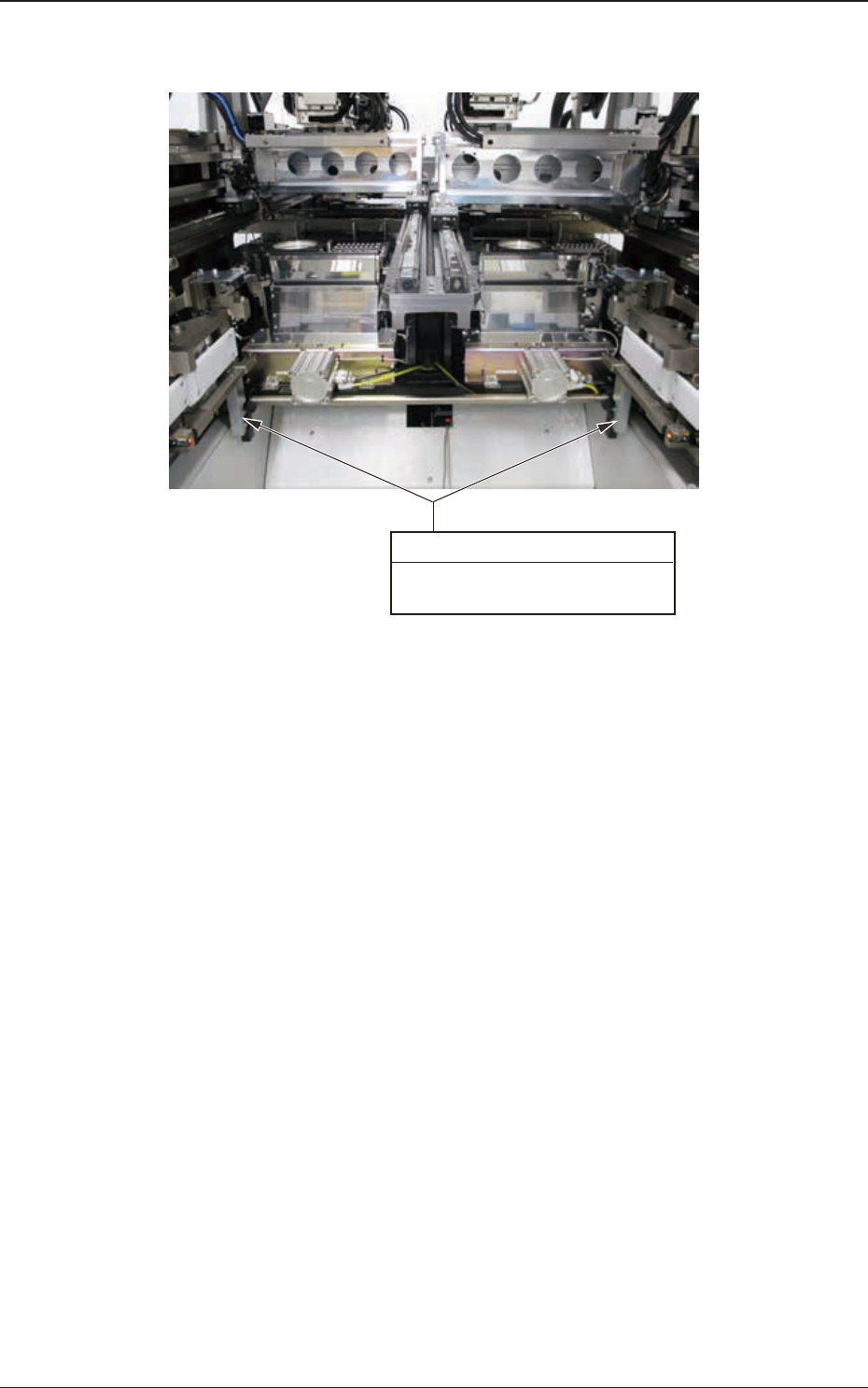

Worm Gear (2 locations)
Every 3 Months Lubrications
Required Time : 2 minutes
Fig. 4A4-17
4.4 Feeder Base Driving Section
4OM-1840
1-4-151604-001
4.4.1 Warm Gear (Two Locations) Oiling
Cycle : Every 3 Months (Required Time : 2 minutes)
Grease : MOLYNOC GREASE AP1
Worm Gear
Fig. 4A4-18
Procedure
Apply a small amount of new grease to the worm gears with a syringe.
Note
Use No. 19 (brown) nozzle.
No.19
Fig. 4A4-19
4.4 Feeder Base Driving Section
4OM-1840
1-4-161604-001
4.5 Feeder Cart Section
NOTICE
Do not blow air to cleaning sections with an air gun.
When the air is blown, dirt or dust inside the machine
will disperse, which may adhere to the sensors,
control boards and moving mechanisms causing
machine failures.
Groove on Feeder Base
Every Week Cleaning
Required Time:2minutes
Upper Surface of Feeder Base
Every Day Cleaning
Required Time:2minutes
Reel Box
Every Day Cleaning
Required Time:5minutes
Scrap Box
Every Day Cleaning
Required Time:1minute
Fig. 4A4-20
4.5 Feeder Cart Section
