Safety Precautions Safe-33 1OM-1840 1604-001 5. Alert Labels No. Alert Labels and Description (13) 10-0282- Pay attention to the moving mechanisms! Do not put your hand in the moving area. Otherwise, your hand might be c…
Safety Precautions
Safe-32
1OM-1840
1604-001

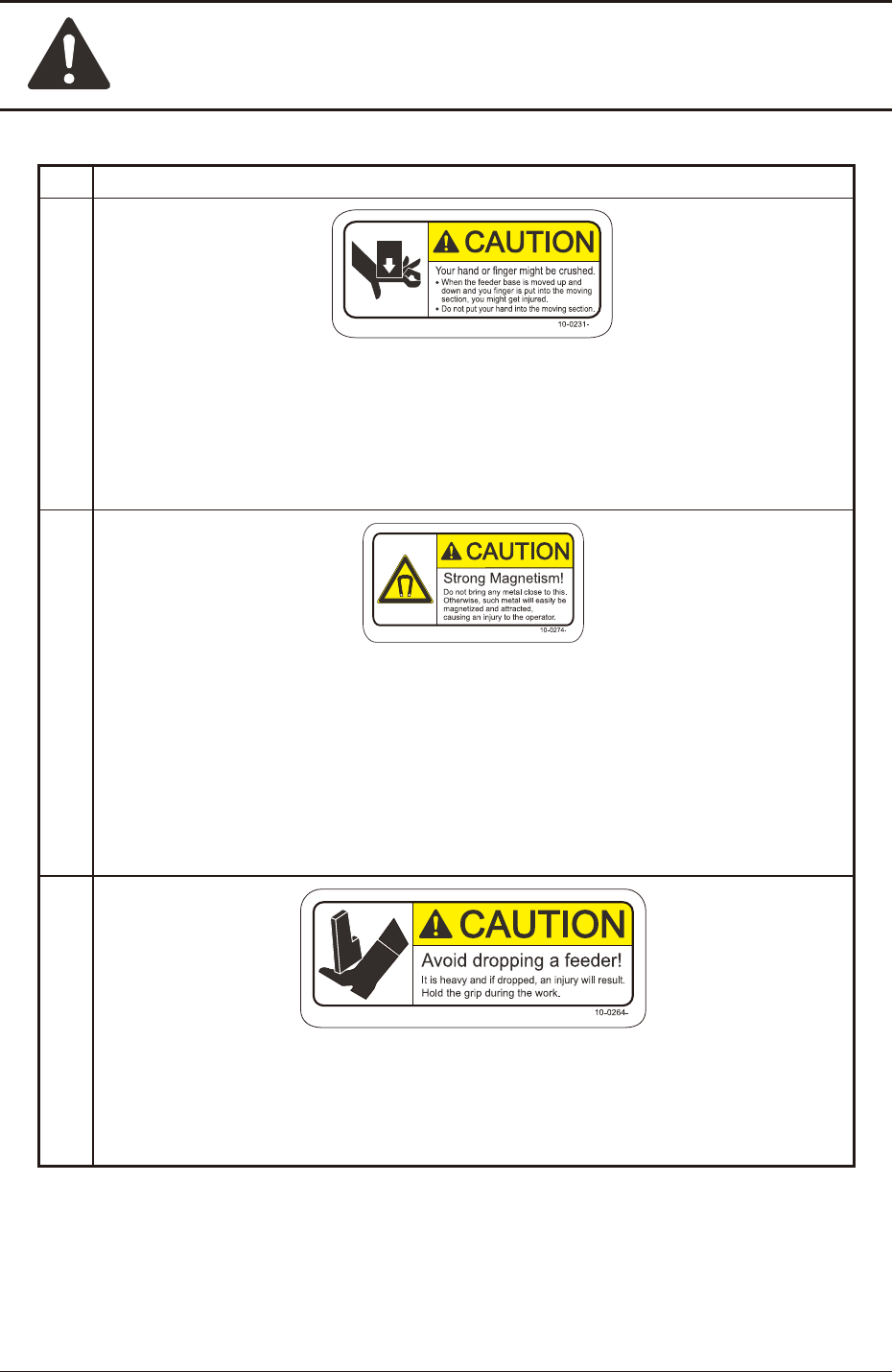

5. Alert Labels
No. Alert Labels and Description
(10)
Description
Do not put your hand in the moving area while the feeder base is moving up or
down.
feeder base is moving upward or downward.
(11)
Description
•
Do not bring any metal of high magnetizability close to this. Otherwise, such metal will easily
be magnetized and attracted, causing an injury to the operator or breakdown of the machine.
•
Do not bring any object such as a magnetic card or a watch close to the magnets.Such an object
can easily be affected by the magnetism. Otherwise, the data of the magnetic car might be
cleared or a watch, etc., may be damaged due to the strong magnetism.
(12)
Description
Do not drop a feeder. Otherwise, a foot injury will result or the feeder itself may be
damaged.
Carefully handle each feeder one by one and do not drop any.
Safety Precautions
Safe-33
1OM-1840
1604-001
5. Alert Labels
No. Alert Labels and Description
(13)
10-0282-
Pay attention to the moving
mechanisms!
Do not put your hand in the moving area.
Otherwise, your hand might be caught in
the moving area and injured.
Description
Be careful not to get caught.
Otherwise, a serious injury such as injury on your hand might be caused.
(14)
Do not put anything on it
This might damage the machine.
10-0326-
Description
Do not put any object on the machine. Doing so might damage the machine.
This might damage the machine.
(15)
Description
Do not put any feeder sideways nor tools on the feeder bases. Otherwise, the
machine will break down.
Safety Precautions
Safe-34
1OM-1840
1604-001
5. Alert Labels
No. Alert Labels and Description
(16)
Description
If you put your hand or a heavy object on the backup table while working inside the
machine, the backup table may become deformed due to an excessive load.
(17)
Description
Be sure to read the instruction manual carefully for correct operations before use.
If the machine is operated incorrectly, it might cause a breakdown of the machine.
(18)
Do not touch your hand
onto the head block.
10-0330-
Description
Do not put your hand on the head block.
(19)
10-0314-
Push here when performing maintenance.
Description
When maintenance is to be performed, press here.
