4. Inspection, Cleaning, and Lubrication Spots
4. Inspection, Cleaning, and Lubrication Spots
The following describes about the maintenance tasks required for each individual
units.
Reference
Refer to "2. Maintenance Check List" in "Chapter 1" for the maintenance items
4.1 Air Source
Air Blowing Pressure
Every Day Inspection
Required Time: 1 minute
Main Air Pressure
Every Day Inspection
Required Time: 1 minute
Drain
Drain
Every Week Cleaning
Required Time: 5 minutes
Fig. 4A4-1
4OM-1840
1-4-21604-001

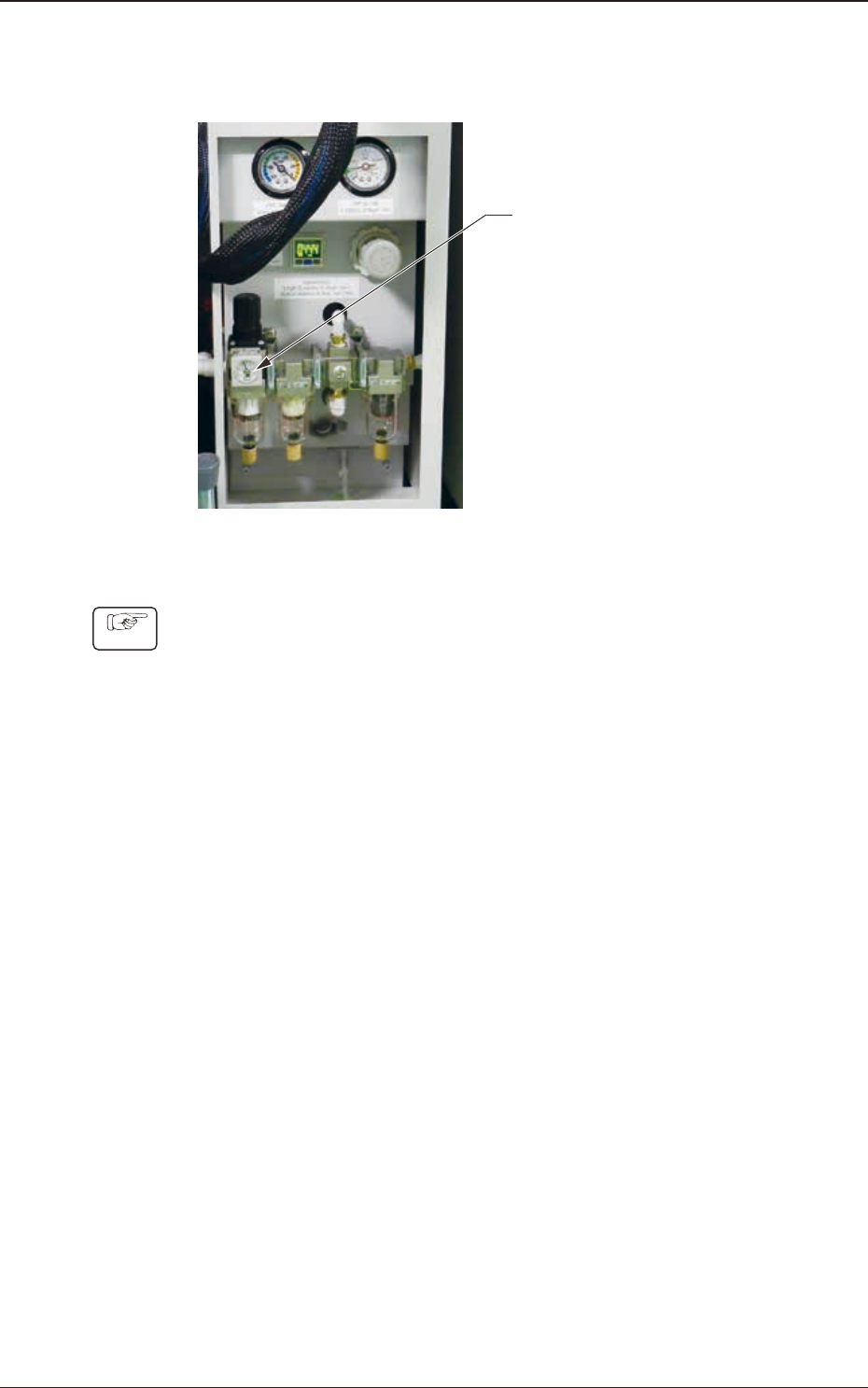

4.1.1 Air Blow Pressure Check
Cycle : Every Day (Required Time : 1 minute)
Air Blowing Pressure
Fig. 4A4-2
Procedure
Check to see that the pressure gauge reads the initial setting (0.05 MPa
(0.5 kgf/cm
2
)). Do not change the pressure unless necessary.
Notice
The pressure is factory-adjusted upon shipment of the machine.
4.1 Air Source
4OM-1840
1-4-31604-001

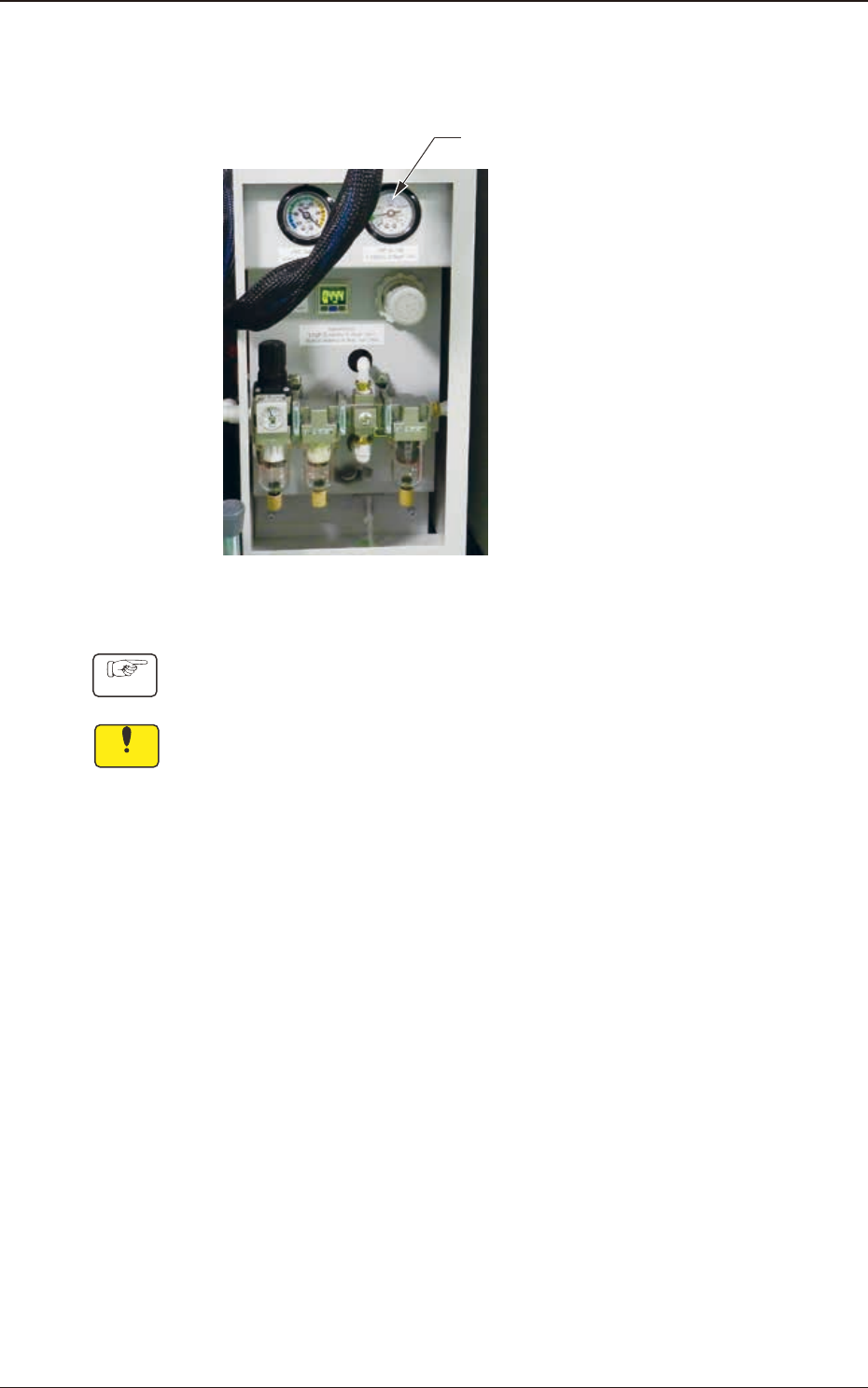

4.1.2 Main Air Pressure Check
Cycle : Every Day (Required Time : 1 minute)
Main Air Pressure
Fig. 4A4-3
Procedure
Set Air Pressure 0.45 MPa (4.6 kgf/cm
2
) Check to see that the air pressure is "Min.
0.4 MPa (4.1 kgf/cm
2
)" while the machine is running.
If not, adjust the air pressure.
4.1 Air Source
