4.7 Head Section
4.7.9 Head U/D Linear Guide (HL Axis) Cleaning and Oiling
Cycle : Every 3 Months (Required Time : 5 minutes)
Grease : DAPHNE GREASE MP No.1
Head U/D Linear Guide (HL Axis)
Fig. 4A4-44-3
Procedure
(1) Wipe old grease out using a rag.
(2) Apply grease in the linear guide groove slightly using the syringe.
Notice
Apply grease, taking care that the grease does not stick to the
sensor.
Note
(a) Use No. 19 (brown) nozzle.
(b) Grease should be applied every 3 months after the initial month.
No.19
Fig. 4A4-44-4
manual axis operation to smooth the grease.
4OM-1840
1-4-351604-001
4.8 X/Y Beam Section
X-Axis Linear Guides (4 locations)
Every Day Inspection
Required Time: 1 minute
X-Axis Linear Guides (4 locations)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Y-Axis Linear Guides (4 locations)
Every Day Inspection
Required Time: 1 minute
Y-Axis Linear Guides (4 locations)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Fig. 4A4-45
4.8 X/Y Beam Section
4OM-1840
1-4-361604-001
(

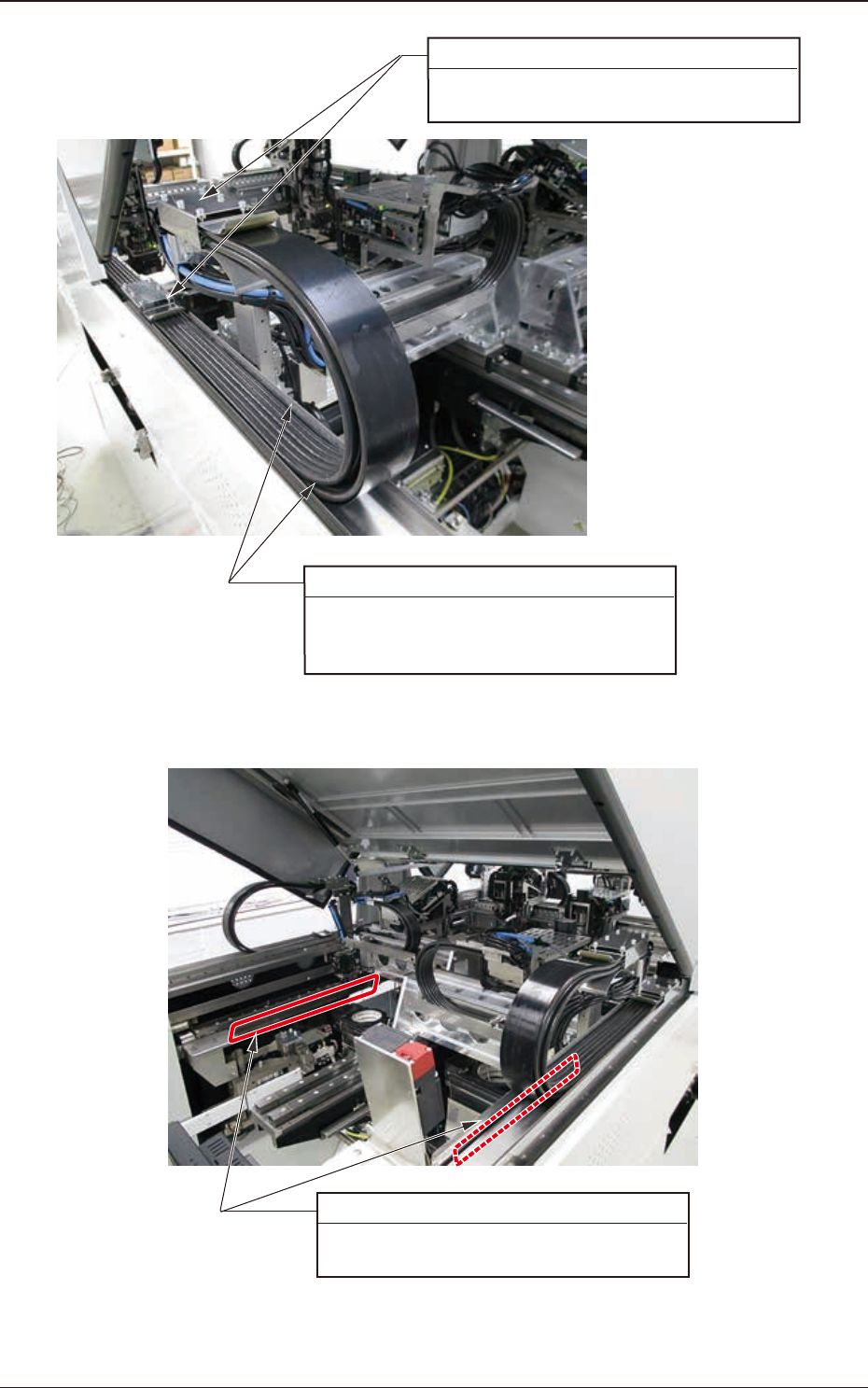

Y-Axis Cable Fixing Places
Every 6 Months Inspection
Required Time: 1 minute
Y-Axis Cable Side Faces
Every 6 Months Cleaning and Lubrication
(BARRIERTA IEL/V)
Required Time: 3 minutes
Fig. 4A4-46
6
Y-Axis Linear Scale
Every 6 Months Cleaning
Required Time: 5 minutes
Fig. 4A4-47
