4OM-1840 1-4-21 1604-001 4.6.1 Cutter Unit (Four Locations) Oiling Cycle : Every 3 Months (Required Time : 10 minutes) Grease : MOLYNOC GREASE AP1 Cutter Box Grease Nipple Fig. 4A4-27 Procedure (1) Remove the front cover…

4OM-1840

1-4-201604-001

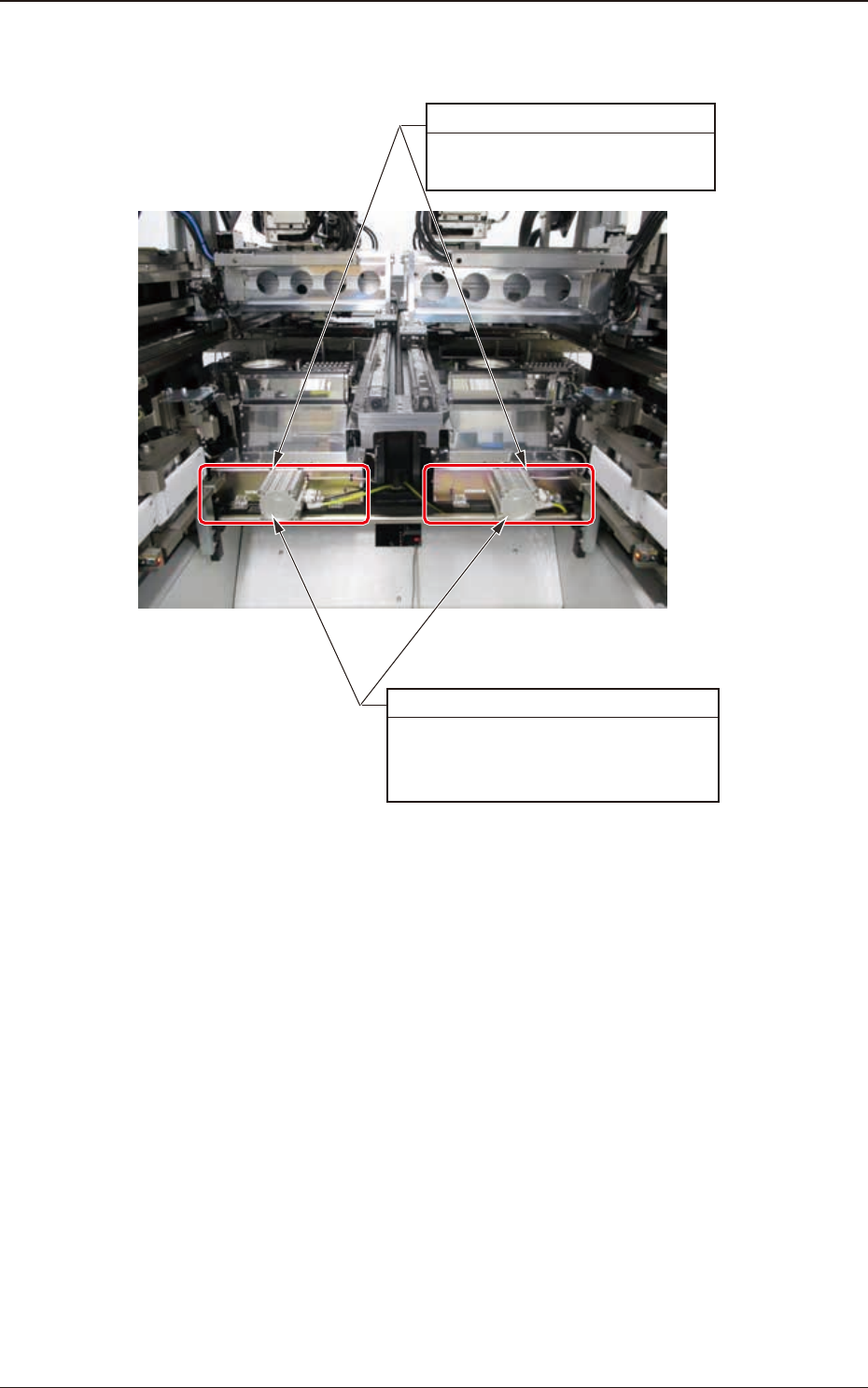

4.6 Cutter Section

Cutter Unit Inside

Every 3 Months Cleaning

Required Time: 10 minutes

Cutter Unit

Every 3 Months Lubrication

(MOLYNOC GREASE AP1)

Required Time: 10 minutes

Fig. 4A4-26

4.6 Cutter Section

4OM-1840

1-4-211604-001

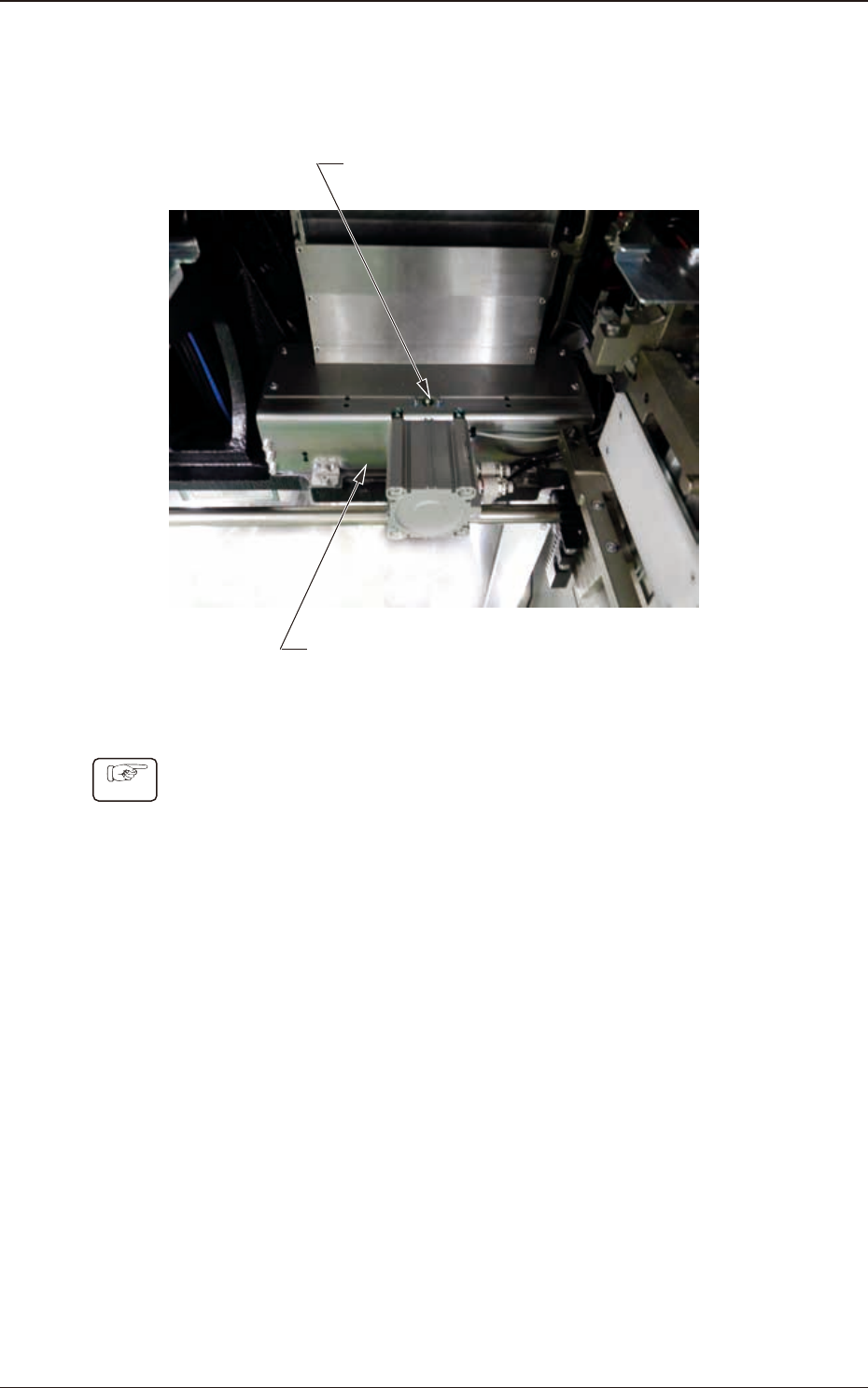

4.6.1 Cutter Unit (Four Locations) Oiling

Cycle : Every 3 Months (Required Time : 10 minutes)

Grease : MOLYNOC GREASE AP1

Cutter Box

Grease Nipple

Fig. 4A4-27

Procedure

(1) Remove the front cover.

(2) Supply about 5cc of new grease from the grease nipple using the grease gun.

4.6 Cutter Section

4OM-1840

1-4-221604-001

4.6.2 Cutter Unit Inside Oiling

Cycle : Every 3 Months (Required Time : 10 minutes)

Cutter Unit

Screw (4 Locations)

Fig. 4A4-28

Procedure

(1) Remove the front cover.

(2) Remove the cutter unit guide cover.

(3) Clean the debris and dust in the cutter unit using a vacuum cleaner.

Note

Use a vacuum cleaner with a narrow air opening in the nozzle.

Narrow Air Opening in Nozzle End

(Recommended)

Fig. 4A4-29

CAUTION

After making sure that the air supply has been stopped and the

cutter blades are closed, start maintenance.

During maintenance, do not touch the cutter blade.

4.6 Cutter Section
