4OM-1840 1-4-31 1604-001 4.7.6 Nozzle Change Cam Surface (Upper) Cleaning and Oiling Cycle : Every 3 Months (Required Time : 5 minutes) Grease : DAPHNE GREASE MP No.1 Nozzle Change Cam Face Fig. 4A4-41 Procedure (1) If a…
4OM-1840
1-4-301604-001

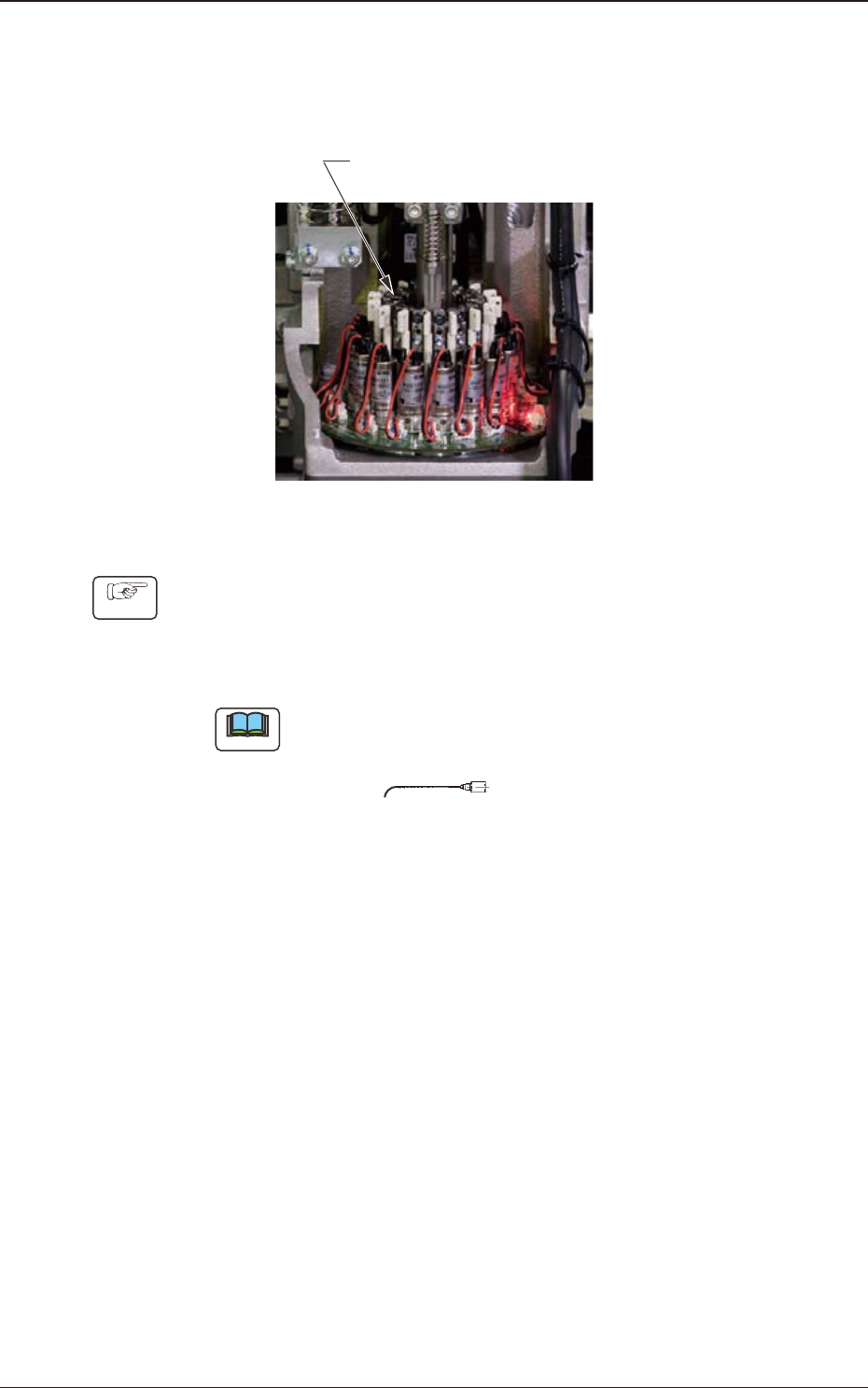

4.7.5 Cam Follower Cleaning and Oiling
Cycle : Every 3 Months (Required Time : 5 minutes)
Grease : DAPHNE GREASE MP No.1
Cam Followers
Fig. 4A4-39
Procedure
(1) If foreign substances adhere to the cam followers, remove them with a pair
of tweezers.
(2) Apply grease (0.01 cc) to the upper side of the cam face with a syringe.
Note
(a) "0.01 cc" is almost equivalent to the size of "1005 Chip".
(b) Use No. 19 (brown) nozzle.
No.19
Fig. 4A4-40
4.7 Head Section
4OM-1840
1-4-311604-001
4.7.6 Nozzle Change Cam Surface (Upper) Cleaning and Oiling
Cycle : Every 3 Months (Required Time : 5 minutes)
Grease : DAPHNE GREASE MP No.1
Nozzle Change Cam Face
Fig. 4A4-41
Procedure
(1) If a foreign substance adheres to the cam face, remove it with a pair of
tweezers.
(2) Apply grease (0.01 cc) to the upper side of the cam face with a syringe.
Note
(a) "0.01 cc" is almost equivalent to the size of "1005 Chip".
(b) Use No. 19 (brown) nozzle.
No.19
Fig. 4A4-42
4.7 Head Section
4OM-1840
1-4-321604-001

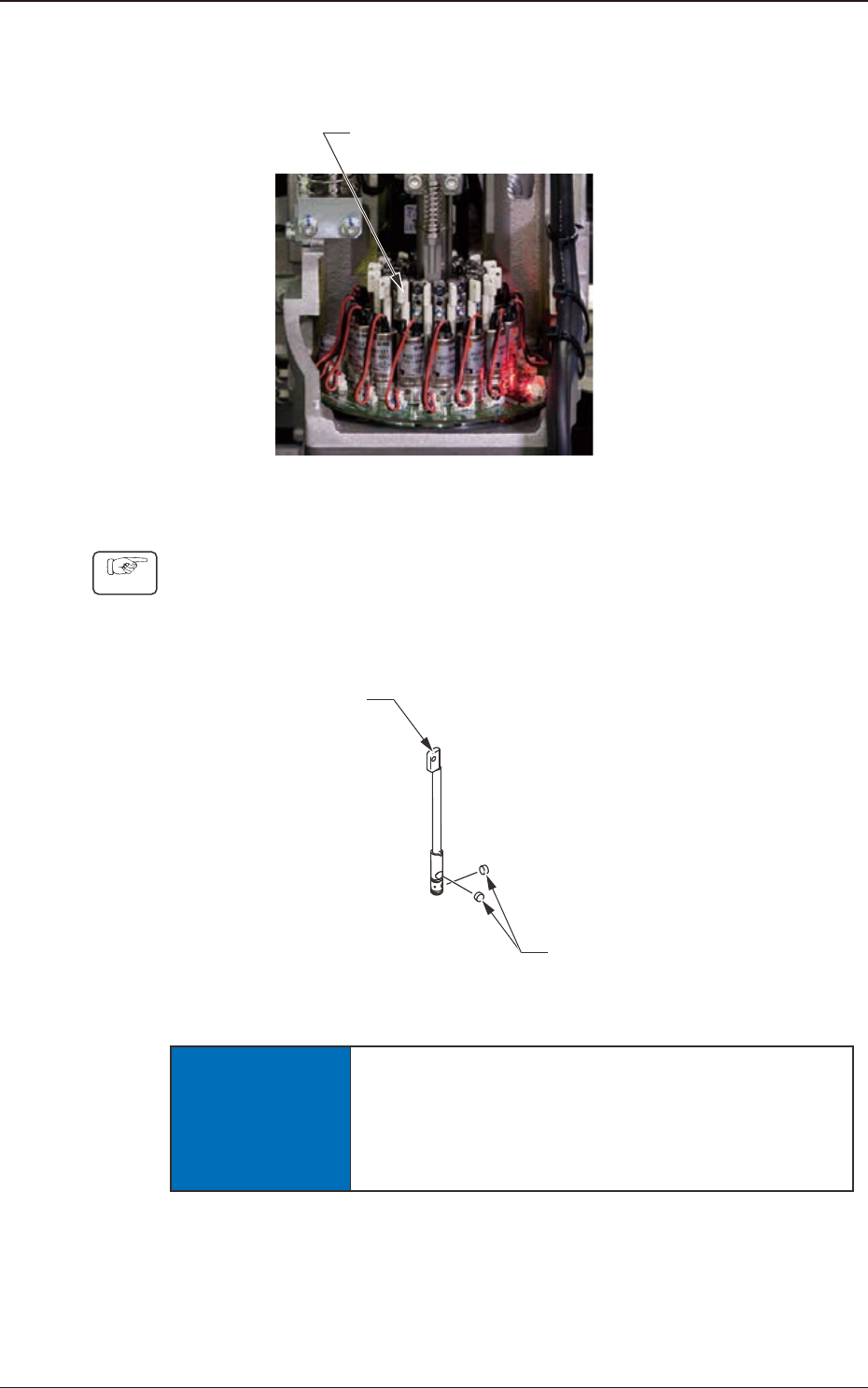

4.7.7 Vacuum Filter Change
Cycle : Every 3 Months (Required Time : 30 minutes)
Filter Holder
Fig. 4A4-43
Procedure
removal jig.
Filter Holder
Filter
Fig. 4A4-44
NOTICE
Make sure of the lter folder insertion direction, and
then insert the folder securely to the end.
Make sure that the lter folder upper surface is
aligned with the top block upper surface.
4.7 Head Section
