9 Maintenance SIPLACE 80S /F/G User’s Manual 9.5 Revolver Head, Segment Version 2 (New Nozzle Seat) Edition 07/97 from Software Version SR.010.xx 9 - 60 9.5.10 Segments, Version 2 NOTE In this s ection the ma intenanc e …
SIPLACE 80S/F/G User’s Manual 9 Maintenance
Edition 07/97 from Software Version SR.010.xx 9.5 Revolver Head, Segment Version 2 (New Nozzle Seat)
9 - 59
9.5.9.2 Inspecting, Cleaning and Greasing the O-Rings
●
Check the two small O-rings of the vacuum distributor coupling and the larger O-ring of the support plate
(see Fig. 9.5.11). Replace damaged O-rings (for Item Nos. see Fig. 9.5.11).
●
Clean the 3 O-rings with alcohol, and then grease them sparingly with UNISILKON L250L.
Grease the new O-rings too!
●
Insert the small O-rings into the vacuum distributor coupling bores and the larger O-ring into the support
plate bore, as shown in Fig. 9.5.11.
●
Insert the vacuum distributor coupling into the support plate, pushing against the resistance of the O-rings
so that the spring plungers (4) touch lightly against the support plate.
Fig. 9.5.11 Location of the vacuum distributor coupling on the support plate, and removal of the distributor coupling
9 Maintenance SIPLACE 80S/F/G User’s Manual
9.5 Revolver Head, Segment Version 2 (New Nozzle Seat) Edition 07/97 from Software Version SR.010.xx
9 - 60
9.5.10 Segments, Version 2
NOTE
In this section the maintenance of the segments with sealing piston version 2 (new nozzle seat and grease-
free maintenance) is described. The new "sleeve complete" (with O-ring!) and the new nozzle (with reference
web) are also always fitted to the segments with sealing piston version 2.
9.5.10.1 Removal of the Segments
●
With the 80 S and F machines select: Single functions
→
Gantry 1
→
Go to service pos'n
→
Start key
(green key). The revolver head is brought forwards into a good position for working.
●
Select next: Star head
→
Cycle star. The star position (= segment number) which is at star station 7 at the
top is displayed on the screen. Unlock the key-operated switch.
●
Open the sliding safety door above the placement head and also the flap of the light gate on the placement
head (see Fig. 9.5.2).
NOTE
The glass disk must not be damaged. If it is damaged a new "sleeve complete" must be fitted into the seg-
ment (see maintenance manual).
●
Carefully remove the segment in the top position with the correct segment removal tool , as shown in Fig.
9.5.12.
Note: This tool exists in 2 versions. For the segments with sealing piston version 2 you will need the tool
with the Item No. 00305897-02.
NOTE
If "Segment number X" is displayed on the screen, this always stands for "Star position number X". In the
ideal case the segment number (1-12) corresponds to the star position number (1-12), but after individual
segments have been replaced this may no longer be necessarily the case.
●
For this reason when you remove segments make a note straightaway of the allocation of the star position
number (= number on the screen) from which you removed the segment to the segment number
(= last number of the numerical sequence on the segment body, for example, "12").
NOTE
The star nozzle configuration "ACTUAL" must be reestablished after maintenance work during the place-
ment of a batch in order that the time-optimized placement sequence is once again assured.
Nozzles and segments should not be swapped around. Compliance with this will also make fault location
easier.
SIPLACE 80S/F/G User’s Manual 9 Maintenance
Edition 07/97 from Software Version SR.010.xx 9.5 Revolver Head, Segment Version 2 (New Nozzle Seat)
9 - 61
●
Place each segment immediately after removal carefully into the segment storage case or onto a plastic
foam support during maintenance work.
●
Repeat with "Cycle star" until all segments have been removed this way.

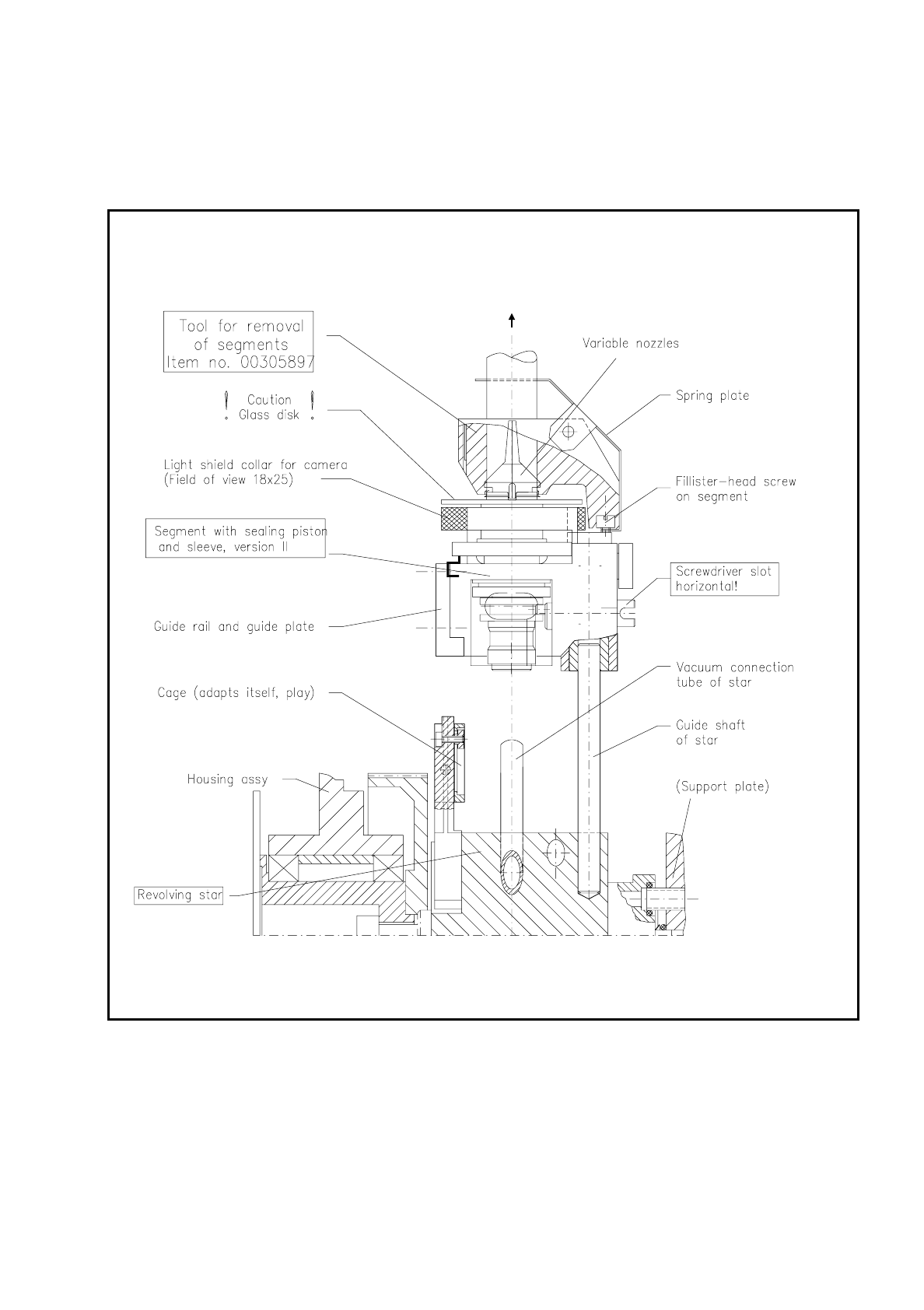

Fig. 9.5.12 Removal and installation of segments with sealing piston version 2 at star station 7 using the removal tool
