2 Operational safety
2.2 Warning labels
110 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
2.2 Warning labels
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant to
water and weathering.
2.2.1 Warning Labels on the SIPLACE JTF-ML2
Fig.10: Warning Labels on the SIPLACE JTF-ML2
1) GB 2894 Warning Label 202
The SIPLACE JTF-ML2 has a GB 2894
warning label202.
See 2.2.3 "GB 2894 Warning Label
202" [}111].
WARNING!
Danger to life from powerful mag-
netic fields inside the machine!
Forbidden for persons with pace-
makers, implants and magnetic items
on the body
.
2) Warning Strips
The SIPLACE JTF-ML2 has a warning strip.
WARNING!
Danger of Crushing
Reaching in here can lead to injuries to
the arms and hands.
Do NOT reach through the module into
the machine while the machine is run-
ning.
.
3) Warning Label W204
The SIPLACE JTF-ML2 has two warning
labelsW204.
See 2.2.4 "Warning label W204" [}111].
WARNING!
Danger of Crushing
Reaching in here can lead to injuries to
the arms and hands.
Do not reach into the module while it is
running.
.
2.2.2 Warning, Prohibition and Cautionary Labels
WARNING
Damage to warning labels
Incorrect cleaning can damage the warning labels.
ü Using the correct cleaning agents.
► Do not use abrasive cleaners or solvents for cleaning warning labels.
► Replace any damaged or illegible warning labels.
► Verify that the warning labels are positioned correctly.
2 Operational safety
2.2 Warning labels
User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 111
2.2.3 GB 2894 Warning Label 202
Fig.11: GB 2894 warning label 202
Danger to life from powerful magnetic fields inside the
machine!
Forbidden for persons with pacemakers, implants and mag-
netic items on the body
Item no. 03159867‑xx
DANGER
Danger to life from powerful magnetic fields inside the machine!
The life of persons with the following passive or active implants is put at risk:
‒ Pacemakers,
‒ Defibrillators,
‒ Insulin pumps, etc.
► At-risk people must not stand in the immediate vicinity of the machine.
2.2.4 Warning label W204
Fig.12: Warning label W204
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the machine while it is running
Item no. 03009343-xx
2 Operational safety
2.3 Safety features
112 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
2.3 Safety features

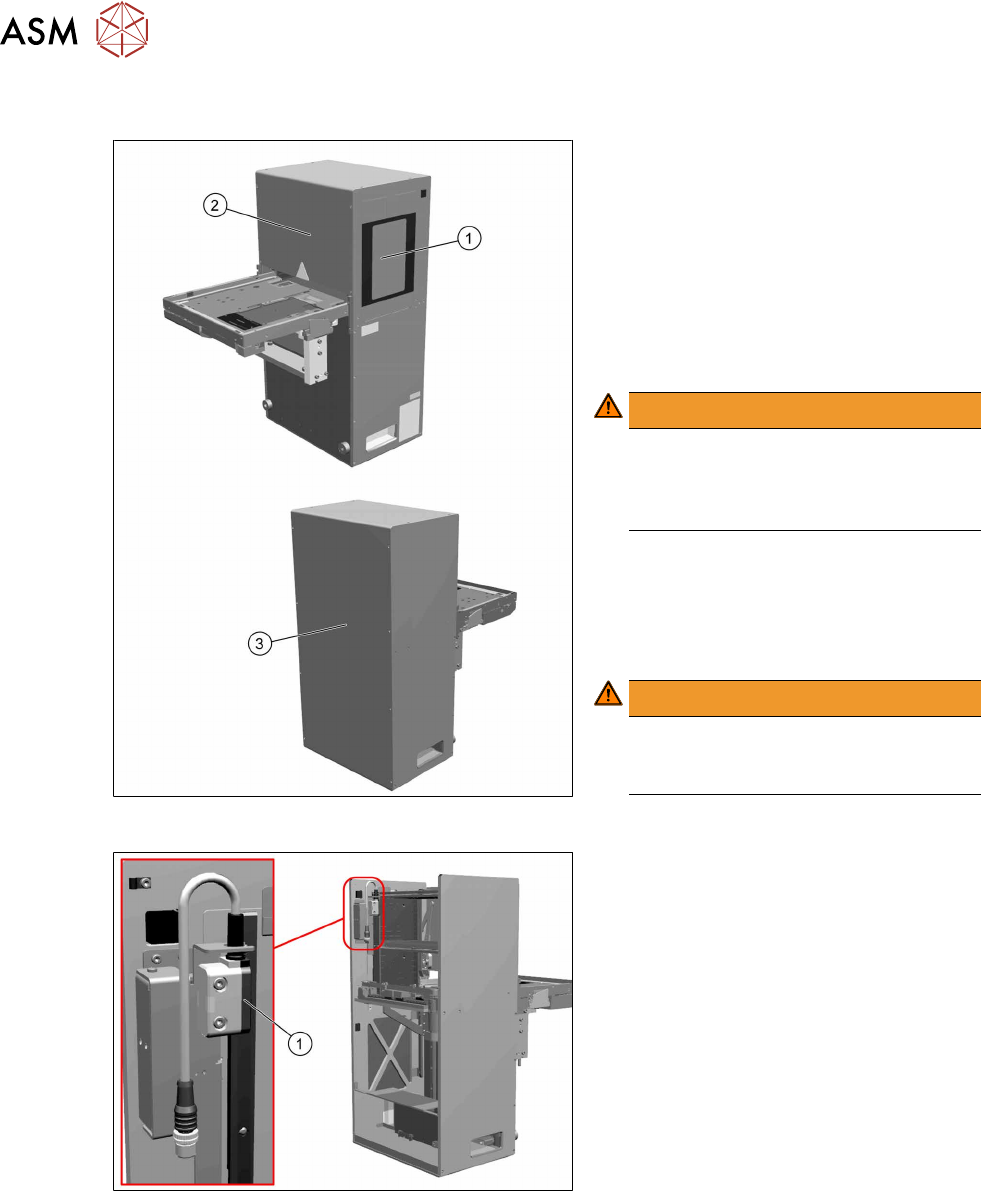

Fig.13: Door and covers
To prevent injuries, there are one door and
various safety covers attached to the
SIPLACE JTF‑ML2.
The door(1) on the SIPLACE JTF‑ML2 is
locked during operation.
When the cassettes need to be changed,
the door can be unlocked using the station
software. The SIPLACE JTF-ML2 is inactive
then and all motors are stopped.
WARNING!
Door
It is not allowed to operate the
SIPLACE JTF‑ML2 without or with
open door.
.
The SIPLACE JTF-ML2 has several covers.
Do not remove these.
(2) Front cover
(3) Back and top cover
WARNING!
Covers
It is not allowed to operate the
SIPLACE JTF-ML2 without covers.
.
Fig.14: Safety protective switch and actuator
Safety protective switch and actuator (1)
This switch is to monitor safety loop signal
from TX machine and detect opening of the
door. If either signal is opened, door switch
contact will be opened and de-energized
safety relay output. Power supply to all mo-
tors will be cut-off.
