4 Setting up and commissioning
4.2 Retrofitting in the SIPLACE TX-Series
124 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
4.2.2 Scope of delivery for retrofitting in the SIPLACE TX-Series V2
The following parts are required for retrofitting in the SIPLACE TX-Series V2:
●
SIPLACE JTF-ML2 (tray feeder module) [00588116‑xx]
●
Changeover table for SIPLACE JTF-ML [00588112‑xx]
●
Adapter Assembly Nozzle Station SIPLACE TX V2 [03169973-xx]. This is necessary if a CPP
head and the big reject bin with nozzle station are installed.
●
Assembly kit for SIPLACE JTF-ML2 (SIPLACE TX V2) [00588128‑xx]
Additionally required parts on a SIPLACE TX V2:
●
Magazine sheet for SIPLACE JTF-M magazines [03110222Sxx]
●
If you fit the JTF ML2 to a SIPLACE TX V2 with a CPP head, the "Reject box / nozzle station
IC-camera V2"[ 03162806-xx] and the "Nozzle station CPx cpl. / SX4a for JTF3
M" [03106821-xx] must be ordered in addition!
Assembly kit for SIPLACE JTF-ML2 (SIPLACE TX V2)
Count Designation Item no.
1 SIPLACE JTF-ML2 adapter for SIPLACE TX machine complete 03129004-xx
1 Empty tape duct, short TX assembly 03121376-xx
1 Mounting support TX/JTF complete 03136824-xx
1 Cover f. JTF cpl. TX V2 03149911-xx
1 Dummy feeder 12 tracks 03154408- xx
1 Cable: JTF Power and 24V_S 03147684-xx
1 Cable: JTF CAN 03147687- xx
4.2.2.1 Overview of Parts
Fig.32: SIPLACE JTF-ML2 tower
Fig.33: SIPLACE JTF-ML2 conveyor
Fig.34: SIPLACE JTF-ML2 adapter
Fig.35: Dummy feeder 12 tracks
4 Setting up and commissioning
4.2 Retrofitting in the SIPLACE TX-Series
User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 125

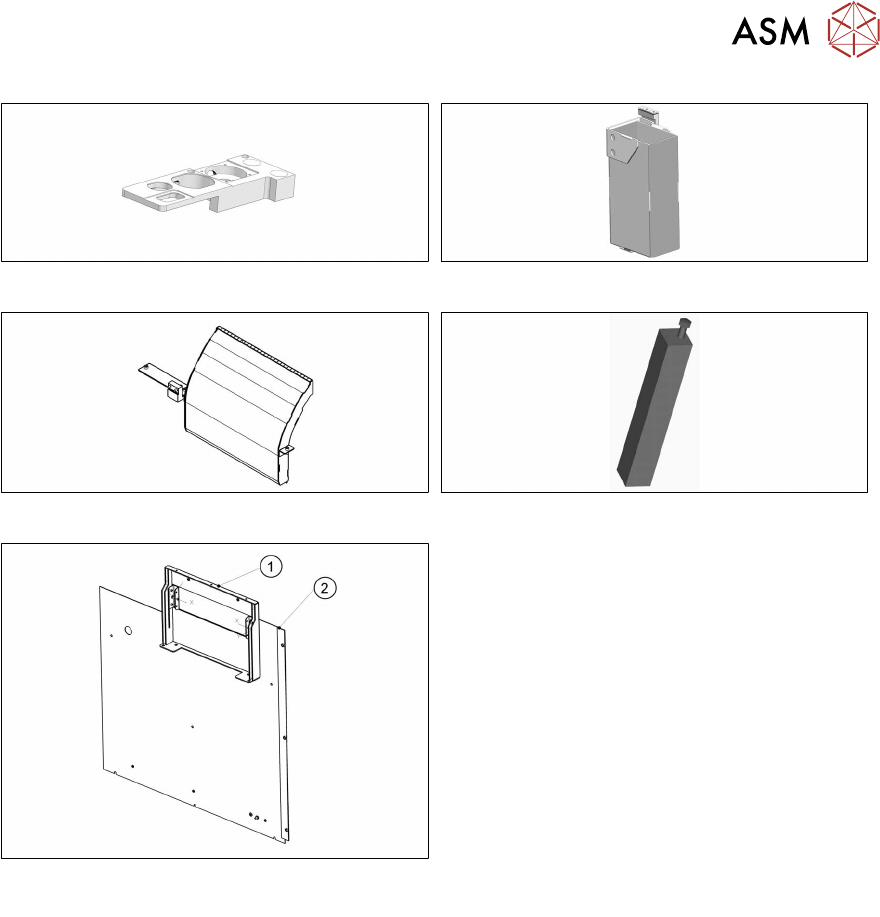

Fig.36: Nozzle station. IC camera V2 (optional)
Fig.37: Reject box
Fig.38: Empty tape duct, short SIPLACE TX assembly
Fig.39: Mounting support SIPLACE TX-JTF assembly
Fig.40: Cover assembly for SIPLACE JTF-ML/ML2 com-
plete
Cover assembly for SIPLACE JTF-ML/ML2
complete
Consists of:
1. Support frame assembly location 1 for
SIPLACE JTF-ML/ML2 complete
2. Cover assembly on output side location 1,
TX
4.2.3 Tools and equipment required
●
Standard tools
●
Recommended: Allen key extension, ratchet
●
Hammer
●
Punch
●
Feeler gauge
●
Belt tension measuring device [00326015‑xx]
●
Ethanol
Isopropanol – IPA can be used as an alternative.
●
Lint-free cleaning cloths [03082092‑xx]
●
Lifting trolley
●
Second person
●
Assembly instructions "Input and Output Conveyor Extension SIPLACE TX" [00198141‑xx]
4.2.4 Required working time
The complete installation, including the output conveyor extension, will take approx. four hours.
4 Setting up and commissioning
4.2 Retrofitting in the SIPLACE TX-Series
126 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
4.2.5 Performing retrofitting
4.2.5.1 Preparatory steps
► Move the component trolleys out of the machine.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
4.2.5.2 Converting the COT insert for the SIPLACE TX

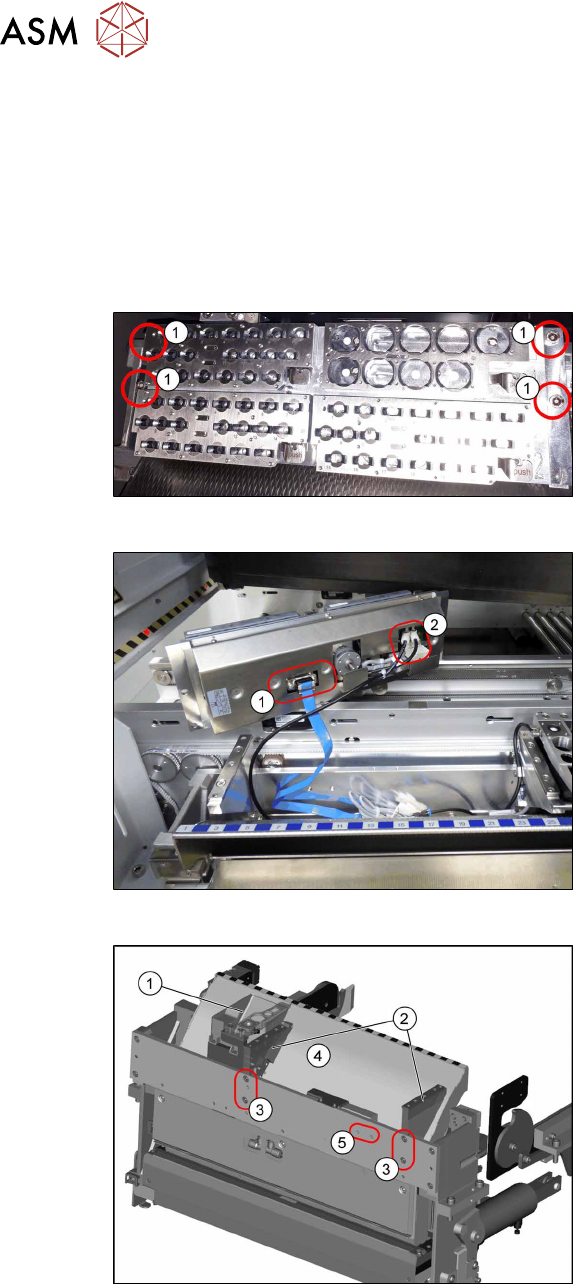

Fig.41: Removing NC 1
► Remove the four screws(1) fastening
the nozzle changer (NC).
Fig.42: Removing NC 2
► Unplug the electrical(1) and pneumatic
connections(2) for the nozzle changer
and put the NC aside.
Fig.43: Removing the NC holder
► Remove the reject bin(1).
► To remove the empty tape duct (4)
remove the screws(3) fastening the
two NC holders(2) and remove the NC
holders.
(The screw holes marked with (5) will be
used for the holder of the big reject bin later
on)
