6 Maintenance 6.1 Overview maintenance tasks User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 175 6 Maintenance NOTICE Further Information: For maintenance, please read…
5 Tasks on the machine
5.3 Operating the JEDEC tray feeder in the station software
174 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
Multiple Selection of Trays

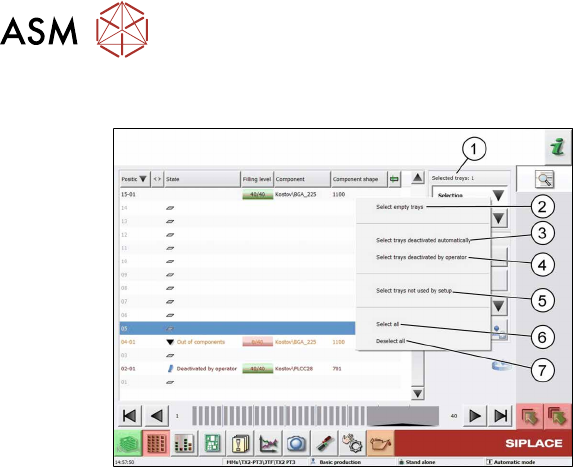

Fig.152: Multiple Selection
Use the key combination Shift+Alt to select
several trays. The selected trays are then
highlighted in blue color.
If trays have been deactivated manually or
automatically before or if the state has been
changed, you can now easily select these
trays with the Selection button.
The selected trays are then displayed as Se-
lected Trays: xx.
The Selection button provides the following quick selection types:
1. Selected Trays: xx: Indicates the number of selected trays.
2. Select empty trays: All empty trays in the setup are selected.
3. Select trays deactivated automatically: All automatically deactivated trays are selected.
4. Select trays deactivated by operator: All trays that have been manually deactivated by the
operator are selected.
5. Select trays not used by setup: All trays that are not used in the current setup are selected.
6. Select all: All trays are selected regardless of their state.
7. Deselect all: Each previous selection is discarded.
6 Maintenance
6.1 Overview maintenance tasks
User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 175
6 Maintenance
NOTICE
Further Information:
For maintenance, please read the following documents:
► Job card "SIPLACE JTF-ML2 Maintenance – Workflow 1" (Weekly)
[EN: 00198422‑xx] [DE: 00198427‑xx] [ZH: 00198432‑xx]
► Job card "SIPLACE JTF-ML2 Maintenance – Workflow 2" (3-Monthly)
[EN: 00198423‑xx] [DE: 00198428‑xx] [ZH: 00198433‑xx]
► Job card "SIPLACE JTF-ML2 Maintenance – Workflow 3" (6-Monthly)
[EN: 00198424‑xx] [DE: 00198429‑xx] [ZH: 00198434‑xx]
6.1 Overview maintenance tasks
Maintenance Tasks Workflows Workflow 1 Workflow 2 Workflow 3 Workflow 4
Maintenance tasks (weekly)
Clean conveyor (SIPLACE
JTF-ML2)
X X X X
Clean cassette X X X X
Clean tower X X X X
Maintenance tasks (3-monthly)
Kicker LM guide X X x
Pusher LM guide X X X
Maintenance tasks (6-monthly)
Ball screw of the lifting axis
(tower)
X X
Lifting LM guide (tower) X X
6 Maintenance
6.1 Overview maintenance tasks
176 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
