5 Tasks on the machine 5.3 Operating the JEDEC tray feeder in the station software 174 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 Multiple Selection of Trays Fig.…
5 Tasks on the machine
5.3 Operating the JEDEC tray feeder in the station software
User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 173
5.3.6.2 Switching to Level View

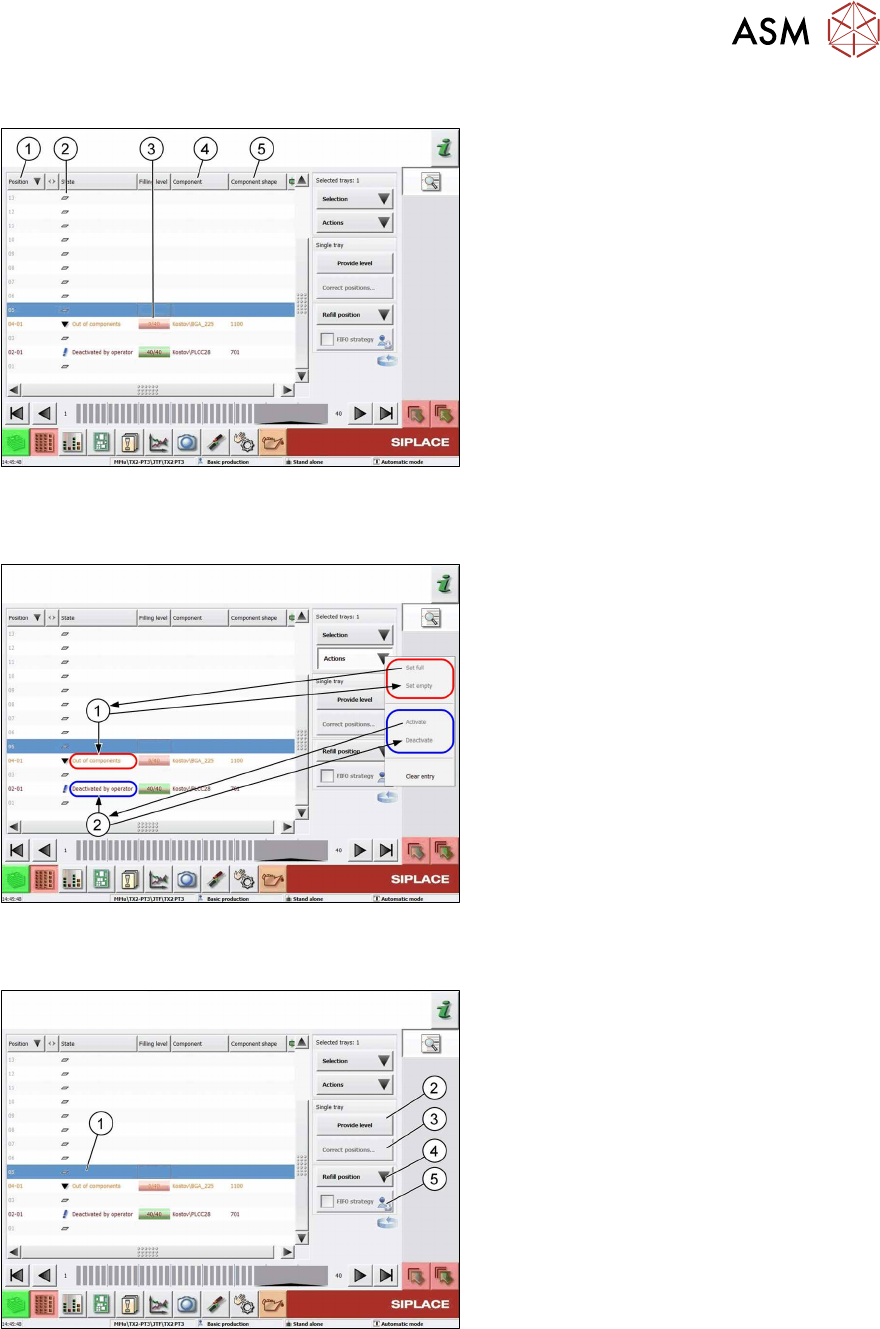

Fig.149: Level View
► Press the change button to display the
level view of the JEDEC tray feeder.
1. Position of the tray (14 or 18 levels)
2.
State indicates that a tray is present on
this level which is not used for this
setup. The filling level is not queried.
3.
Filling level: Actual - target
4.
Component: Component description
5.
Component shape: Component shape
name
Single Tray Selection
Fig.150: Single Selected Tray
The line for a single selected tray is high-
lighted in blue color.
Use the cursor to activate/select the tray.
You can now make settings for the tray and
assign different states.
Please note that the trays have been selec-
ted in advance in the example in the screen-
shot.
1.
Set empty: Sets the tray to "Out of
components". Use the Set full button
to set it back to full.
2.
Deactivate: Deactivates the complete
tray which is then marked as "Deactiv-
ated by operator". Use the Activate
button to set it back to active.
You can select the following functions and actions for the single selected tray:
Fig.151: Functions and Actions
1. Selected tray: highlighted in blue color
2.
Provide level: Moves this level to the
transfer position.
3.
Correct position...: Correction of the
pickup position
4.
Refill position: Moves the tray back
into the cassette in order to remove it.
In this state, no components can be
picked up from any tray.
5.
FIFO strategy: This button is active
when you are logged in with the neces-
sary access privileges. As soon as
pickup has been performed once from
a JEDEC tray on a replacement track,
this will be emptied completely before
the actual track is used again.
5 Tasks on the machine
5.3 Operating the JEDEC tray feeder in the station software
174 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
Multiple Selection of Trays
Fig.152: Multiple Selection
Use the key combination Shift+Alt to select
several trays. The selected trays are then
highlighted in blue color.
If trays have been deactivated manually or
automatically before or if the state has been
changed, you can now easily select these
trays with the Selection button.
The selected trays are then displayed as Se-
lected Trays: xx.
The Selection button provides the following quick selection types:
1. Selected Trays: xx: Indicates the number of selected trays.
2. Select empty trays: All empty trays in the setup are selected.
3. Select trays deactivated automatically: All automatically deactivated trays are selected.
4. Select trays deactivated by operator: All trays that have been manually deactivated by the
operator are selected.
5. Select trays not used by setup: All trays that are not used in the current setup are selected.
6. Select all: All trays are selected regardless of their state.
7. Deselect all: Each previous selection is discarded.
6 Maintenance
6.1 Overview maintenance tasks
User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 175
6 Maintenance
NOTICE
Further Information:
For maintenance, please read the following documents:
► Job card "SIPLACE JTF-ML2 Maintenance – Workflow 1" (Weekly)
[EN: 00198422‑xx] [DE: 00198427‑xx] [ZH: 00198432‑xx]
► Job card "SIPLACE JTF-ML2 Maintenance – Workflow 2" (3-Monthly)
[EN: 00198423‑xx] [DE: 00198428‑xx] [ZH: 00198433‑xx]
► Job card "SIPLACE JTF-ML2 Maintenance – Workflow 3" (6-Monthly)
[EN: 00198424‑xx] [DE: 00198429‑xx] [ZH: 00198434‑xx]
6.1 Overview maintenance tasks
Maintenance Tasks Workflows Workflow 1 Workflow 2 Workflow 3 Workflow 4
Maintenance tasks (weekly)
Clean conveyor (SIPLACE
JTF-ML2)
X X X X
Clean cassette X X X X
Clean tower X X X X
Maintenance tasks (3-monthly)
Kicker LM guide X X x
Pusher LM guide X X X
Maintenance tasks (6-monthly)
Ball screw of the lifting axis
(tower)
X X
Lifting LM guide (tower) X X
