5.2.4 Removing the cassette from the SIPLACE JTF-ML2

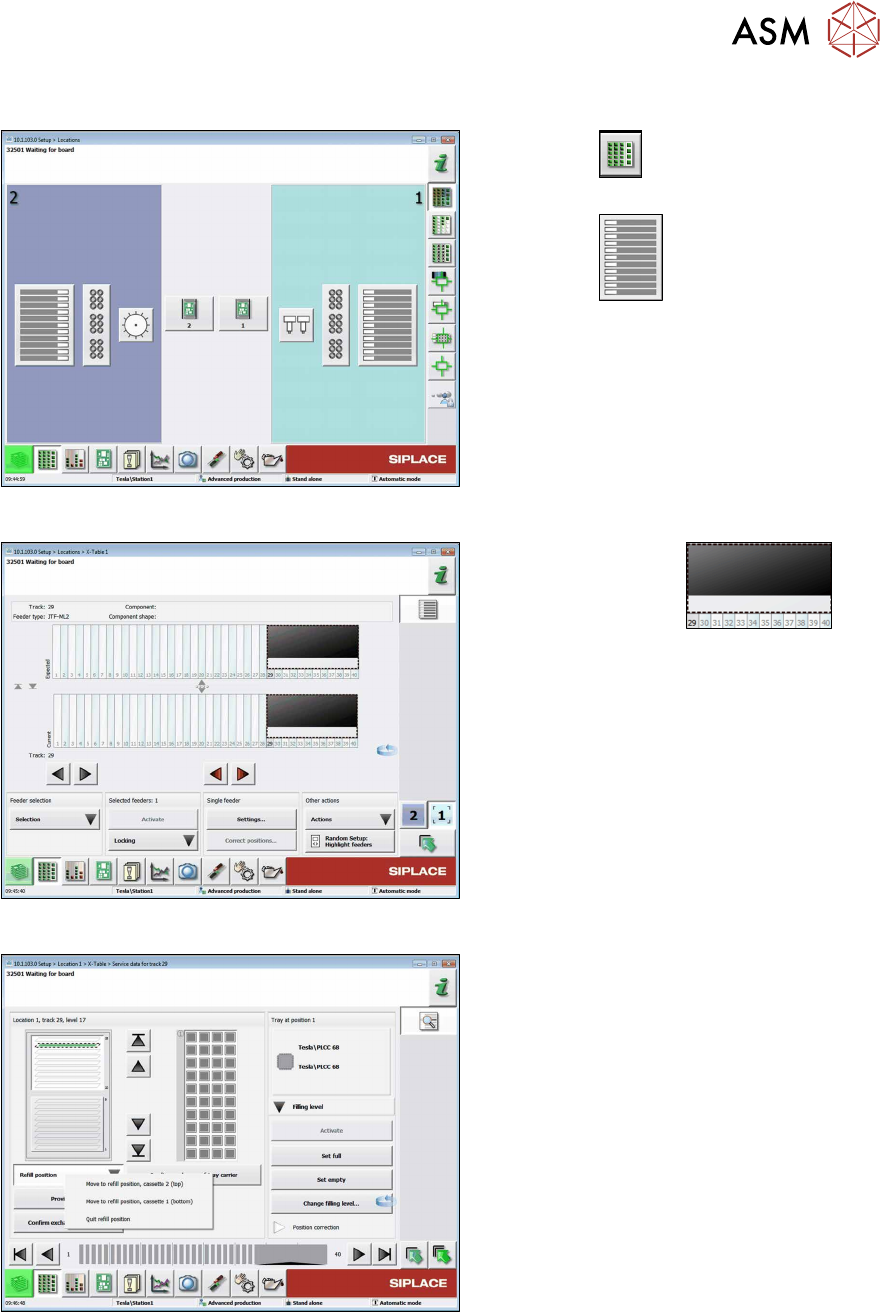

Fig.127: Menu Locations
► Click the
button to open the
Setup Locations menu.
► Click the
button to display the
setup of the table.
Fig.128: Menu Locations - Table
► Mark the JTF area
.
► Click the Settings... button.
Fig.129: Move the cassette into the refill position
► Move the cassette into the refill posi-
tion. Click the Refill position button
and the Move to refill position ... for
the relevant cassette.
5 Tasks on the machine
5.2 Task: Operating the feeder
164 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019

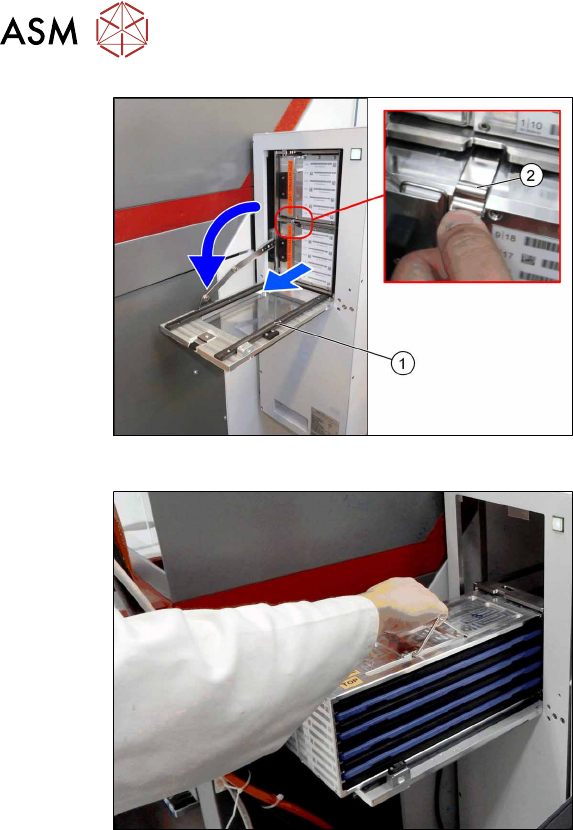

Fig.130: Open Door
► Open the door(1) once the lift has
reached the refill position.
► Press the spring(2) down and pull the
cassette out on the rails.
Fig.131: Take Off Cassette
► Secure the trays with the transportation
lock and the direction lock.
► Lift off the cassette from the rails. Hold
the cassette horizontal and place it on
a stable surface.
5 Tasks on the machine
5.2 Task: Operating the feeder
User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 165
5.2.5 Inserting the cassette into the SIPLACE JTF-ML2
Fig.132: Moving the cassette into the refill position
► Click Refill position and Quit refill
position.
Fig.133: Inserting the cassette
 CAUTION!
Avoiding component jump
Improper or sudden inserting of the
cassettes may lead to component
jump.
Always keep the cassette horizontal
when lifting and holding.
.
► Open the door(1).
► Place the cassette on the rails(2) on
the inner side of the door.
Observe the orientation. The spring(3)
must point outwards.
