4 Setting up and commissioning
4.2 Retrofitting in the SIPLACE TX-Series
122 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
4.2 Retrofitting in the SIPLACE TX-Series
4.2.1 Scope of delivery for retrofitting in the SIPLACE TX-Series V1
The following parts are required for retrofitting in the SIPLACE TX-Series V1:
●
SIPLACE JTF-ML2 (tray feeder module) [00588116‑xx]
●
Changeover table for SIPLACE JTF-ML [00588112‑xx]
●
Assembly kit for SIPLACE JTF-ML2 [00588117S‑xx]
Additionally required parts on a SIPLACE TX V1:
●
Magazine sheet for SIPLACE JTF-M magazines [03110222Sxx]
●
If you fit the SIPLACE JTF ML2 to a SIPLACE TX V1 with a CPP head, the "Reject box /
nozzle station IC-camera V1"[03162806-xx] and the "Nozzle station CPx cpl. / X4iS,
XS" [03090348-xx] must be ordered in addition!
Assembly kit for SIPLACE JTF-ML2 (SIPLACE TX V1)
Count Designation Item no.
1 SIPLACE JTF-ML2 adapter for SIPLACE TX machine complete 03129004‑xx
1 Empty tape duct, short TX assembly 03121376-xx
1 Mounting support TX-JTF assembly 03136824-xx
1 Cable COTi TX: DC control to SIPLACE JTF-ML 03134469-xx
1 Cable COTi TX: CAN bus3 to SIPLACE JTF-ML 03134468-xx
1 Cover assembly for SIPLACE JTF complete 03119382-xx
1 Dummy feeder 12 tracks 03154408- xx
1 Cable: Power Adapter JTF 03160347- xx
4.2.1.1 Overview of Parts

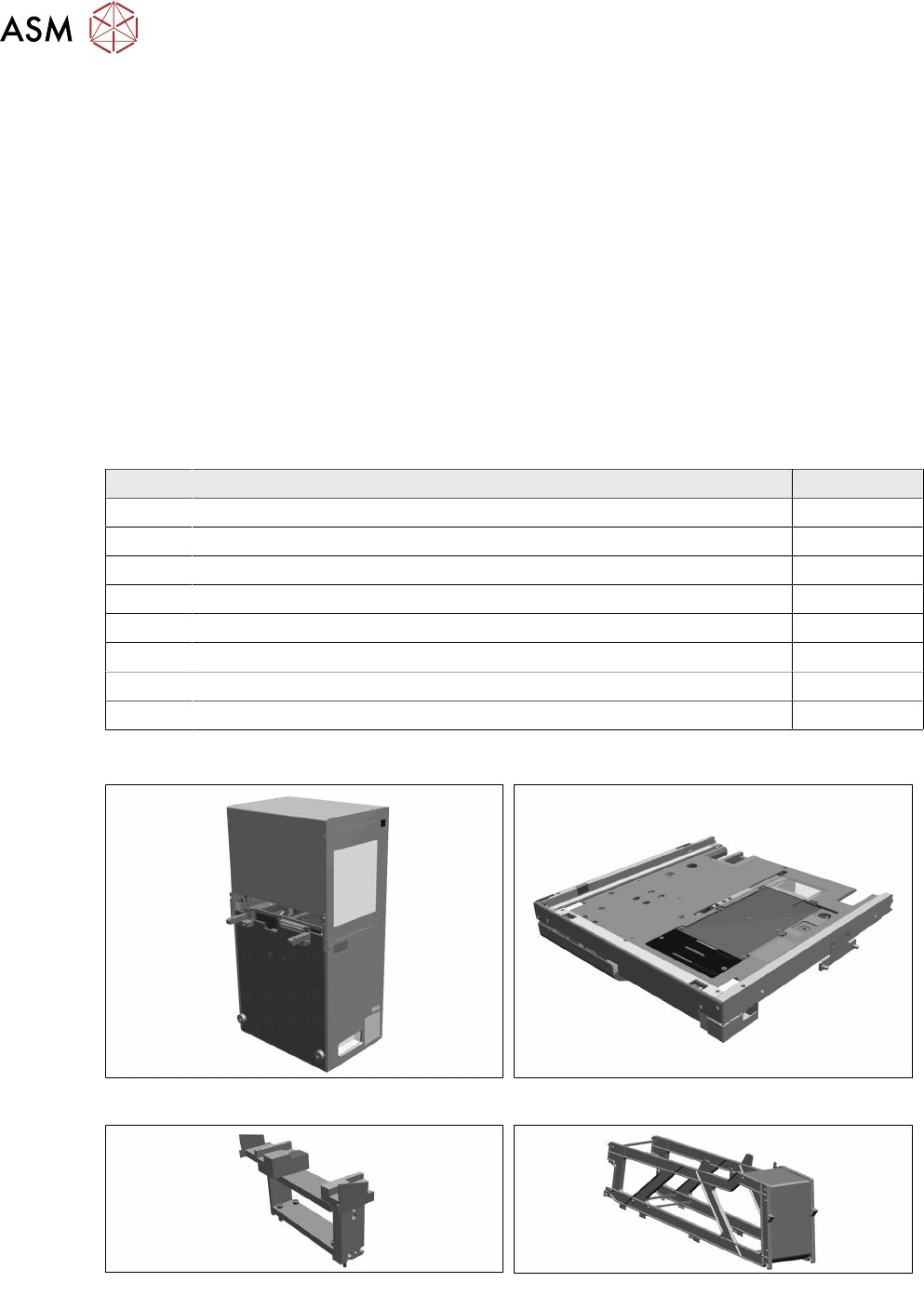

Fig.23: SIPLACE JTF-ML2 tower
Fig.24: SIPLACE JTF-ML2 conveyor
Fig.25: SIPLACE JTF-ML2 adapter
Fig.26: Dummy feeder 12 tracks
4 Setting up and commissioning
4.2 Retrofitting in the SIPLACE TX-Series
User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 123

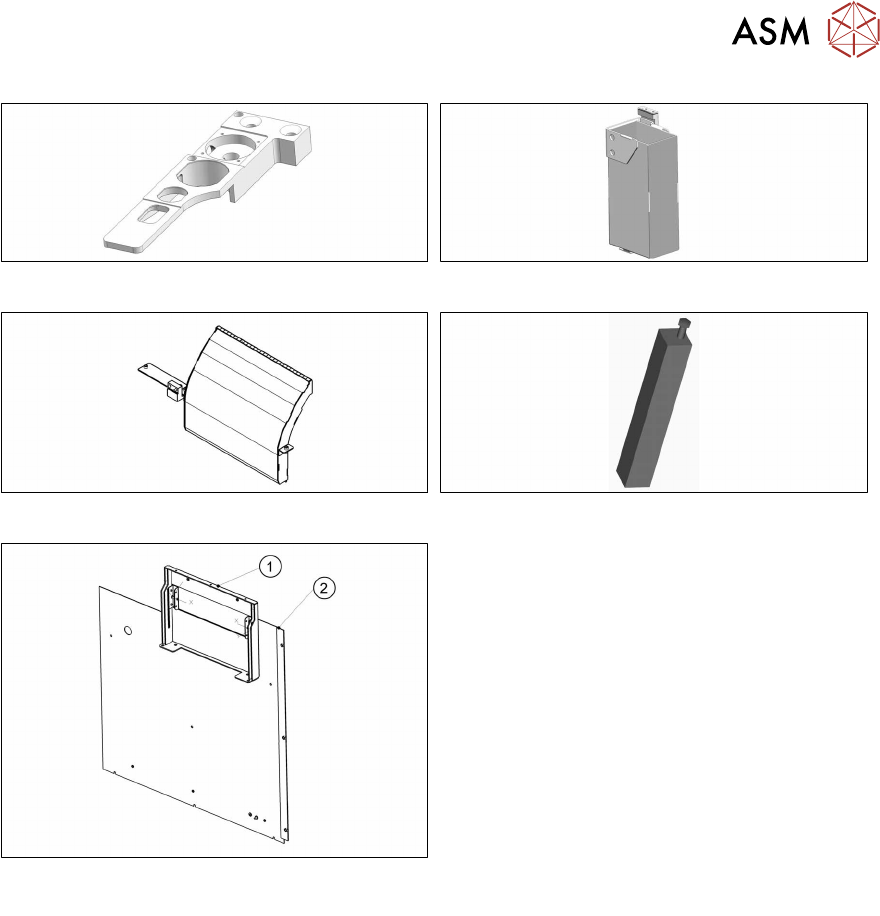

Fig.27: Nozzle station. IC camera V1 (optional)
Fig.28: Reject box
Fig.29: Empty tape duct, short SIPLACE TX assembly
Fig.30: Mounting support SIPLACE TX-JTF assembly
Fig.31: Cover assembly for SIPLACE JTF-ML/ML2
complete
Cover assembly for SIPLACE JTF-ML/ML2
complete
Consists of:
1. Support frame assembly location 1 for
SIPLACE JTF-ML/ML2 complete
2. Cover assembly on output side location 1,
TX
4 Setting up and commissioning
4.2 Retrofitting in the SIPLACE TX-Series
124 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
4.2.2 Scope of delivery for retrofitting in the SIPLACE TX-Series V2
The following parts are required for retrofitting in the SIPLACE TX-Series V2:
●
SIPLACE JTF-ML2 (tray feeder module) [00588116‑xx]
●
Changeover table for SIPLACE JTF-ML [00588112‑xx]
●
Adapter Assembly Nozzle Station SIPLACE TX V2 [03169973-xx]. This is necessary if a CPP
head and the big reject bin with nozzle station are installed.
●
Assembly kit for SIPLACE JTF-ML2 (SIPLACE TX V2) [00588128‑xx]
Additionally required parts on a SIPLACE TX V2:
●
Magazine sheet for SIPLACE JTF-M magazines [03110222Sxx]
●
If you fit the JTF ML2 to a SIPLACE TX V2 with a CPP head, the "Reject box / nozzle station
IC-camera V2"[ 03162806-xx] and the "Nozzle station CPx cpl. / SX4a for JTF3
M" [03106821-xx] must be ordered in addition!
Assembly kit for SIPLACE JTF-ML2 (SIPLACE TX V2)
Count Designation Item no.
1 SIPLACE JTF-ML2 adapter for SIPLACE TX machine complete 03129004-xx
1 Empty tape duct, short TX assembly 03121376-xx
1 Mounting support TX/JTF complete 03136824-xx
1 Cover f. JTF cpl. TX V2 03149911-xx
1 Dummy feeder 12 tracks 03154408- xx
1 Cable: JTF Power and 24V_S 03147684-xx
1 Cable: JTF CAN 03147687- xx
4.2.2.1 Overview of Parts
Fig.32: SIPLACE JTF-ML2 tower
Fig.33: SIPLACE JTF-ML2 conveyor
Fig.34: SIPLACE JTF-ML2 adapter
Fig.35: Dummy feeder 12 tracks
