4 Setting up and commissioning
4.2 Retrofitting in the SIPLACE TX-Series
152 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
4.2.5.15 Teaching the refill position
Reteach the refill position if a cassette does not slide easily into the tower.

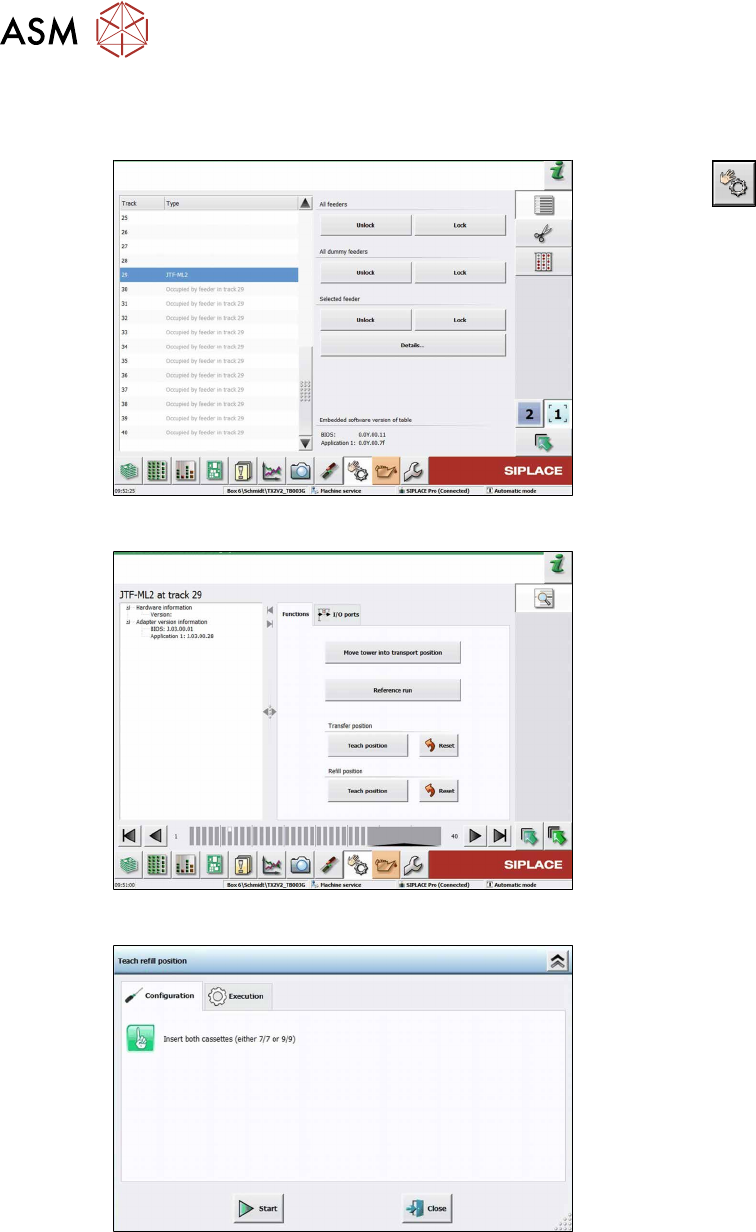

Fig.105: Teach refill position 1
► Click the
button.
► Select the button Location 1.
► Select Track 29.
► Click the Details… button.
Fig.106: Teach refill position 2
► Select the Functions tab.
► Click the Teach position button be-
neath Refill position.
Fig.107: Teach refill position 3
► Insert two cassettes into the SIPLACE
JTF‑ML2. The cassettes have to be of
the same type (7or 9slots).
4 Setting up and commissioning
4.2 Retrofitting in the SIPLACE TX-Series
User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 153

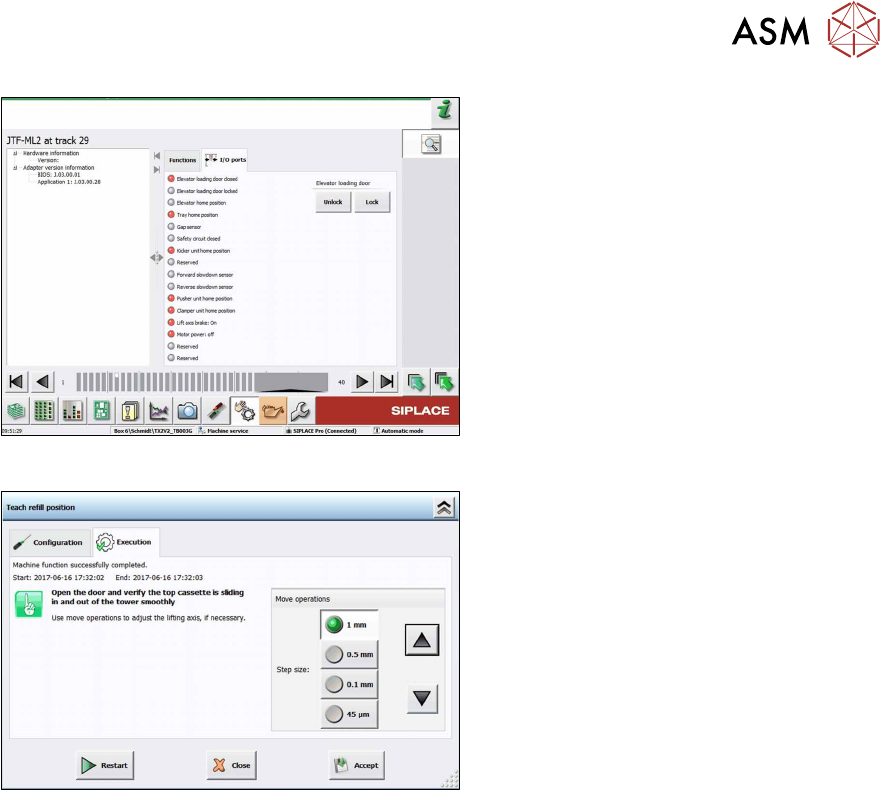

Fig.108: Teach refill position 4
► Unlock/lock the door to teach or check
the refill position.
Fig.109: Teach refill position 5
► Open the door and check if the top cas-
sette is sliding in and out of the tower
smoothly.
Use the arrow buttons to adjust the re-
fill position.
► Click the Accept button to save the
new refill position.
4 Setting up and commissioning
4.3 Configuration of JEDEC tray feeders in SIPLACE Pro
154 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
4.3 Configuration of JEDEC tray feeders in SIPLACE Pro
SIPLACE JTF-ML2 are available from SIPLACE Pro 14.1 upwards. Former SIPLACE Pro versions
do not support the SIPLACE JTF-ML2.
4.3.1 SIPLACE JTF‑ML2 in SIPLACE Pro – Feeder Tree View

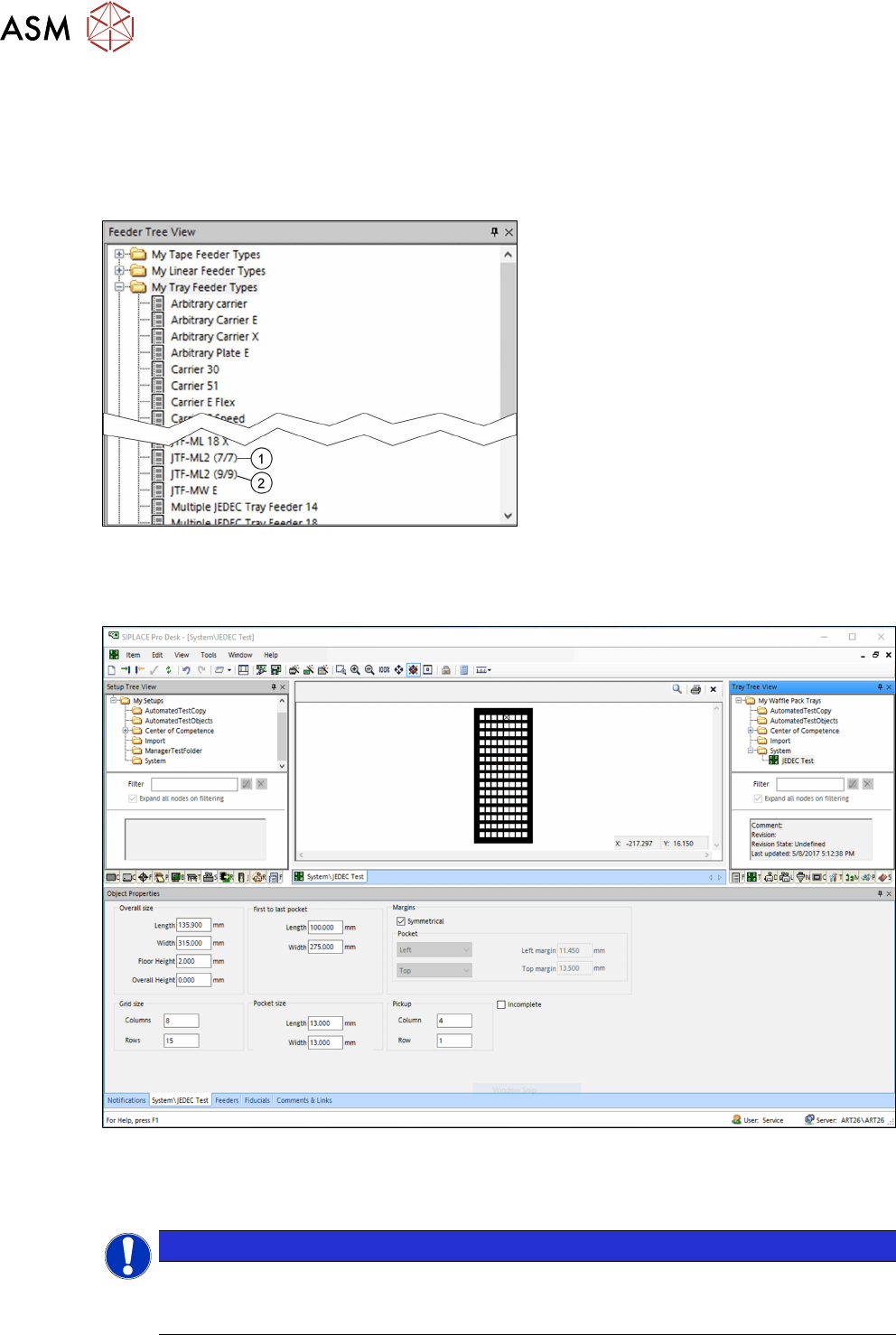

Fig.110: Feeder Tree View
Two SIPLACE JTF-ML feeder types can be
selected in the Feeder Tree View:
1. JTF-ML2 (7/7) for high components
– for 14 JEDEC waffle pack trays
height=12.19mm in two cassettes
– max. 14 different components (one
component type per waffle pack
tray)
2. JTF-ML2 (9/9) for standard compon-
ents
– for 18 JEDEC waffle pack trays
height=7.62mm in two cassettes
– max. 18 different components (one
component type per waffle pack
tray)
4.3.2 JEDEC Tray Description – Tray Tree View
Fig.111: Tray Tree View
► Define one JEDEC tray with dimensions that comply with the JEDEC tray standard.
► For the dimensions, refer to the data sheet of the manufacturer.
NOTICE
JEDEC tray standard
In order to fit in a JEDEC tray feeder, the dimensions must comply with the JEDEC tray
standard. In the example, a JEDEC tray with the name JEDEC Test was defined.
