5 Tasks on the machine
5.3 Operating the JEDEC tray feeder in the station software
User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 171
5.3.6 JEDEC Tray Feeder Settings – Functions
Fig.146: JEDEC tray feeder settings - functions
(example of SIPLACETX2)
The Settings menu provides a rough dis-
tinction of the functions:
1. Operating functions of the trays (see
below)
2. Cassette overview
3.
Filling level functions for selected tray
(see below)
4. Change button to switch to the level
view of the JEDEC tray feeder
5.
Position correction... for trays
(1) Operating functions of the trays
Button
Refill position -
Move to refill posi-
tion, cassette1/2
●
The JEDEC tray feeder switches into the refill state.
●
If the active tray is part of the cassette to be changed, this tray is
moved back into the cassette.
●
If necessary, the "Stop production" function must be performed.
●
The cassette is moved into the refill position.
●
The door is unlocked.
●
The cassette can be removed from the JEDEC tray feeder.
Refill position - Quit
refill position
●
The door is locked.
●
The JEDEC tray feeder switches into the ready for operation state.
Provide Level
●
Selection of the level / tray in the cassette overview (directly by using
the cursor or the arrow keys).
●
The tray is then displayed in a frame.
●
The tray is moved into the pickup / transfer position (tray at posi-
tion1).
●
If you select a different tray in the cassette overview, this tray is auto-
matically moved into the pickup/transfer position (tray at position1).
Confirm exchange
of cassette
●
All trays in the cassette are set to full and the exchange is confirmed.
Confirm exchange
of tray carrier
●
Only the selected tray in the cassette overview is set to full and the
exchange is confirmed.
5 Tasks on the machine
5.3 Operating the JEDEC tray feeder in the station software
172 User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019

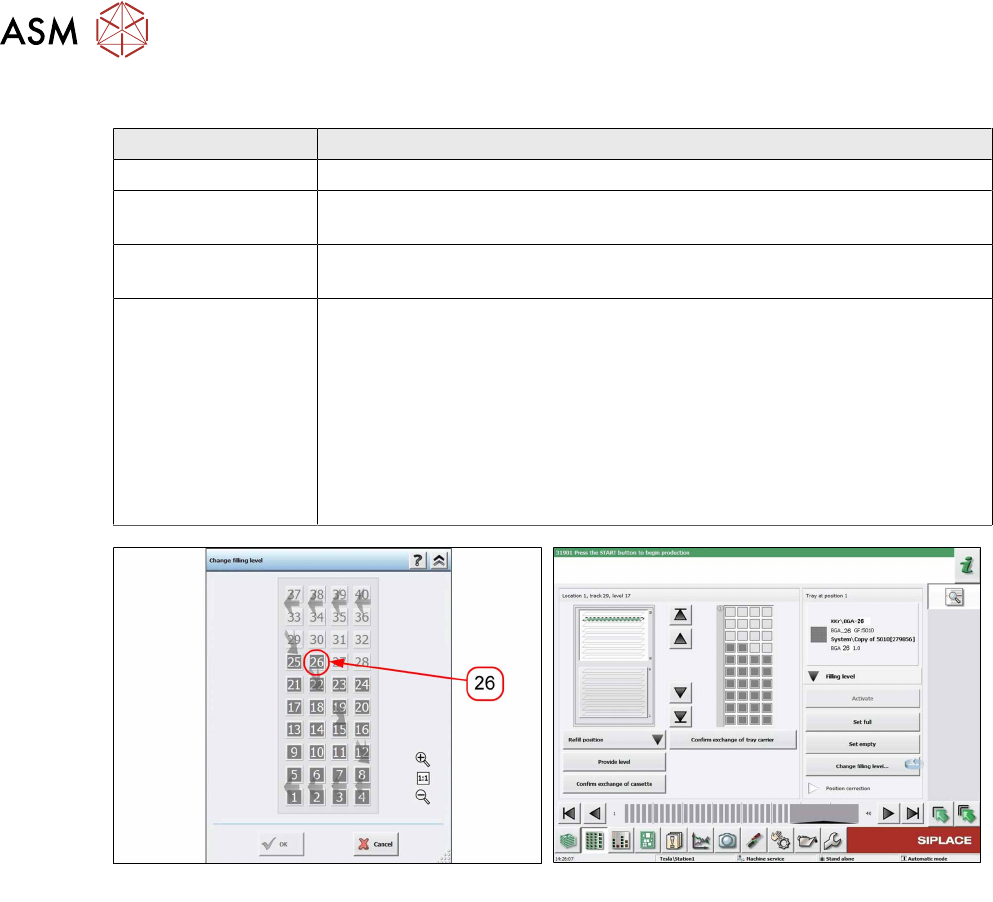

(3) Filling Level Functions for Selected Tray (see below)
Button
Activate
●
Currently without information or function.
Set full
●
Sets the selected tray to full (every component in the tray is displayed
in gray color).
Set empty
●
Sets the selected tray to empty (every component in the tray is dis-
played in white color)
Change filling
level...
●
Opens a virtual tray. You can directly select the last occupied pocket
of the tray that contains a component.
●
An arrow represents the numbering direction that also corresponds to
the pickup direction.
●
The transfer position is always at the top.
●
In the following example, pocket 134 is selected as the pocket that
contains the last component. Pockets 135 to 160 shall be empty.
●
Please note that the selected pocket is difficult to recognize.
Fig.147: Change Filling Level - Pocket 26
Fig.148: Filling Level (Example of SIPLACETX2)
The current filling level displays pockets 1 to 26 as occupied. Pockets 27 to 40 are displayed as
empty.
5.3.6.1 Position Correction
If necessary, perform a pickup position correction for the selected tray.
●
Teaching the pickup position for eccentric pickup.
●
Teaching the component center
5 Tasks on the machine
5.3 Operating the JEDEC tray feeder in the station software
User Manual / Bedienungsanleitung / 用户手册 SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 173
5.3.6.2 Switching to Level View
Fig.149: Level View
► Press the change button to display the
level view of the JEDEC tray feeder.
1. Position of the tray (14 or 18 levels)
2.
State indicates that a tray is present on
this level which is not used for this
setup. The filling level is not queried.
3.
Filling level: Actual - target
4.
Component: Component description
5.
Component shape: Component shape
name
Single Tray Selection
Fig.150: Single Selected Tray
The line for a single selected tray is high-
lighted in blue color.
Use the cursor to activate/select the tray.
You can now make settings for the tray and
assign different states.
Please note that the trays have been selec-
ted in advance in the example in the screen-
shot.
1.
Set empty: Sets the tray to "Out of
components". Use the Set full button
to set it back to full.
2.
Deactivate: Deactivates the complete
tray which is then marked as "Deactiv-
ated by operator". Use the Activate
button to set it back to active.
You can select the following functions and actions for the single selected tray:
Fig.151: Functions and Actions
1. Selected tray: highlighted in blue color
2.
Provide level: Moves this level to the
transfer position.
3.
Correct position...: Correction of the
pickup position
4.
Refill position: Moves the tray back
into the cassette in order to remove it.
In this state, no components can be
picked up from any tray.
5.
FIFO strategy: This button is active
when you are logged in with the neces-
sary access privileges. As soon as
pickup has been performed once from
a JEDEC tray on a replacement track,
this will be emptied completely before
the actual track is used again.
