Getting Started SIPLACE Explorer Annex Edition 11/2020 EN Recording Data with Backflush 1 0 3 – Remaining quantity Recording by Machine/Board 0 Fig.: XML file - data recording by machine/board The XML file presents the d…
Annex Getting Started SIPLACE Explorer
Recording Data with Backflush Edition 11/2020 EN
102
– Line name (lineName="")
– Recipe name (jobName="")
– Board name (panelName="")
–Setup (setup="")
– Number of completed boards in recording period (completedPanels="")
– Names of all stations in line
(<station stationName="" stationType=""/>)
– Consumption data (<consumptionData>)
The table displays lines with the individual component consumption data:
0
Fig.: XML file - data recording for a time period - consumption data
– Component name (compName="")
– Total component consumption (totalConsumed="")
– Pickup errors after vacuum (vacuumRejects="")
– Pickup errors after ident (identRejects="")
– Error for component absent after pickup (errAbsAftPick)
– Error after ident (identErrors)
– Total component placed (totalPlaced)
– Material defect (materialDefects)
– Process error for component not present before placing (proErrAbsBefPlace)
– Process error for component present after placing (proErrPresAftPlace)
– Process error for component rejected after dipping, glueing problem (proErrTreatment)
– Component rejected after board abortion (dropped)
– Other parameters
When using Backflush with SIPLACE Explorer, the following parameters are not used and will
therefore be shown as empty in the xml file (="").
– Material item identifier
– Warehouse ID
–barc1-6
Getting Started SIPLACE Explorer Annex
Edition 11/2020 EN Recording Data with Backflush
103
– Remaining quantity
Recording by Machine/Board
0

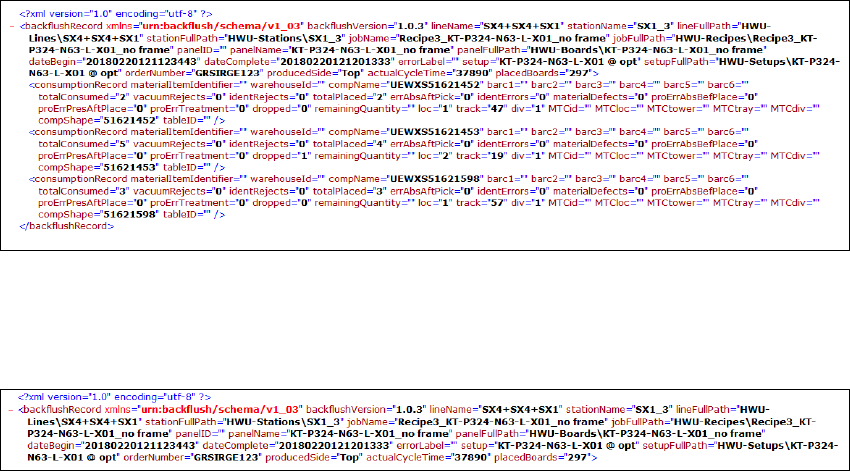

Fig.: XML file - data recording by machine/board
The XML file presents the data from the table. 0
This file contains the following information: 0
0
Fig.: XML file - data recording by machine/board - header
– Line name (lineName="")
– SIPLACE Pro Line name with path name (lineFullPath="")
– Name of station from which the recording is made (station stationName="")
– SIPLACE Pro station name with path name (stationFullPath="")
– Recipe name (jobName="")
– SIPLACE Pro recipe name with path name (jobFullPath="")
– Board name (panelName="")
– SIPLACE Pro board name with path name (panelFullPath="")
– Setup (setup="")
– SIPLACE Pro setup name with path name (setupFullPath="")
– Actual cycle time (actualCycleTime="")
– Number of placed panels of the SIPLACE Pro board (considering skipped panels)
(placedBoards="")
– Start recording (dateBegin="")
– Stop recording (dateComplete="")
Annex Getting Started SIPLACE Explorer
Recording Data with Backflush Edition 11/2020 EN
104
– Error number
Number of error type, shown if an error occurs during board production (errorLabel="")
– Consumption data (<consumptionRecord)
The table displays lines with the individual component consumption data:
0

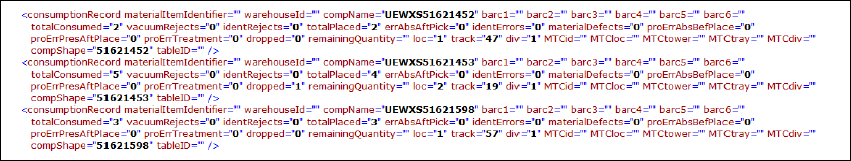

Fig.: XML file - data recording by machine/board - consumption data
– Component name (compName="")
– Total component consumption (totalConsumed="")
– Pickup errors after vacuum (vacuumRejects="")
– Pickup errors after ident (identRejects="")
– Error for component absent after pickup (errAbsAftPick)
– Error after ident (identErrors)
– Total component placed (totalPlaced)
– Material defect (materialDefects)
– Process error for component not present before placing (proErrAbsBefPlace)
– Process error for component present after placing (proErrPresAftPlace)
– Process error for component rejected after dipping, glueing problem (proErrTreatment)
– Component rejected after board abortion (dropped)
– Location (loc="")
– Track (track="")
– Division (div="")
– If components are to be picked up from an MTC, the appropriate information will be shown:
(MTCid="" MTCloc="" MTCtower="" MTCtray="" MTCdiv="")
– Component shape (compShape="")
– Other parameters
– Material item identifier
– Warehouse ID
–barc1-6
