4 SIPLACE Explorer Factory Configuratio n Utility Getting Started SIPLACE Explorer Edition 11/2020 EN from 3.11 (R20-2) 80 4.2 Configuring Production Lines SIPLACE Explorer Factory C onfigu ration Utility can be used to …

Getting Started SIPLACE Explorer 4 SIPLACE Explorer Factory Configuration Utility

from 3.11 (R20-2) Edition 11/2020 EN

 After entering the database access parameters, we strongly recommend that you check the

connection to the database Click Test to check whether the connection to the database can be

established.

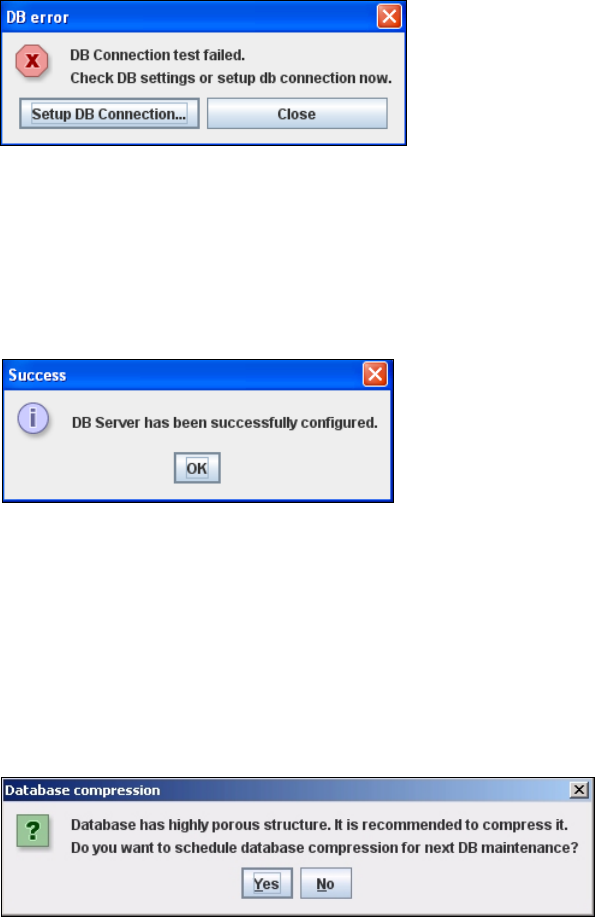

 If the connection does not function properly, you will see the following information box:

Fig. 4 - 2 DB error

 Click on the Setup DB Connection button

Start the DB Connection Wizard setup sequence, to configure the SIPLACE Explorer

factory database. Follow the instructions at “Database Connection Wizard” on page 54. 4

 If the connection functions properly, you will see the following information box:

Fig. 4 - 3 Success

 Click OK. The system will check the database data.

If the database has data from SIPLACE Explorer 2.0 - 3.10, you will need to convert the

database for SIPLACE 3.11, due to the changed data structure in the SIPLACE Explorer

3.11 database. Follow the instructions at “Converting the Database” on page 58. 4

 Dependent of the database size, you can compress the database, the following information

window will open:

Fig. 4 - 4 Database compression

 Follow the instructions at “Compressing the Database” on page 60.

 After you have established the database connection and have converted the database

accordingly, you can use the Factory Configuration Utility.

 The Factory Configuration Utility dialog box will open.

4 SIPLACE Explorer Factory Configuration Utility Getting Started SIPLACE Explorer

Edition 11/2020 EN from 3.11 (R20-2)

4.2 Configuring Production Lines

SIPLACE Explorer Factory Configuration Utility can be used to add production lines to an existing

list of lines to be monitored. This is achieved by calling up the relevant production line data from

the SIPLACE Explorer host. A list of the lines already configured in SIPLACE Explorer will be pro-

vided via the connection to the SIPLACE Explorer host. 4

If you have already configured a production line with the Line Configuration and generated a web-

site, the configured production line will automatically be added to the Factory Configuration Utility

and to the factory website. 4

NOTE

We do not recommend that you change the production line data in SIPLACE Explorer Factory

Configuration Utility. If you do so, you must also synchronize this data in the SIPLACE Explorer

host, by clicking on the Refresh lines icon. 4

After editing the data in Factory Configuration Utility, save the modified data in the factory data-

base in which all Factory Configuration Utility data are stored. During data backup, data is sent

between the SIPLACE Explorer line host and the factory host. To be more exact, data is trans-

ferred from the SIPLACE Explorer factory host to the line host and from the SIPLACE Explorer

line host to the SIPLACE Explorer factory host. 4

Transfer of data from SIPLACE Explorer factory host to SIPLACE Explorer line host: 4

– Factory calendar

– Factory database settings

– SMTP server settings

– User with password and e-mail address

Transfer of data from SIPLACE Explorer line host to SIPLACE Explorer factory host: 4

– Line names

– Line URLs

Getting Started SIPLACE Explorer 4 SIPLACE Explorer Factory Configuration Utility

from 3.11 (R20-2) Edition 11/2020 EN

4.2.1 How to Configure Production Lines and Their Properties

 Select the Production Lines tab.

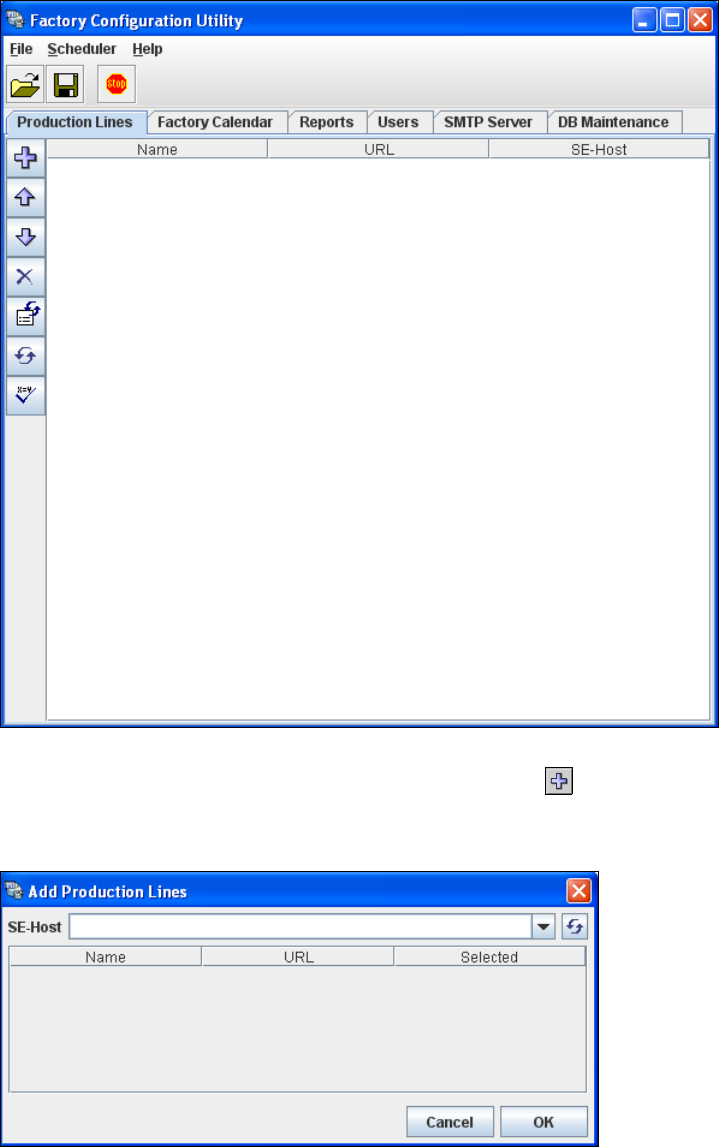

Fig. 4 - 5 Factory configuration utility - production lines

 Now add the production lines, by clicking on the Add Line icon.

The Add Production Lines dialog box will open: 4

Fig. 4 - 6 Factory configuration utility - add production lines
