Once the website has been fully generated, click on Close. The SMA has been completed.
Click on the Exit button in the Line Configuration - Website Generation dialog box. This
website can now be started from your web browser.
NOTE
Before you can load a website from your web browser, you must make sure that the relevant
application has been started via the SE Manager. For further details, please refer to “SE Manager”
on page 20. 3
3.6.2 How to Edit an Existing SMA with Line Configuration
An existing SMA can be subsequently processed via Line Configuration e.g. if you need to alter
the shift schedule. Simply select the required step in Line Configuration and make the changes.3
However, there are cases in which the existing line configuration must be edited and the SMA re-
generated: 3
– If incorrect configurations were detected during the manual configuration check with the SE
Manager.
– If incorrect configurations were detected during the automatic configuration check.These
will be marked with an icon on the SMA pages at line level.
– If the production line configuration has changed e.g.:
– Through adding or removing stations/equipment
– Through changing the station names
– Through changing the IP address
3
Before you can edit an existing SMA, stop the monitoring procedure for the relevant production
line with the SE Manager, see ”Using the SE Manager”, page - 21.
Now start Line Configuration.
Proceed by selecting Programs SIPLACE Explorer Line Configuration from the menu
in Windows or by clicking on the icon in the console. Right-click with the mouse to select
Line Configuration from the menu. 3
The Line Configuration dialog box will open. This is the first step of the line configuration
process. All configured applications will be shown.
3 SIPLACE Explorer Runtime Environment Getting Started SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
52
3

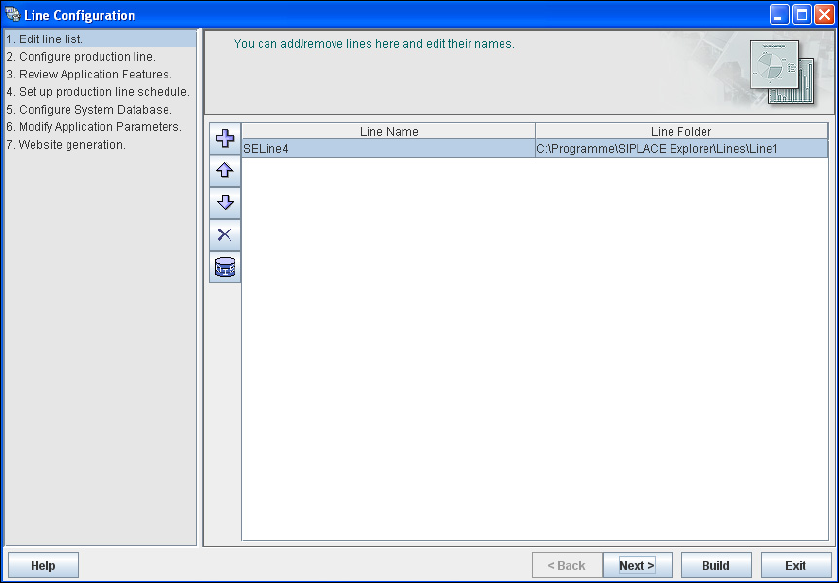

Fig. 3 - 31 Step 1: edit line list
Select the required step from the left window and click on it. In this case, it is step 4.
Getting Started SIPLACE Explorer 3 SIPLACE Explorer Runtime Environment
from 3.11 (R20-2) Edition 11/2020 EN
53
3

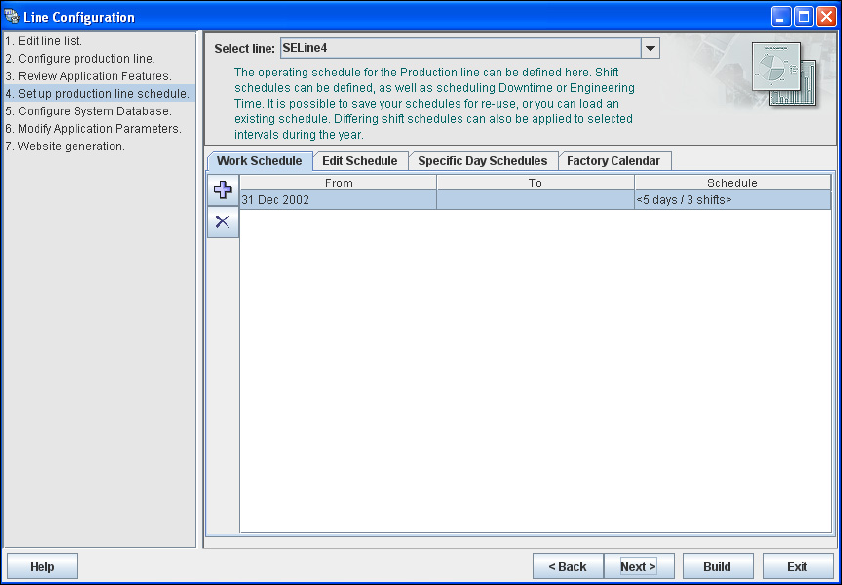

Fig. 3 - 32 Step 4: Set production line schedule
Select the required line with Select Line.
Make your changes.
If you want your changes to be shown in the SMA, you will need to regenerate the SMA after
all changes have been made. Simply click on the Build button in the respective line
configuration step.
Start the SE Manager. Follow the instructions at “Using the SE Manager” on page 21.
Use the SE Manager to check the production line configuration. Follow the instructions at
“Manually Checking the SIPLACE Explorer Configuration for Problems” on page 26.
Start line monitoring for the modified production line, via the SE Manager:
– “Using the SE Manager” on page 21
– “Starting Production Line Monitoring in SIPLACE Explorer” on page 25
