Getting Started SIPLACE Explorer Annex
Edition 11/2020 EN Recording Data with Backflush
105
– Remaining quantity
Recording of the Downloaded Recipes
0

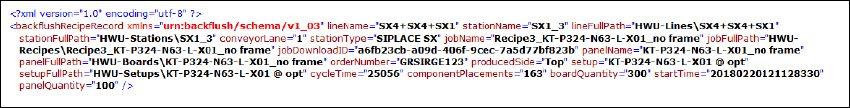

Fig.: XML file - data recording of the downloaded recipes
– Line name (lineName="")
– SIPLACE Pro Line name with path name (lineFullPath="")
– Name of station from which the recording is made (station stationName="")
– SIPLACE Pro station name with path name (stationFullPath="")
– Conveyor lane (conveyorLane="")
– Station type (stationType="")
– Recipe name (jobName="")
– SIPLACE Pro recipe name with path name (jobFullPath="")
– Unique recipe ID at the download (jobDownloadID="")
– Board name (panelName="")
– SIPLACE Pro board name with path name (panelFullPath="")
– Production order number (orderNumber="")
– Panel side (producedSide="")
– Setup (setup="")
– SIPLACE Pro setup name with path name (setupFullPath="")
– Cycle time (cycleTime="")
– Number of placed component per line (componentPlacements="")
– Number of panels on the SIPLACE Pro Board (boardQuantity="")
– Download timestamp of the recipe (startTime="")
– Number of SIPLACE Pro Boards (panelQuantity="")
Annex Getting Started SIPLACE Explorer
Recording Data with Backflush Edition 11/2020 EN
106
Recording of the E10 State
0

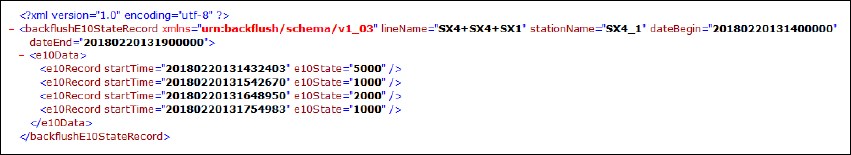

Fig.: XML file - data recording of the E10 state transitions
– Line name (lineName="")
– SIPLACE Pro Line name with path name (lineFullPath="")
– Name of station from which the recording is made (station stationName="")
– SIPLACE Pro station name with path name (stationFullPath="")
– Start time of the time interval (dateBegin="")
– Stop time of the time interval (dateEnd="")
– Start time of the new E10 state (startTime="")
– E10 state (e10State="")
– 1000 = Productive
– 2000 = Standby
– 3000 = Engineering
– 4000 = Scheduled Downtime
– 5000 = Unscheduled Downtime
– 6000 = None Scheduled Time
0
Getting Started SIPLACE Explorer Index
Edition 11/2020 EN
107
Index
A
Add Equipment
. . . . . . . . . . . . . . . . . . . . . . . . . .33
Add Production Lines
. . . . . . . . . . . . . . . . . . . . .81
Add User
. . . . . . . . . . . . . . . . . . . . . . . . . . . 87, 88
Admin
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 88
Advanced Log Options
. . . . . . . . . . . . . . . . . . . .64
Alarm Classes
. . . . . . . . . . . . . . . . . . . . . . . . . . .45
Alarm Parameters
. . . . . . . . . . . . . . . . . . . . . . . .45
Alarm Set
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Alarms
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Application Logic
. . . . . . . . . . . . . . . . . . . . . . . . .17
Archive Browser
. . . . . . . . . . . . . . . . . . . . . 12, 67
Archive Browser Wizard
. . . . . . . . . . . . . . . . . . .67
C
Clear Non-Appendable DB Tables
. . . . . . . . . . .22
Configuration of Production Lines
. . . . . . . . . . . .80
Configuration of the System Database
. . . . . . . .55
Configure Production Line
. . . . . . . . . . . . . . . . .33
Configure System Database
. . . . . . . . . . . . . . . .38
Configuring Production Lines
. . . . . . . . . . . . . . .80
Connection to Database
. . . . . . . . . . . . . . . . . . .39
Connection to Factory Database
. . . . . . . . . . . .78
Connection to the Database
. . . . . . . . . . . . . . . .79
Connection to the Microsoft SQL Server
. . . . . .55
Console
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 62
Console Display
. . . . . . . . . . . . . . . . . . . . . . . . .64
Console, Starting
. . . . . . . . . . . . . . . . . . . . . . . .62
D
Database Connection Wizard
. . . . . . . . . . . 54, 55
Database Settings
. . . . . . . . . . . . . . . . . . . . . . . .54
DB Administrator
. . . . . . . . . . . . . . . 41, 42, 92, 93
DB Administrator Login
. . . . . . . 40, 41, 42, 91, 92
DB compression
. . . . . . . . . . . . . . . . . . . . . 44, 94
DB Error
. . . . . . . . . . . . . . . . . . . . . . . . . . . 39, 79
DB Maintenance
. . . . . . . . . 40, 41, 42, 91, 92, 93
DB Maintenance Procedure
. . . . . . . . . . . . . . . .67
Default Maintenance Schedule
. . . . . . . . . . . . . .40
Default User Rights
. . . . . . . . . . . . . . . . . . . . . . .89
Default Users
. . . . . . . . . . . . . . . . . . . . . . . 17, 88
Delete Tables
. . . . . . . . . . . . . . . . . . . . . . . . . . 22
Description of Generated XML Files
. . . . . . . . 100
Development Environment
. . . . . . . . . . . . . 11, 14
E
Edit an Existing SMA with Line Configuration
. . 51
Edit Line List
. . . . . . . . . . . . . . . . . . . . . . . . . . . 29
End Monitoring
. . . . . . . . . . . . . . . . . . . . . . . . . 21
Equipment Description
. . . . . . . . . . . . . . . . . . . 34
Equipment Status
. . . . . . . . . . . . . . . . . . . . . . . 67
Error Log
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Event Processing Log
. . . . . . . . . . . . . . . . . . . . 64
Excel 2007
. . . . . . . . . . . . . . . . . . . . . . . . . 50, 85
Excel Viewer 2007
. . . . . . . . . . . . . . . . . . . 50, 85
F
Factory Calendar
. . . . . . . . . . . . . . . . . . . . . . . . 84
Factory Configuration Utility
. . . . . . 11, 14, 77, 78
Factory Configuration Utility - Add Production Lines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Factory Configuration Utility - DB Maintenance
91
Factory Configuration Utility - Drop Down Menu File
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Factory Configuration Utility - Factory Calendar
84
Factory Configuration Utility - Production Lines
81
Factory Configuration Utility - Refresh Result
. . 83
Factory Configuration Utility - Reports
. . . . . . . 85
Factory Configuration Utility - Select Language
97
Factory Configuration Utility - SMTP Server
. . . 90
Factory Configuration Utility - User Details
. . . . 88
Factory Configuration Utility - Users
. . . . . . 87, 89
Factory Configuration utility, Generate Website
96
Factory Configuration Utility, Load Settings From
.
95
Factory Configuration Utility, Menu Scheduler
. 97
Factory Configuration Utility, Restore Defaults in
.
96
Factory Configuration Utility, Starting
. . . . . . . . 78
Factory Configuration utility, websites clean-up
97
Factory Host
. . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Factory Website
. . . . . . . . . . . . . . . . . . . . . . . . 98
Factory Website, Starting
. . . . . . . . . . . . . . . . . 98
