Getting Started SIPLACE Explorer 3 SIPLACE Explorer Runtime Envi ronment from 3.11 (R20-2) Edition 11/2020 EN 4 1 3 Fig. 3 - 23 DB maintenance In the Maintenance Schedule panel click on the Edit button. The DB Admini…
3 SIPLACE Explorer Runtime Environment Getting Started SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
40
If the connection functions properly, you will see the following information box:
3
Fig. 3 - 21 Success
Click OK. The system will check the database data.
If the database has data from SIPLACE Explorer 2.0 - 3.10, you will need to convert the
database for SIPLACE 3.11, due to the changed data structure in the SIPLACE Explorer
3.11 database. Follow the instructions at “Converting the Database” on page 58. 3
Dependent of the database size, you can compress the database, the following information
window will open:
3
Fig. 3 - 22 Database compression
Follow the instructions at “Compressing the Database” on page 60.
After you have established the database connection and converted the database for SIPLACE
Explorer 3.11, you need to define the maintenance details for the system database, with the
Maintenance button.
The DB Maintenance dialog box will open. In this dialog box the following functionalities
are available:
– create a new archiving schedule for the database
– edit the default maintenance schedule
– database compression
– automate the database backup
The archiving process involves taking data from the database and saving it in a file, so that
the size of the database can be controlled. 3
All input fields will be disabled. To start or edit a DB maintenance schedule, you must have
administrator privileges for the database and the database connection must already be
established. 3
Getting Started SIPLACE Explorer 3 SIPLACE Explorer Runtime Environment
from 3.11 (R20-2) Edition 11/2020 EN
41
3

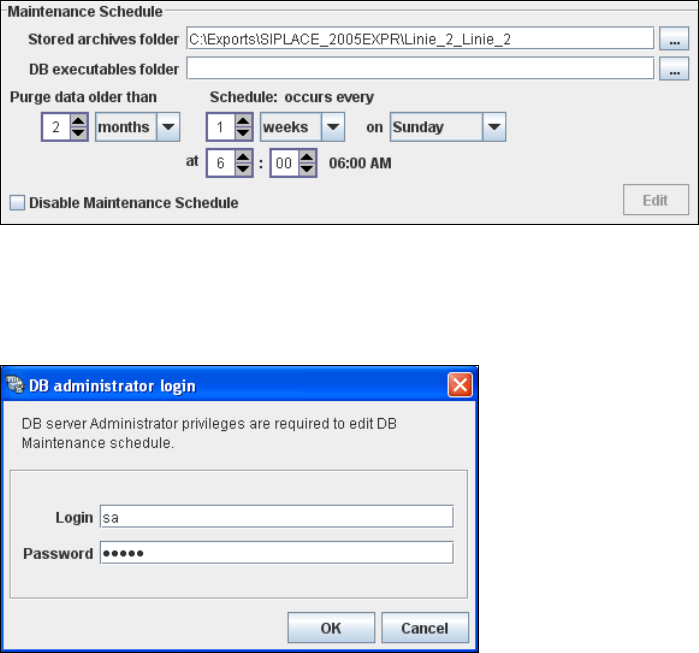

Fig. 3 - 23 DB maintenance
In the Maintenance Schedule panel click on the Edit button.
The DB Administrator Login dialog box will open.
3
Fig. 3 - 24 DB administrator login
Enter the access data here and confirm your entries with OK.
The input fields in the DB Maintenance dialog box will be enabled. The following details
can be defined:
– The file and path for the archived data
3 SIPLACE Explorer Runtime Environment Getting Started SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
42
– A schedule specifying the intervals and times when data is to be removed from the line
system database and stored in the archive.
– When to execute the maintenance schedule.
– The archiving schedule defined here will be stored in the database and can be called up
when required.
3
Fig. 3 - 25 DB maintenance
In the DB Backup Schedule panel click on the Edit button.
The DB Administrator Login dialog box will open.
3
Fig. 3 - 26 DB administrator login
Enter the access data here and confirm your entries with OK.
The input fields in the DB Maintenance dialog box will be enabled. The following details
can be defined:
– The file and path for the saved data
– A schedule specifying the intervals and times when data is to be removed from the line
system database and stored in the archive.
– When to execute the backup schedule.
– The backup schedule defined here will be stored in the database and can be called up
when required.
– Database compression with the next database maintenance.
