3.5.3 Manually Checking the SIPLACE Explorer Configuration for Problems
The configuration check can be performed both when production line monitoring is running and
when it has been stopped. 3
NOTE
Before you begin to monitor a production line with SIPLACE Explorer, always perform a
configuration check with the SE Manager. 3
3
Select the production line for which you wish to perform a configuration check, from the Line
menu of the SE Manager.
NOTE
The system only displays those production lines which have already been configured with
Line Configuration. 3
Click on the Check icon. A configuration check will be performed for the selected
production line.
– Configuration of production line OK:
If no problems were detected during the configuration check, you will see the following
information:
3
Fig. 3 - 8 Check line results
Getting Started SIPLACE Explorer 3 SIPLACE Explorer Runtime Environment
from 3.11 (R20-2) Edition 11/2020 EN
27
Click on Close. You can now continue or start production line monitoring in SIPLACE
Explorer.
– Incorrect configuration of production line:
If an incorrect configuration of the production line was detected, you will see the following
information:
3

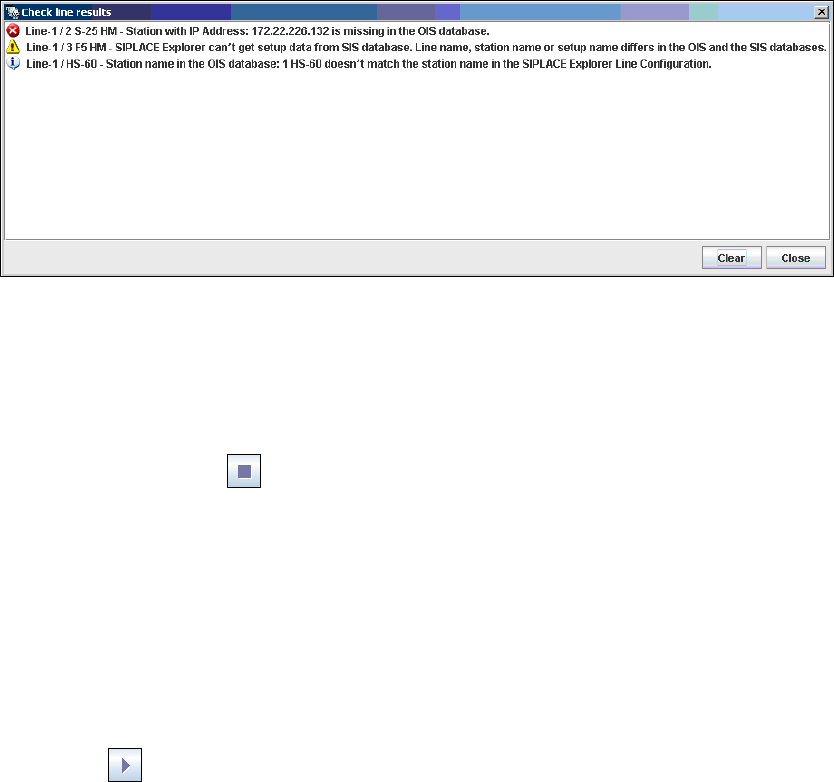

Fig. 3 - 9 Check line results
To ensure that production line monitoring brings correct and consistent data, make sure that
all the problems shown are fixed.
If you performed the configuration check during monitoring, you will need to stop the monitoring
procedure for the selected production line.
Just click on the Stop icon. 3
Fix the problems with the help of Line Configuration and regenerate the application. Follow the
instructions at “How to Edit an Existing SMA with Line Configuration” on page 51.
Perform the configuration check again, via the SE Manager.
– Configuration of production line OK:
You can now continue or start production line monitoring in SIPLACE Explorer.
To start monitoring the selected production line, click on the
Start icon. 3
– Incorrect configuration of production line:
Fix all displayed problems and then regenerate the application.
Repeat the configuration check until no more incorrect configurations are shown.You can
now continue production line monitoring.
3 SIPLACE Explorer Runtime Environment Getting Started SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
28
3.6 Line Configuration
Line Configuration is used to configure applications for simultaneous monitoring of multiple pro-
duction lines. You can also modify existing applications. If modifications have been made to the
line configuration, you will need to adjust the applications accordingly and then regenerate them.3
This section will describe the following actions: 3
– “How to create an SMA with Line Configuration” on page 28
– “Database Connection Wizard” on page 54
– “How to Edit an Existing SMA with Line Configuration” on page 51
3.6.1 How to create an SMA with Line Configuration
SMA creation consists of the following steps: 3
– Line Configuration (wizard with 7 steps)
– Establishing a connection to the database (wizard with 3 steps)
3.6.1.1 Starting Line Configuration
Open Line Configuration
Proceed by selecting Programs SIPLACE Explorer Line Configuration from the menu
in Windows or by clicking on the icon in the console. Right-click with the mouse to select
Line Configuration from the menu. 3
The Line Configuration dialog box will open. This is the first step of the Line Configuration
process.
