3 SIPLACE Explorer Runtime Environment Getting Started SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
16
3

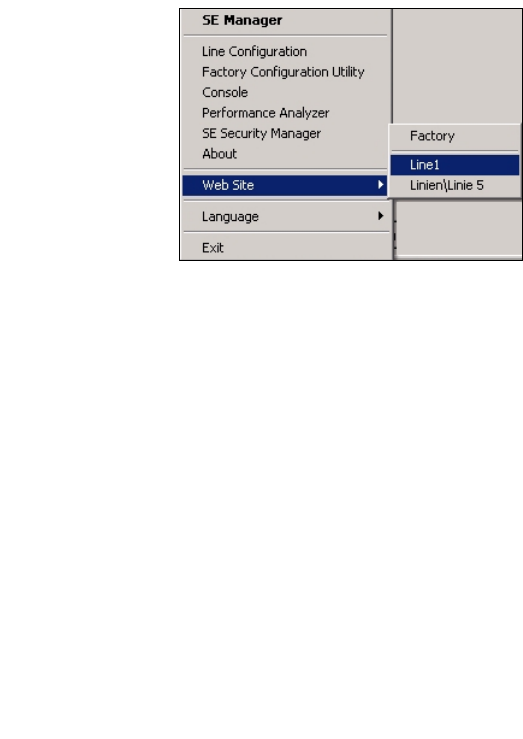

Fig. 3 - 1 RTE Windows start menu
The following options are available: 3
– SE Manager
– Line Configuration
– Factory Configuration Utility
–Console
– Performance Analyzer
– SE Security Manager
– About
–Website:
Wit this menu, you can open the websites as well as the factory website.
– Language
– Exit
These additional applications and tools can also be started via the Programs SIPLACE
Explorer menu in Windows. 3
The following options are available: 3
– Archive Browser
–Console
– Documentation
– Error Reporting
– Factory Configuration Utility
– Line Configuration
– Modify Uninstall
– Performance Analyzer
– SE Manager
Getting Started SIPLACE Explorer 3 SIPLACE Explorer Runtime Environment
from 3.11 (R20-2) Edition 11/2020 EN
17
– SE Security Manager
3.1.1 Access Privileges for Individual Runtime Environment Tools
Access to the Runtime Environment tools can be restricted or permitted as required, by using the
SE Security Manager. This access may vary, according to the individual settings in the SE Security
Manager. For details, please refer to the Section “SE Security Manager” on page 18. 3
3.2 Setting the Language
The language of the SIPLACE Explorer user interface can be set to German or English. 3
Right-click with the mouse on the icon in the console to open the selection menu.
3

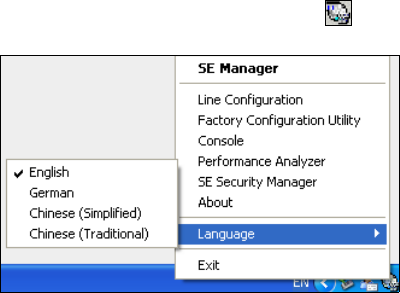

Fig. 3 - 2 RTE language selection
Select Language and choose the language you need when working with SIPLACE Explorer
Runtime Environment.
The selected language will now be used for all the menus and tools you call up.
3.3 User Management
User management is performed in SIPLACE Explorer Runtime Environment with the help of the
Factory Configuration Utility User Management tool. This feature is used to define the users, their
duties/privileges and their restrictions, for each production line. For more details, please refer to
Section “User Management” on page 86. 3
If you have not installed the Factory Configuration Utility, you will not be able to manage users in
the SIPLACE Explorer Runtime Environment. 3
In this event, you will be provided with two default users and an empty password: 3
–"Admin"
– "Operator"
3 SIPLACE Explorer Runtime Environment Getting Started SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
18
SIPLACE Explorer Runtime Environment can be operated and the relevant production line web-
sites viewed with these default users. 3
You can also manage access to the tools, with the SE Security Manager. For more details, please
refer to Section “SE Security Manager” on page 18. 3
3.4 SE Security Manager
The SE Security Manager can be used to manage access to the SIPLACE Explorer Runtime En-
vironment tools. Select a security level here and specify the data for establishing a connection to
the factory database. 3
3.4.1 Using the SE Security Manager
Start the SE Security Manager via the Programs SIPLACE Explorer SE Security
Manager menu in Windows.

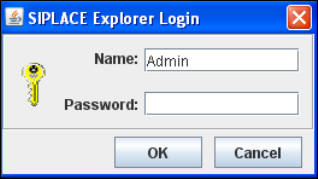

When you start the SE Security Manager for the first time, the SIPLACE Explorer login dialog
will open. Log in as a default user, with the user name "Admin" or "Operator" and with an empty
password.
3
Fig. 3 - 3 RTE - SE security manager
The SE Security Manager will open.
