4 SIPLACE Explorer Factory Configuration Utility Getting Started SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
78
4.1 Starting the SIPLACE Factory Configuration Utility
Start the SIPLACE Factory Configuration Utility via the Programs SIPLACE Explorer
Factory Configuration Utility menu in Windows.
Or click on the Factory Configuration Utility icon on your desktop.

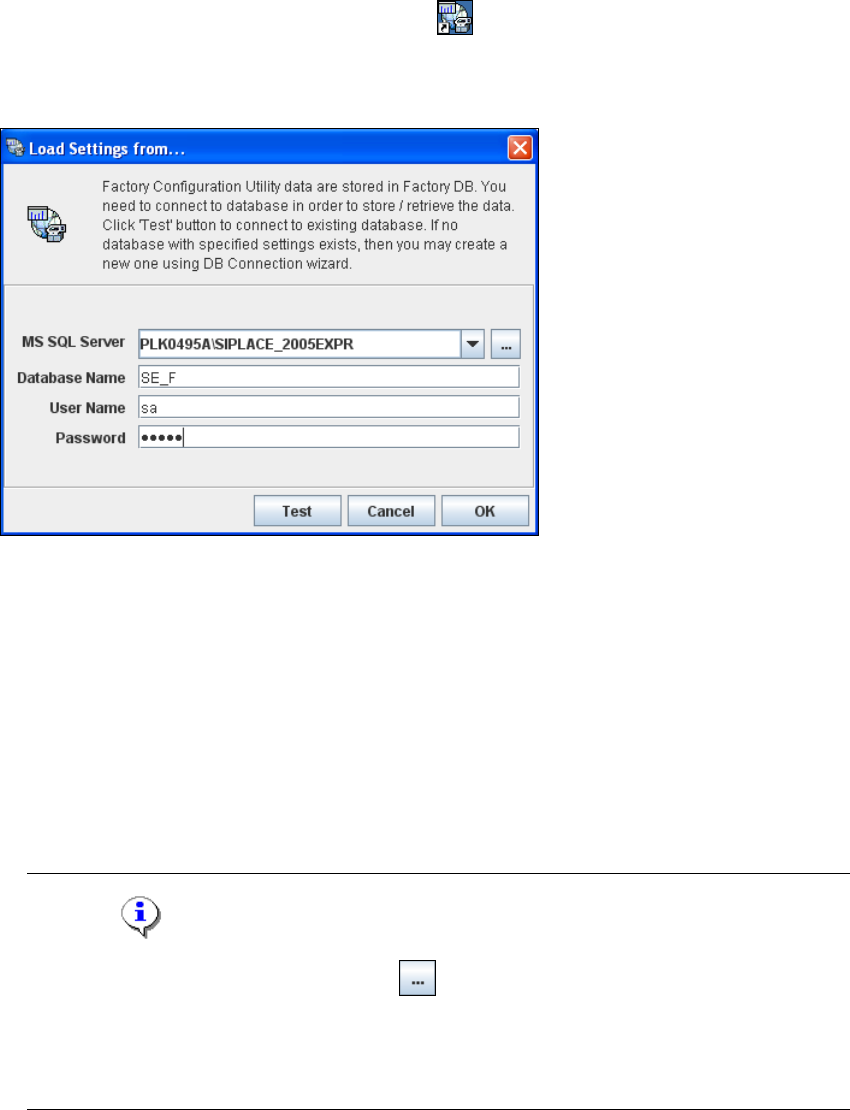

The Load settings from... dialog box will open. You need to establish a connection to the
factory database, before data can be called up.
4
Fig. 4 - 1 Loading settings
Enter the following information:
– MS SQL Server:port number
You can add the port number to the SQL Server instance, separated by a colon, for
example: PLK0495A\SIPLACE_2005EXPR:12345.
– Database name
– Database user
–DB password
NOTE
Click on the Browse for SQL instances icon. All SQL server instances available will be
shown in the Select SQL Server instance dialog box.
If the Select SQL Server instance dialog box shows no entries, you need to specify the SQL
server instance manually in the MS SQL Server field. 4
Getting Started SIPLACE Explorer 4 SIPLACE Explorer Factory Configuration Utility
from 3.11 (R20-2) Edition 11/2020 EN
79
After entering the database access parameters, we strongly recommend that you check the
connection to the database Click Test to check whether the connection to the database can be
established.
If the connection does not function properly, you will see the following information box:
4
Fig. 4 - 2 DB error
Click on the Setup DB Connection button
Start the DB Connection Wizard setup sequence, to configure the SIPLACE Explorer
factory database. Follow the instructions at “Database Connection Wizard” on page 54. 4
If the connection functions properly, you will see the following information box:
4
Fig. 4 - 3 Success
Click OK. The system will check the database data.
If the database has data from SIPLACE Explorer 2.0 - 3.10, you will need to convert the
database for SIPLACE 3.11, due to the changed data structure in the SIPLACE Explorer
3.11 database. Follow the instructions at “Converting the Database” on page 58. 4
Dependent of the database size, you can compress the database, the following information
window will open:
4
Fig. 4 - 4 Database compression
Follow the instructions at “Compressing the Database” on page 60.
After you have established the database connection and have converted the database
accordingly, you can use the Factory Configuration Utility.
The Factory Configuration Utility dialog box will open.
4 SIPLACE Explorer Factory Configuration Utility Getting Started SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
80
4.2 Configuring Production Lines
SIPLACE Explorer Factory Configuration Utility can be used to add production lines to an existing
list of lines to be monitored. This is achieved by calling up the relevant production line data from
the SIPLACE Explorer host. A list of the lines already configured in SIPLACE Explorer will be pro-
vided via the connection to the SIPLACE Explorer host. 4
If you have already configured a production line with the Line Configuration and generated a web-
site, the configured production line will automatically be added to the Factory Configuration Utility
and to the factory website. 4
NOTE
We do not recommend that you change the production line data in SIPLACE Explorer Factory
Configuration Utility. If you do so, you must also synchronize this data in the SIPLACE Explorer
host, by clicking on the Refresh lines icon. 4
After editing the data in Factory Configuration Utility, save the modified data in the factory data-
base in which all Factory Configuration Utility data are stored. During data backup, data is sent
between the SIPLACE Explorer line host and the factory host. To be more exact, data is trans-
ferred from the SIPLACE Explorer factory host to the line host and from the SIPLACE Explorer
line host to the SIPLACE Explorer factory host. 4
Transfer of data from SIPLACE Explorer factory host to SIPLACE Explorer line host: 4
– Factory calendar
– Factory database settings
– SMTP server settings
– User with password and e-mail address
Transfer of data from SIPLACE Explorer line host to SIPLACE Explorer factory host: 4
– Line names
– Line URLs
