9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.8 Foil rocker
210 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
9.8 Foil rocker
9.8.1 Foil Rocker Assembly
Required spare part

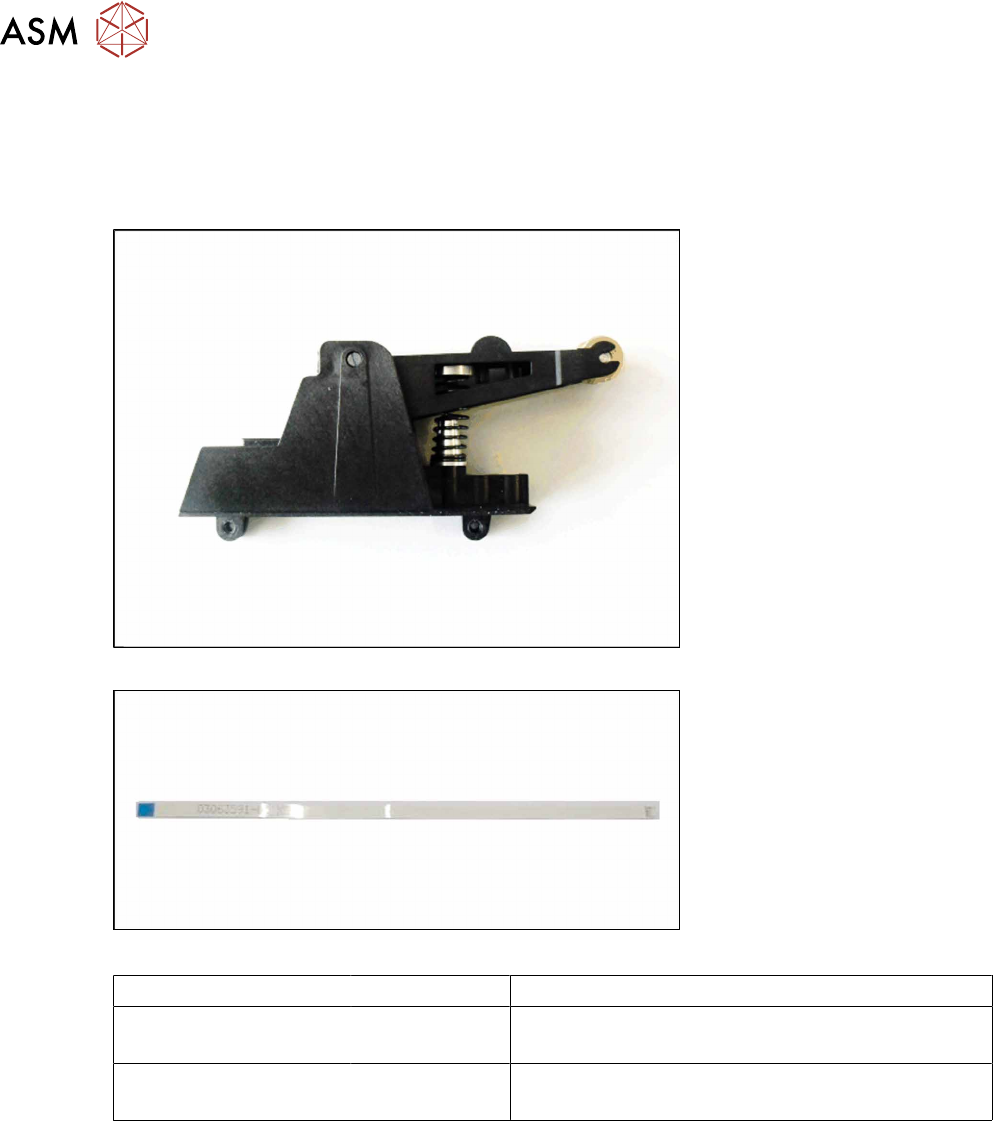

Fig.73: Foil rocker assembly
Fig.74: Cable light barrier transmitter
Feeder module Item no. Designation
SmartFeeder 12mm X 03084904Sxx
03063591-xx
Foil rocker assembly /X12x2
Cable for light barrier transmitter 2x8
SmartFeeder 16mm X 03084876Sxx
03063591-xx
Foil rocker assembly X16 V2
Cable for light barrier transmitter 2x8
Required tools
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver 0.6Nm, size T8
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.8 Foil rocker
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 211
9.8.1.1 Removing the Foil Rocker Assembly
► Remove the left side cover (see 9.3.1 "Removing
the Left Side Cover" [}184]).
► Use a T8 TORX screwdriver to remove the two
screws(1), fastening the foil rocker.
Make sure that the two spring disks DIN 127-
B2.5-A2 are not lost.
► Pull the foil rocker up and off(2).
► Turn the foil rocker into the position shown in the
diagram.
► Swing the holder on the flat ribbon connection
up(1) and pull out the cable(2).
9.8.1.2 Fitting the Foil Rocker Assembly
► Turn the foil rocker into the position shown in the
diagram.
► Swing the holder on the flat ribbon connection
up(1).
► Push the cable (with the blue side pointing up-
wards) up to the stop into the flat ribbon connec-
tion(2).
Make sure that the cable contacts lie against the
contacts on the connection.
► Swing the holder on the flat ribbon connection
down(3).
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.8 Foil rocker
212 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
► Fit the foil rocker from above into the position
shown on the feeder module(1).
► Fit one spring disk in each foil rocker and fasten
the foil rockers with the two TORX screws(2).
Use a size T8 TORX screwdriver with 0.6 Nm. for
this..
9.8.2 Roller/Roller Axle Rocker
Required spare part
Fig.75: Roller and roller axis rocker
Feeder module Item no. Designation
SmartFeeder 12mm X
SmartFeeder 16mm X
03084204- xx
03084883- xx
Roller X12 V2
Roller axis for rocker X12/X16 V2
Required tools
●
Flat-bladed screwdriver size 1
