6 Repairs to SmartFeeder 4 mm X 6.5 Pickup window 40 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 6.5.3 Removing the actuator ► Remove the pickup window 6.5.1 "Removing the Pickup Window" [ } 38] ).…
6 Repairs to SmartFeeder 4 mm X
6.5 Pickup window
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 39

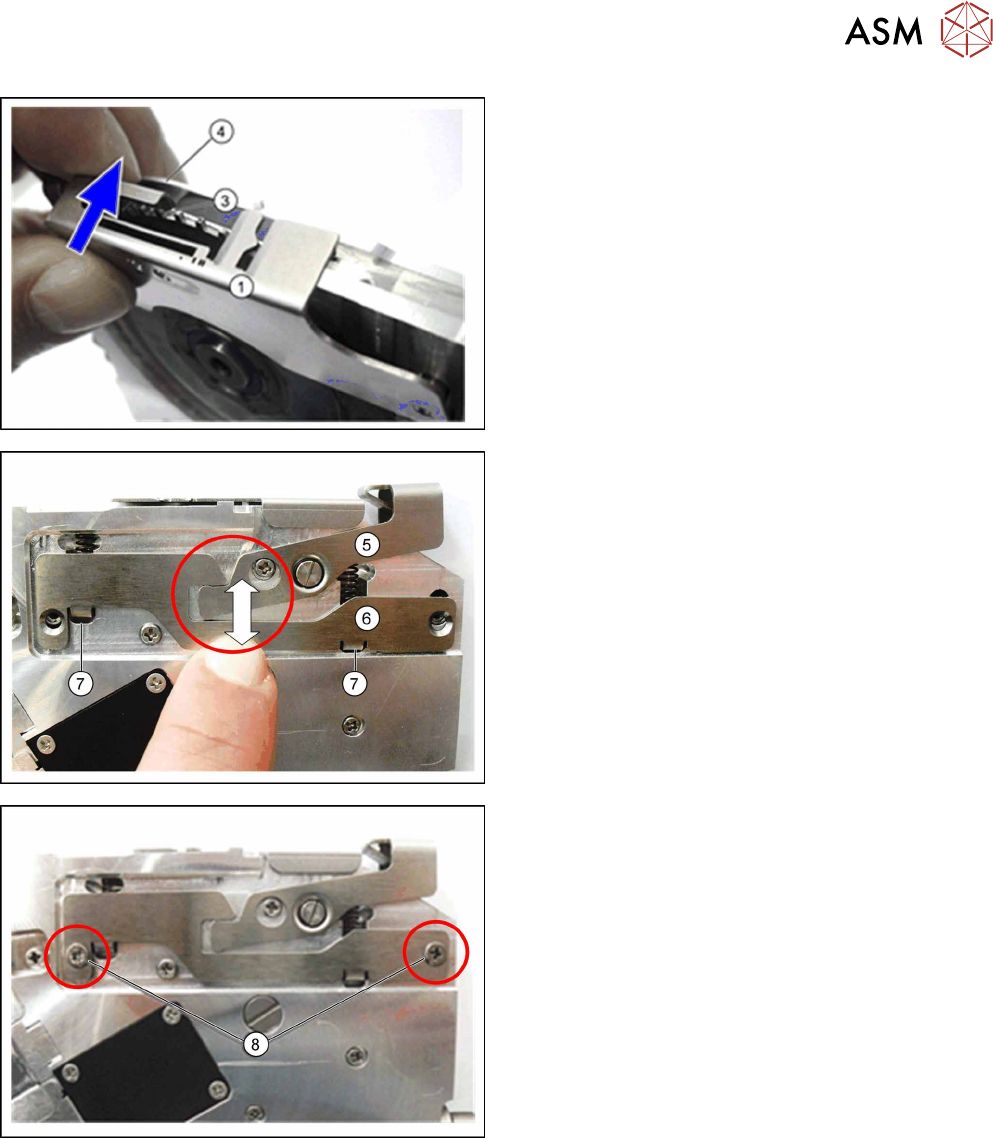

► Carefully guide the pickup window (1) over the
pin wheel (3) and over the right edge (4) of the
feeder module.
► Make sure that, in the marked area, the actu-
ator(5) for the pickup window and the counter-
plate(6) lie flat against the wall of the feeder
module and can be moved up and down.
► Take care when you insert the counterplate that
the springs(7) are completely as shown within
their guidance and that the counterplate can be
inserted neatly.
► Fasten the pickup window (hand-tight) with the
two screws(8) marked in the diagram.
Use a Phillips screwdriver and 0.6Nm.
6 Repairs to SmartFeeder 4 mm X
6.5 Pickup window
40 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
6.5.3 Removing the actuator
► Remove the pickup window 6.5.1 "Removing the
Pickup Window" [}38]).
► Remove the fitting screw shown in the diagram.
Use a 1.5mm Allen key.
► Pull the actuator on the righthand side of the
feeder module out of the base unit.
6.5.4 Fitting the actuator
► Push the actuator on the righthand side of the
feeder module into the base unit as shown.
During this, push the actuator axis into the hole
shown in the diagram.
6 Repairs to SmartFeeder 4 mm X
6.6 Splice sensor
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 41
► Fasten the actuator axis with a fitting screw
Use a 1.5mm Allen key for this.
► Fasten the pickup window (see 6.5.2 "Fitting the
Pickup Window" [}38]).
6.6 Splice sensor
NOTICE
No splice sensor for the SmartFeeder 4 mm X
There is currently no splice sensor available for the SmartFeeder 4 mm X.
6.7 Drives
6.7.1 Foil motor
Required spare part
Fig.8: Motor coupling/foil disposal X-Series
Feeder module Item no. Designation
SmartFeeder 4mm X 03050686Sxx
03028610-xx
03012488-xx
03042536-01
Motor coupling/foil disposal X-Series
Bearing block, ceramic
SN 213307-H-M2 x 2.5-A2
(for fitting the bearing block)
ISO 4762 - M 2.5 x 12-A2-70
(for fitting the motor)
