3 Getting Started with the SMA SMA Guide SIPLACE Explorer Edition 11/2020 EN from 3.11 (R20-2) 14 The columns Lot Size (num ber of boards in a recipe) and Lot Progress (percentage pro gress bar for boards already produ…
SMA Guide SIPLACE Explorer 3 Getting Started with the SMA
from 3.11 (R20-2) Edition 11/2020 EN
13
– If a line in dual conveyor mode processes different recipes on both conveyor lanes, the
table will show the recipes (and number of boards produced) for each lane separately.
Table 3
Line
Production line name. 3
In order to view existing production line websites, click on the required production lines, in the
Line column. The corresponding website will open. 3
Status
–
at least one station in production line produced a board (PCB) within last 5 minutes.
–
neither one station in production line produced a board within last 5 minutes.
OLE
Overall Line Efficiency for current day. 3
Current Recipe/Job
Current Line Recipe name, as defined for last placement machine in production line. 3
Last Recipe Change
Time when current line recipe has changed. 3
Current Board
Shows the name of the board.
Board Side
Shows the board side completed.
Completed
Number of boards produced by line since Last Recipe Change, defined as minimum value of
boards produced by machines in the production line. 3
Lot Progress
Percentage completion of current recipe total required quantity. 3
Lot Size
The required number of units to complete the scheduled job or lot. 3
3 Getting Started with the SMA SMA Guide SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
14
The columns Lot Size (number of boards in a recipe) and Lot Progress (percentage progress
bar for boards already produced in a recipe) will only display values, if the user has previously
specified the recipe size on the page ”Production Summary”. If the recipe size has not been
specified, the columns will display N/A.
Average Takt Time
Average Takt time of the last station in the production line. 3
3.1.2 Factory Website - Reports Tab
3

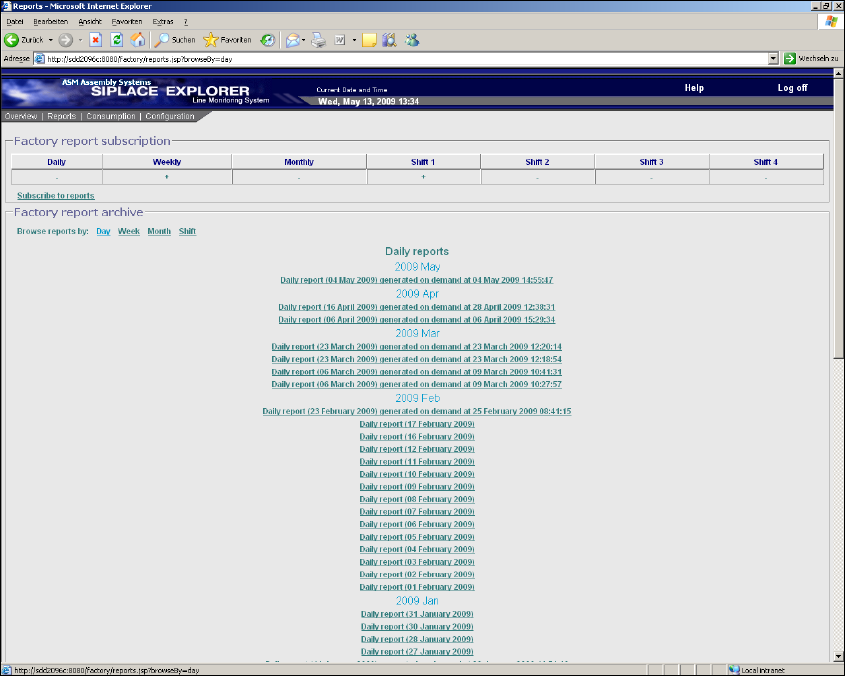

Fig. 3 - 3 Factory website - reports
The generation of reports is set here for a factory level. This page lists the reports currently de-
fined. 3
The following procedure can be performed on this page and is described in this SMA User
Guide:
“How to Subscribe the Generation of Line Reports” on page 93
SMA Guide SIPLACE Explorer 3 Getting Started with the SMA
from 3.11 (R20-2) Edition 11/2020 EN
15
3.1.3 Factory Website - Consumption Tab
The following functions are available on this page: 3
– View component consumption data for all lines or specific lines
– Filter component consumption data to locate a certain component
– View component consumption data for a certain period
– Export component consumption data as MS Excel file
3

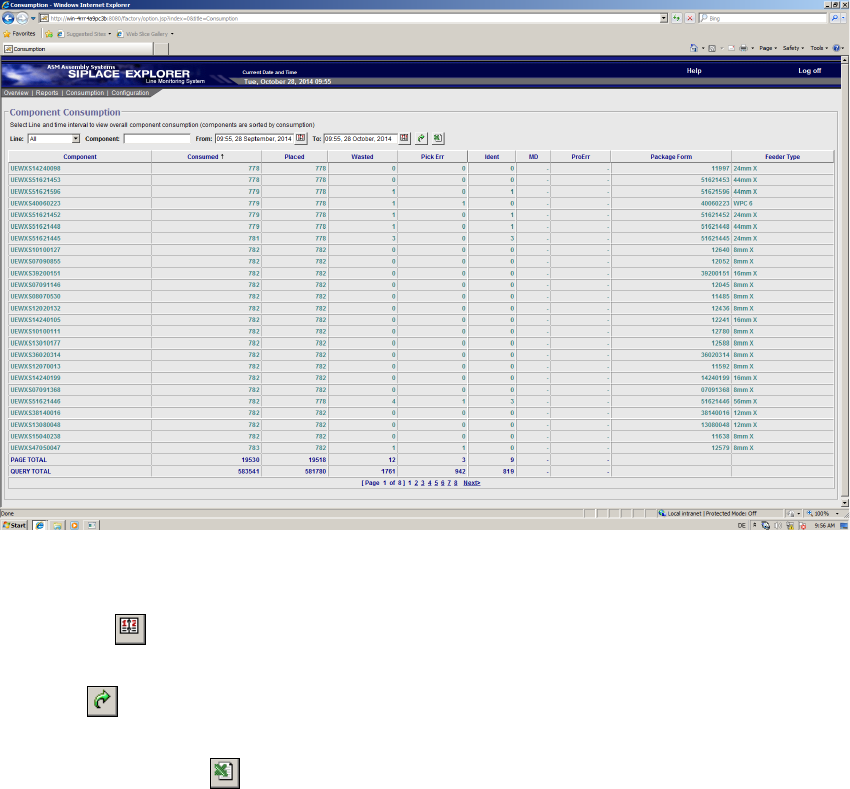

Fig. 3 - 4 Factory website - consumption
Icons 3
– Calendar
Click here to open the calendar function and set a period for data display.
– Views
Click here to update the table with the component consumption data.
– MS Excel download
Click here to download the table on this page as an Excel file.
