SMA Guide SIPLACE Explorer 3 Getting Started with the SMA

from 3.11 (R20-2) Edition 11/2020 EN

3.1.4.1 Factory Website - Configuration Tab - Line/Station

Fig. 3 - 5 Factory Website - Configuration Tab - Line/Station

Table 3

 Line

Production line name which has been added or removed or from which a station has been

added or removed.

 Station

Station name which was added or removed. 3

If a production line has been added or removed, this column shows "-". 3

 Time

Date and time of addition or removal of a production line / station.

 Description

Shows if a production line / station has been added or removed.

3 Getting Started with the SMA SMA Guide SIPLACE Explorer

Edition 11/2020 EN from 3.11 (R20-2)

3.1.4.2 Factory Website - Configuration Tab - Bypassed Station

Fig. 3 - 6 Factory Website - Configuration Tab - Bypassed Station

Table 3

 Line

Production line name from which a station has been set to the "PCB bypass" mode.

 Station

Station name which has been set to the "PCB bypass" mode.

 Start Time

Start date and time of the "PCB bypass" mode.

 End Time

End date and time of the "PCB bypass" mode.

SMA Guide SIPLACE Explorer 3 Getting Started with the SMA

from 3.11 (R20-2) Edition 11/2020 EN

3.1.4.3 Factory Website - Configuration Tab - Gantry

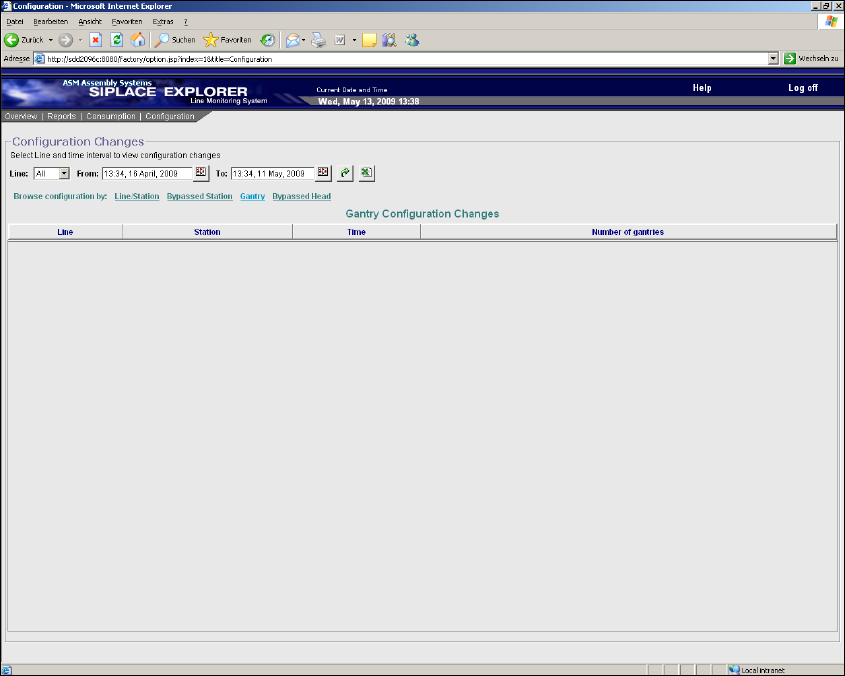

Fig. 3 - 7 Factory Website - Configuration Tab - Gantry

Table 3

 Line

Production line name.

 Station

Station name from which a gantry has been added or removed.

 Time

Date and time of addition or removal of a gantry.

 Number of gantries

Total number of configured gantries.
