4 Functions Overview SMA Guide SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
66
– Access Total by Track
A listing of consumption (accesses) listed by Feeder Location as well as total count is shown
on the label. 4
Abbreviations: 4
– Ta: Table
– Tr: Track
– D: Division
–L: Level
–T: Tower
Where Ta: 1 Tr: 49 D:2 relates a feeder location 1-49-2 4
– Pickup Errors by Track
A listing of Pickup Errors listed by Feeder Location as well as total count is shown on the label.4
Abbreviations: 4
– Ta: Table
– Tr: Track
– D: Division
–L: Level
–T: Tower
– Access Total by Component
A listing of consumption (accesses) listed by Component Name as well as total count is shown
on the label. 4
– Pickup Errors by Component
A listing of Pickup Errors listed by Component Name as well as total count is shown on the
label. 4
– Access Total by Feeder Type
A listing of consumption (accesses) listed by Feeder Type as well as total count is shown on
the label. 4
– Pickup Errors by Feeder Type
A listing of Pickup Errors listed by Feeder Type as well as total count is shown on the label. 4
– Access Total by Component Shape
A listing of consumption (accesses) listed by Component Shape as well as total count is shown
on the label. 4
SMA Guide SIPLACE Explorer 4 Functions Overview
from 3.11 (R20-2) Edition 11/2020 EN
67
– Pickup Errors by Component Shape
A listing of Pickup Errors listed by Component Shape as well as total count is shown on the
label. 4
NOTE
If data is recorded in the machine status "stand-alone", this data will not be taken into account in
the pareto diagrams for the criteria "Component", "Feeder module type" and "Component
shape". 4
The following procedures can be performed on this page and are described in this SMA
User Guide:
“How to Sort Tables” on page 96
“How to Enable Legends” on page 96
4.2.2.1 Finished Panels
From this page it is possible to view completed boards for the particular machine on an hourly ba-
sis, for the evaluation interval. Additionally it is possible to view the Average, Minimum and Max-
imum build time encountered during each hour within the evaluation interval. This page gives you
three views: 4
– Finished Panels by Hour - Bar Chart
– Build Time by Hour - Bar Chart
– Product Summary - Tabular View
4 Functions Overview SMA Guide SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
68
4

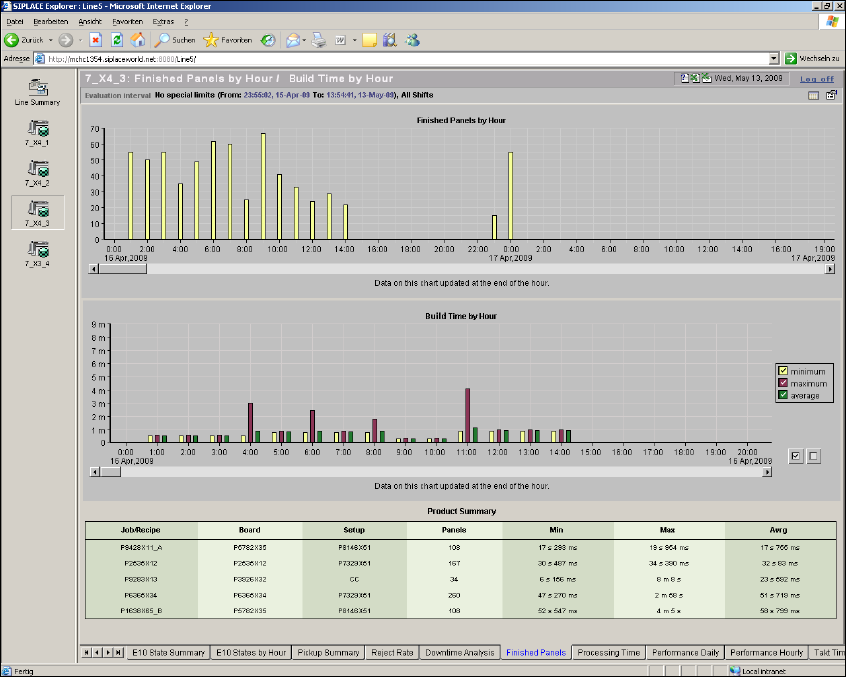

Fig. 4 - 19 Topic: 7_X4_3 - finished boards
This page gives you an overview of the production: 4
– Finished Panels by Hour (Bar Chart)
Completed boards, by hour for the evaluation interval. It is possible that more than one recipe
may be displayed within the chart, dependant on evaluation settings.
– Build Time by Hour (Bar Chart)
Build Time, by hour for the evaluation interval. It is possible that more than one recipe may be
displayed within the chart, dependant on evaluation settings. Build time, in the case of a Dual
Processing Zone Machine, such as the HS60, is the longest duration individual zone build time,
as this dictates the overall build time for the placement system. Minimum, Maximum and
Average Build time, observed by hour is represented.
– Product Summary (Table)
A listing of each recipe processed within the evaluation interval. Completed count of the recipe,
as well as build time summary is included.
