5 Using the SMA SMA Guide SIPLACE Explorer Edition 11/2020 EN from 3.11 (R20-2) 92 5 Fig. 5 - 3 Line report Click on Close . Y ou will receive the specified re ports as Excel files per e-m ail, at the time of issuance.
SMA Guide SIPLACE Explorer 5 Using the SMA
from 3.11 (R20-2) Edition 11/2020 EN
91

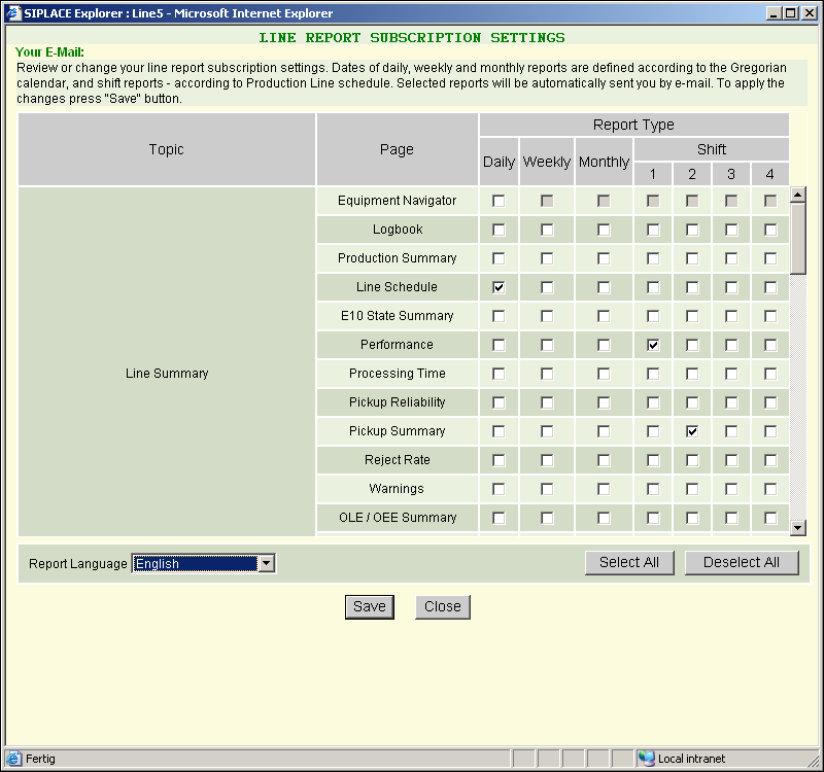

A new browser window Line Report Subscription Settings will open. 5
5
Fig. 5 - 2 Line report
Your e-mail address will be shown in the Your E-Mail field.
Select the topics and pages for which the report is to be generated: You must also specify the
period for which the report is to be generated: daily, weekly, monthly and/or for individual shifts.
Enable the corresponding checkboxes.
Set the report language at Report Language. German and English are available.
Check your entries and confirm with Save. Click Close if you want to leave this window without
saving your entries.
Once you have saved your entries, another notification box will open.
5 Using the SMA SMA Guide SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
92
5

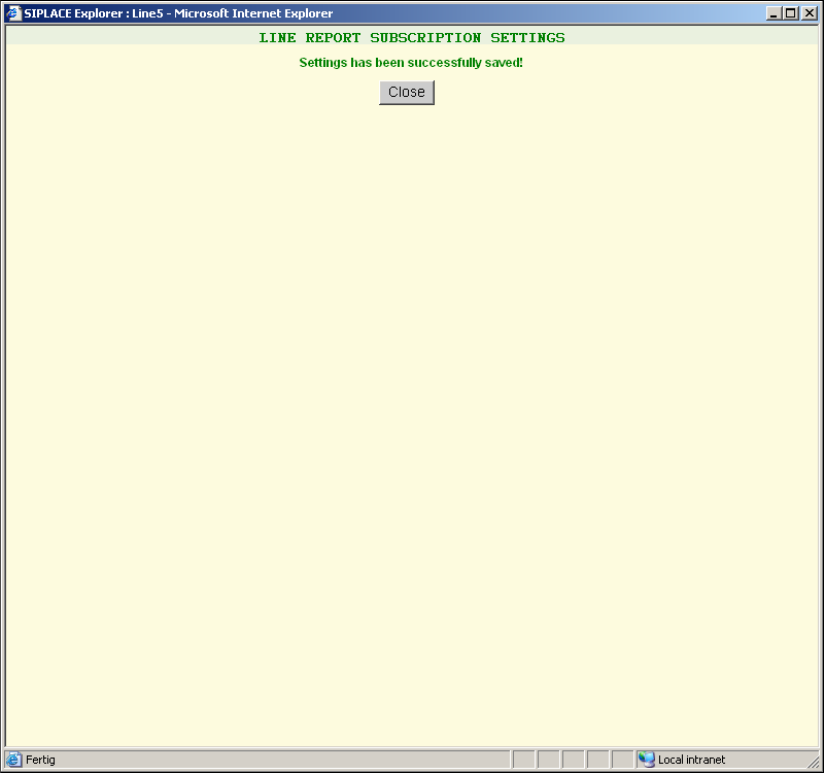

Fig. 5 - 3 Line report
Click on Close. You will receive the specified reports as Excel files per e-mail, at the time of
issuance.
SMA Guide SIPLACE Explorer 5 Using the SMA
from 3.11 (R20-2) Edition 11/2020 EN
93
5.1.2 How to Subscribe the Generation of Line Reports
Select the Factory Website - Overview Tab.
Click on the Subscribe to Reports button. A new browser window - Factory Report
Subscription - will open.
5

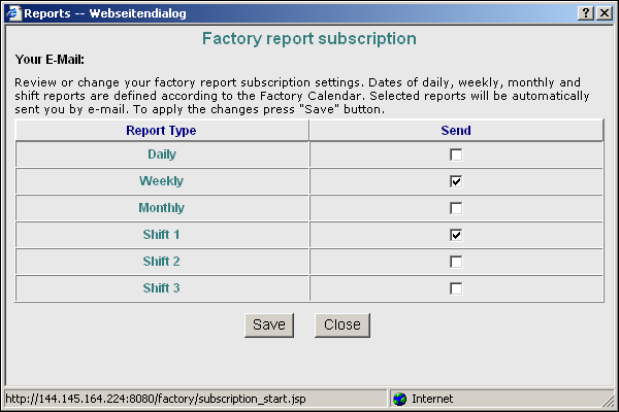

Fig. 5 - 4 Factory website - factory report subscription
Your e-mail address will be shown in the Your E-Mail field.
Select the period for which the report is to be generated: daily, weekly, monthly and/or for
individual shifts. Then enable the corresponding checkboxes. The selected reports will be
generated for all existing lines.
Check your entries and confirm with Save. Click Close if you want to leave this window without
saving your entries.
Once you have saved your entries, another notification box will open.
