SMA Guide SIPLACE Explorer 4 Functions Overview
from 3.11 (R20-2) Edition 11/2020 EN
53
4.1.10 Reject Rate
This page shows you a summary of rejected components, by line. 4
The information is shown in a pareto diagram. Select the items you wish to view from the drop-
down menu list: 4
– Reject rate by feeder location and component
– Reject rate by feeder location
– Reject rate by component
– Reject rate by package form
4

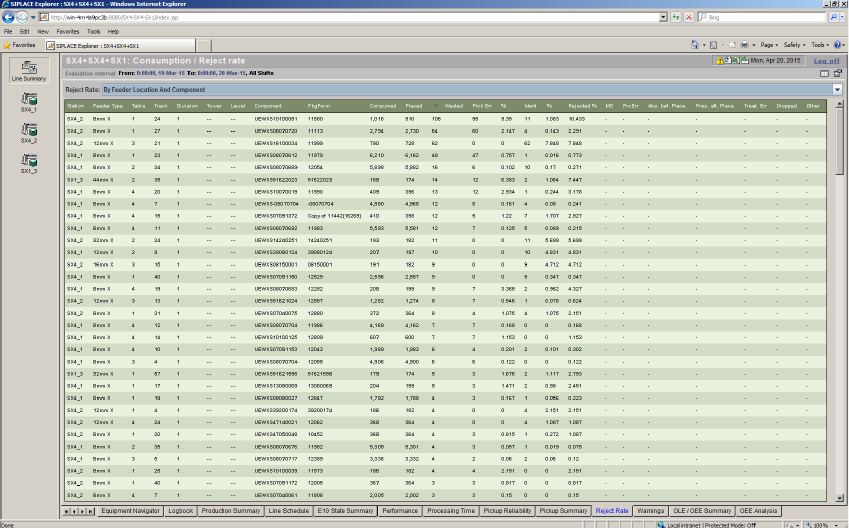

Fig. 4 - 11 Reject Rate
The following procedures can be performed on this page and are described in this SMA
User Guide:
“How to Specify the Generation of Line Reports” on page 90
“How to Sort Tables” on page 96
“How to Enable Legends” on page 96
4 Functions Overview SMA Guide SIPLACE Explorer
Edition 11/2020 EN from 3.11 (R20-2)
54
4.1.11 Warnings
This page shows all existing warnings and all warnings for which the corresponding problems
have been fixed. You can also access this page by clicking on the warning symbol on another
SMA page. 4
4

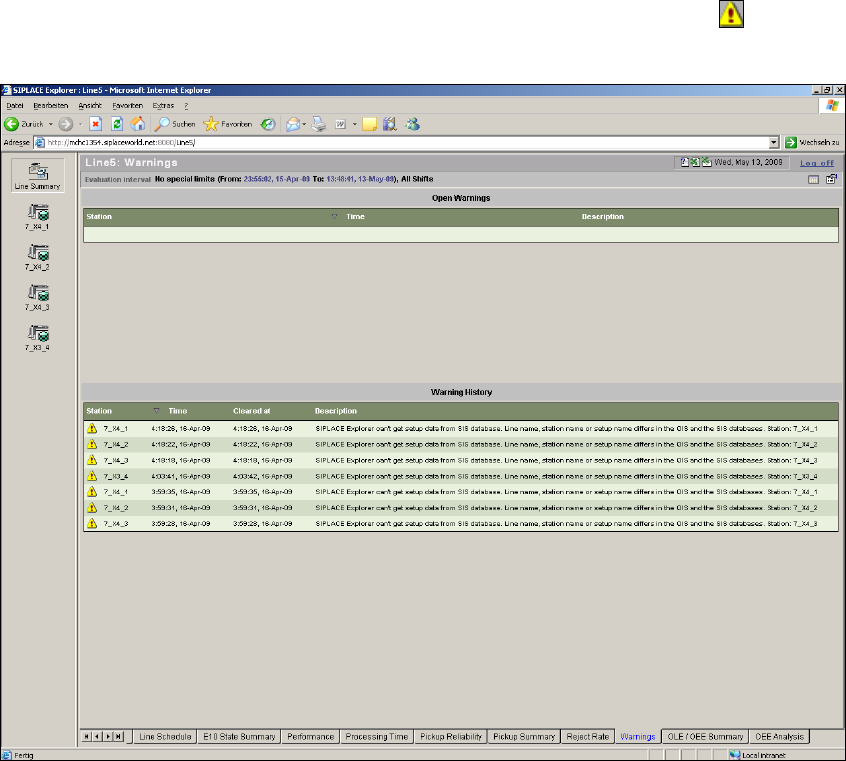

Fig. 4 - 12 Warnings
This page contains two tables: 4
– Open Warnings
Shows all current warnings for the production line overview and for each individual machine.
– Warning history
Shows all warnings for which the corresponding problems have been fixed.
The warnings are issued if a certain incorrect production line configuration is detected by the sys-
tem. These incorrect configurations can be detected either by manual or automatic checks. For
further information please refer to SIPLACE Explorer Getting Started. 4
