4 Functions Overview SMA Guide SIPLACE Explorer Edition 11/2020 EN from 3.11 (R20-2) 86 SIPLACE Explor er assigns the component s to the boards on whi ch the se have been pl aced. If a query is sent to SIPLACE Ex plore r…

SMA Guide SIPLACE Explorer 4 Functions Overview

from 3.11 (R20-2) Edition 11/2020 EN

– Material Defects:

Number of coplan or material errors detected by the vision system. 4

– Process Error:

Number of process errors that occurred. 4

– Absence before placement

Number of components that have not been not on the head nozzle after component

pickup. 4

– Present after placement

Number of components that are still on the head nozzle after placement. 4

– Treat. error

Number of components that have been rejected during the process step of dipping or

gluing. 4

– Dropped

Number of components that have been rejected after board abortion. 4

– Definition of Component Sum

Component Sum = (S placed Components + S errors) 4

– Definition of Total Component Rejects

Total Rejects = (S Identification errors + S Vacuum errors) 4

– Definition of Total Rejects %

Rejected % = (S Total Rejects / (S placed Components + S errors)) * 100 4

– Definition of Vacuum Error %

Vacuum Error % = (S vacuum error / (S placed Components + S errors)) * 100 4

– Definition of Identification Error %

Identification Error % = (S identification error / (S placed Components + S errors)) * 100 4

4.2.3.1 Possible discrepancy between SIPLACE Explorer and OIS placement data

The number of consumed components, rejects and boards may differ between SIPLACE Explorer

and OIS. 4

In OIS each data record has a timestamp (consumed components, rejected components and each

board). If an OIS query is sent via SQL Query to OIS, for the consumption quantity within a certain

period, it will return the number of component records which have a timestamp within the specified

period. 4

4 Functions Overview SMA Guide SIPLACE Explorer

Edition 11/2020 EN from 3.11 (R20-2)

SIPLACE Explorer assigns the components to the boards on which these have been placed. If a

query is sent to SIPLACE Explorer for the consumption within a certain period, it will return the

number of components which were placed on the boards produced during the specified period.

This difference is most obvious in production runs using 2 placement areas. 4

The following diagram illustrates the difference. 4

Example: 8 boards are produced by a machine with 2 placement areas. The diagram shows three

timelines: 4

– Components for placement area 1

– Components for placement area 2

–Boards

The components X, on the timeline for placement area 1, show the possible timestamps for com-

ponents which have been placed on board X. 4

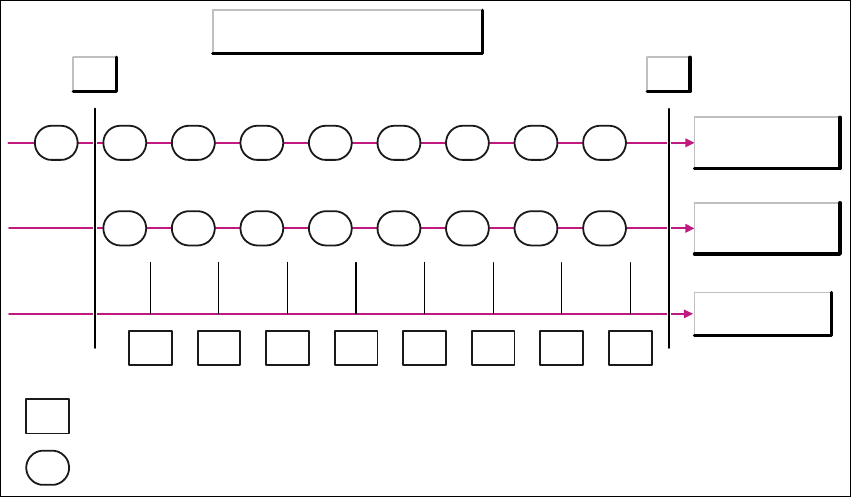

Fig. 4 - 24 Possible discrepancy between SIPLACE Explorer and OIS placement data

If an OIS query is started via SQL Query for the period between T1 and T2, this will return the total

number of components which have been placed on all 8 boards, minus the number of compo-

nents, which were placed on board 1 in placement area 1. 4

If you start the same query via SIPLACE Explorer, this will return the total number of components

which were placed on all 8 boards. 4

In this example, the quantity returned by SIPLACE Explorer will be higher than that from OIS. 4

Timestamp of the placement data

Components

Placement area 1

Components

Placement area 2

Boards

1 2 3 4 5 6 7 8

T1 T2

1 2 3 4 5 6 7 8 9

= Board

= Component record

SMA Guide SIPLACE Explorer 4 Functions Overview

from 3.11 (R20-2) Edition 11/2020 EN

However, this is not always the case. If board 9 is placed (in placement area 1 in the diagram),

SIPLACE Explorer will not count the components placed on this board and will return less than

OIS. 4

For the same reason, deviations between OIS and SIPLACE Explorer can also occur during the

determination of component reject quantities. 4

The following procedures can be performed on this page and are described in this SMA

User Guide:

 “How to Sort Tables” on page 96

 “How to Enable Legends” on page 96

4.2.4 Takt Time

Fig. 4 - 25 Topic 7_X4_3 - Takt time

This page shows the Takt times actually achieved and the set Takt times. If dual conveyor mode

is being used and if different recipes are being processed on lanes 1 and 2, the Takt time will be

shown in a different color for each lane.The example shows green and yellow. 4
