3-41 3 Periodic maintenance items 3.2.3 Cleaning and lubricating the vacuum selector (spool) T he RS head switches between v acuum and blow by w ay of an up and down spool mo vement in each head. T he spool should be cle…
3-40
3
Periodic maintenance items
5
Insert the jig into RS head.
Insert the jig deeply into RS head facing up
grease applied surface as shown at right.
533F2-N9-00
6
Spread the grease.
1. Turn the jig approx. twice.
2. Spread the grease turning R gear
manually after removing jig.
n
NOTE
Spread the grease with visual checking as the R gear
spins around by turning it.
533F3-N9-00
7
Apply grease again.
Apply grease again by repeating Step 3 to 6.
Check visually that grease is applied to
entire surface of shaft tip.
8
Wipe off grease.
1. Wipe off grease collected on the bottom
of shaft with cotton swab.
2. Wipe off grease on the diffuser plate with
wiper or cloth.
3. Wipe off grease on the jig with cloth.
After cleaning the jig, close the cap and
store the jig.
533F4-N9-00
c
CAUTION
Do not use solvent such as ethanol as it may remove
paint on diffuser.
Inserting jig
Step 5
Insert jig deeply.
Spreading grease
Step 6
Turn R gear to
spread grease.
Wiping off grease
Step 8
Wipe off grease on bottom of shaft and
diffuser plate.
3-41
3
Periodic maintenance items
3.2.3 Cleaning and lubricating the vacuum selector (spool)
The RS head switches between vacuum and blow by way of an up and down spool movement in each head.
The spool should be cleaned and lubricated about every 3 months as a general guide.
Lubricating the spool requires the dedicated grease (grease for spool: GREASE 30G KMB-M3854-00X).
1
Prepare for work.
e
1. Remove all items sensitive to magnetic fields such as wristwatches and magnetic ID cards.
2. Press the emergency stop button and then open the machine safety cover.
3. Use the CLAMP ON/OFF switch to lower the feeder exchange carriage and detach it.
4. Move the head unit to a convenient position for maintenance work.
2
Pull out the spool.
Grip the upper side of the spool with fingers
and pull out the spool upward.
53389-N9-00
n
NOTE
If the spool is in a position where difficult to remove, turn
the rotary unit referring to "How to lower RS head/nozzle
shafts" described earlier. The rotary unit can also be
turned by turning the R-axis gear manually.
c
CAUTION
Remove the spool completely. Turning the rotary unit
while removing the spool may cause contact with the
V-axis (Valve axis / spool up-down axis).
3
Clean the spool.
Wipe off old grease and dirt on the spool
with a lint-free cloth.
4
Apply grease.
Apply a thin uniform coat of the specified
grease (dedicated grease for spool) by
hand to the spool.
53390-N9-00
5
Return the spool to its original
position.
Insert the spool all the way to its original
position.
c
CAUTION
Firmly insert the spool all the way to its original position.
Turning the rotary unit while inserting the spool may
cause contact with the V-axis (Valve axis / spool
up-down axis).
6
Clean and lubricate the other
spools.
1. Clean/lubricate rest of spools with the
same procedures as Step 2 to 5.
2. Remove square cloth after working.
Pulling out the spool
Step 2
Spool
R-axis gear
V (valve) axis
Lubricating the spool
Step4
Apply grease here.
Spool
3-42
3
Periodic maintenance items
n

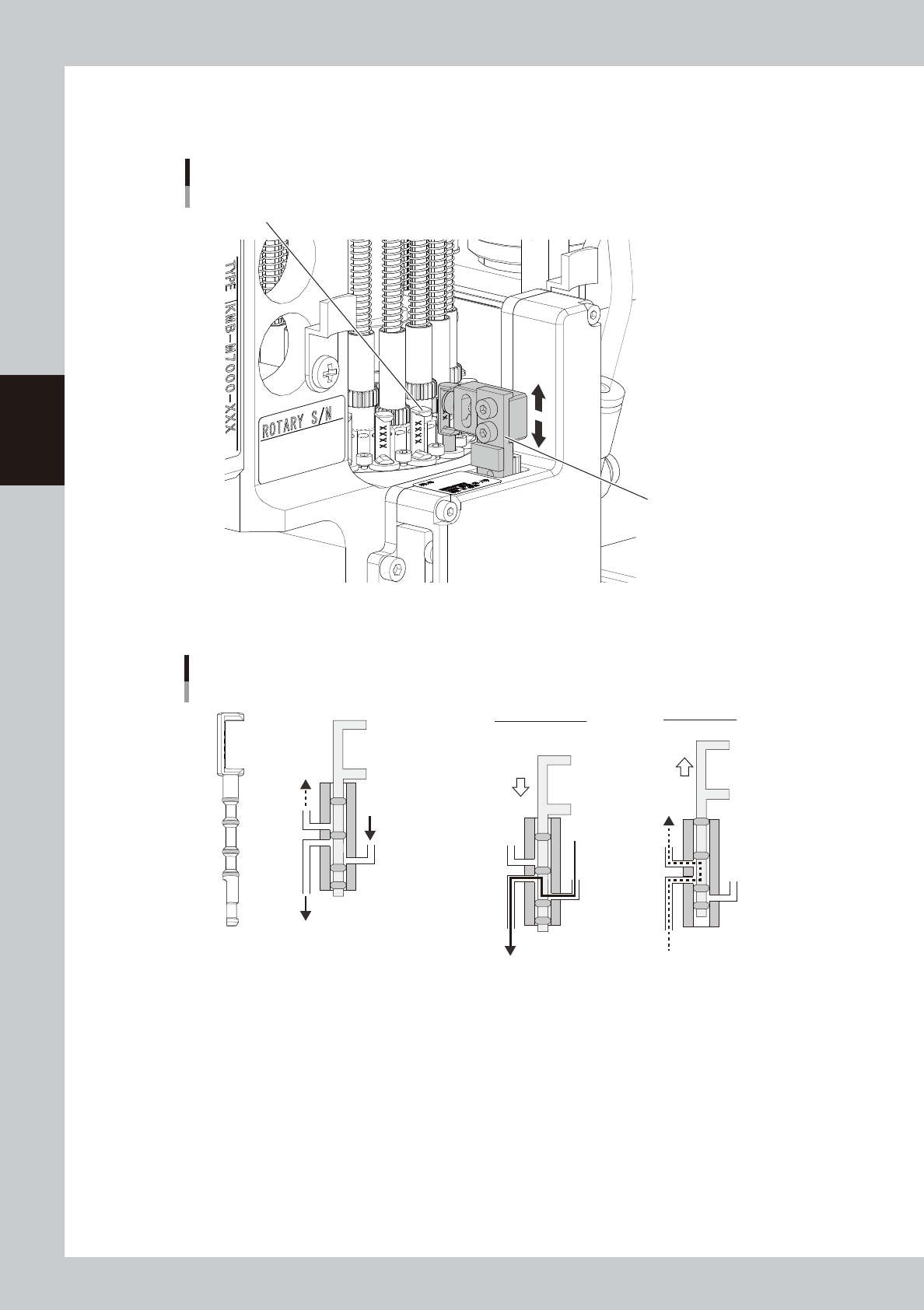

Switching Vacuum/Blow with spool
The spool is moved up/down by moving up/down V-axis on the left and right of RS head unit.
Moving up/down spool with V-axis
Spool
Moving up/down spool with V-axis
533G6-N9-00
Switching Vacuum/Blow is performed by moving up/down the spool on each head of RS head unit.
Spool
To nozzle shaft
Blow (air)
Vacuum
Spool is down
Spool is up
Blow (air)
Vacuum
533G7-N9-00
