1-12
1
Maintenance
2.2 Replaceable parts
The replacement parts shown here are for parts which could cause machine stops if they fail or if they cease to
function properly due to their life expiration. No machine adjustments are required after replacing these parts.
The replacement procedures are explained below.
2.2.1 MU head unit
Replaceable parts
MU head unit (illustration shows the cover, connector, and air hose detached)
Switching valve
Blow valve
Joint
Filter-side joint
53103-N9-00
Name Part Name Part No. Note
Blow valve VALVE KLF-M7152-00X For MU head unit
Switching valve VALVE KLF-M7153-00X For MU head unit
Joint JOINT KLF-M7154-00X
Filter-side joint FILTER JOINT KLF-M7155-00X
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
1-13
1
Maintenance

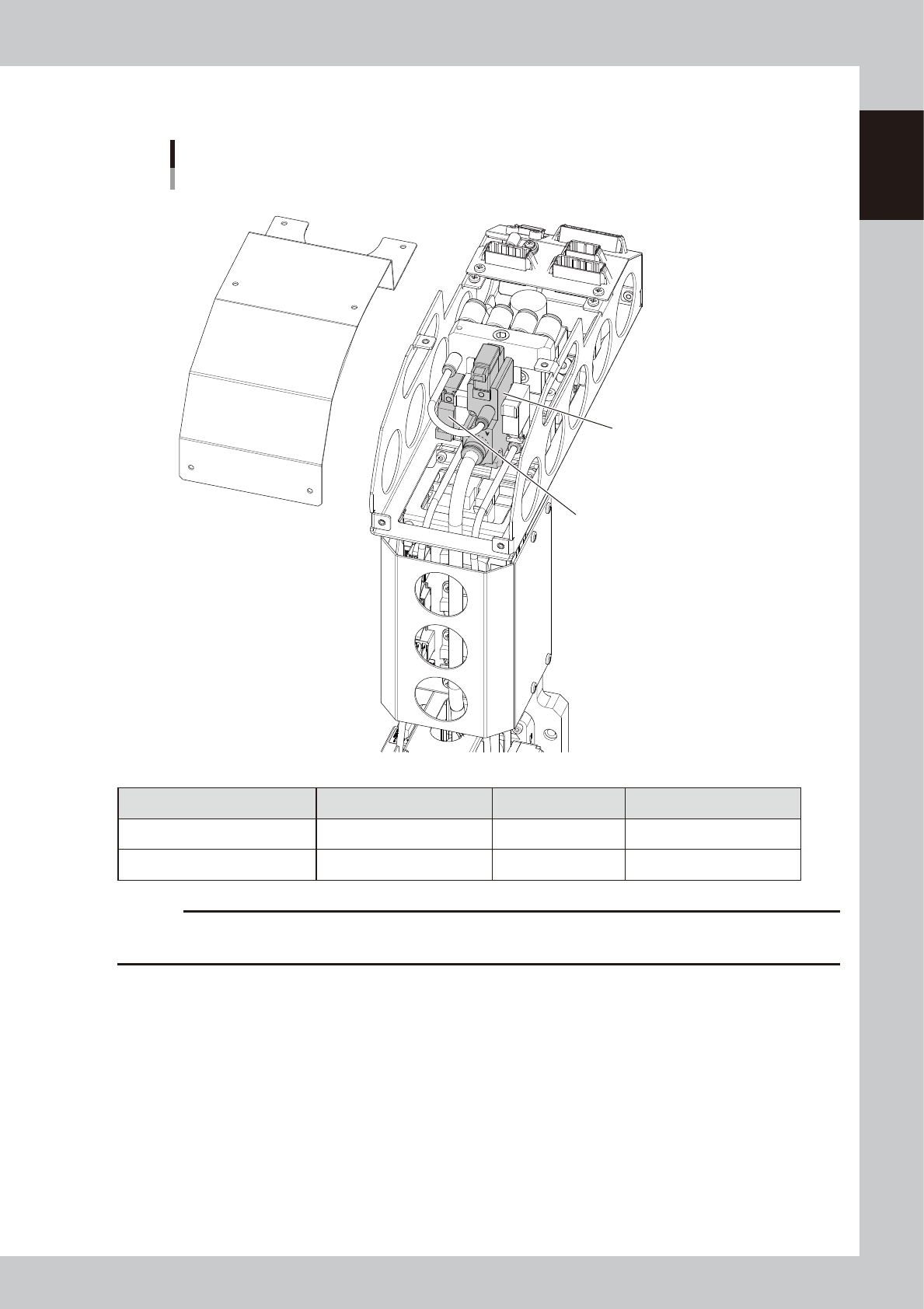

2.2.2 RS head unit
Replaceable parts
RS head unit (with cover removed)
Blow-pressure switching valve
Vacuum switching valve
53104-N9-00
Name Part Name Part No. Note
Blow-pressure switching valve VALVE KMB-M7053-00X
Vacuum switching valve VALVE KMB-M7052-00X
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
