2-5
2
Daily maintenance items
3

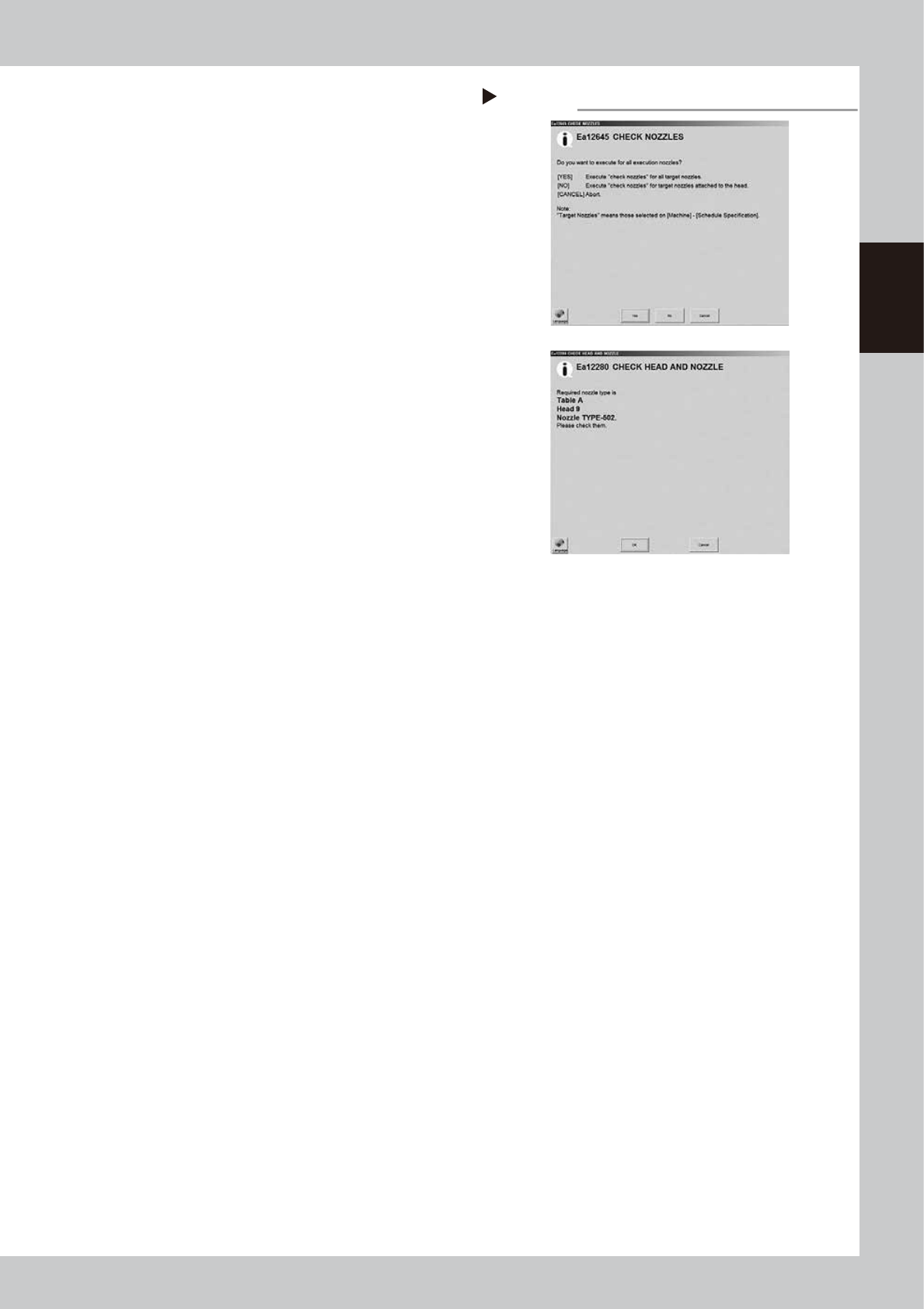

Select the item to be executed.
After checking the displayed message,
select the desired button.
54201-N9-00
n
When selected [Yes]
Performs auto nozzle change and checks all relevant
nozzles.
n
When selected [No]
Checks relevant nozzles of all nozzles currently
attached to the head.
4
Check the message.
Check the message. If the result is Not OK,
clean the nozzle referring to "1.2 Nozzle
cleaning" in Chapter 3.
Selecting item to be executed
Step 3
When selected [No]
2-6
2
Daily maintenance items
n
How to check for clogged nozzles (on the [Unit]-[Head] tab screen)
The term "clogged nozzle" used here indicates that material such as solder is adhering to the nozzle hole, causing a rise
in negative pressure even if no component is being picked up by the nozzle. This state might cause problems such as
component mounting errors. Check for clogged nozzles with the following procedures.
As the procedures of MU head, FL head and RS head differ, each procedure is described separately.
n
MU head and FL head
The following is the description of MU head with Type 502A nozzle as an example.
n
NOTE
When checking other nozzles and their vacuum levels, see "1.1.1 Vacuum level when nozzle is open" in this chapter.
e
1
Attach the nozzle.
Press the emergency stop button and attach
Type 502A nozzles to heads on selected
table to be checked. When the machine
has a nozzle station, press the [Nozzle
Change] button to change the nozzles.
54202-N9-00
2
Reset the numerical figure.
1. Open the [Unit] - [Head] tab screen.
Press the [Table selection] button and
select the table that has the head to be
checked.
2. Press the [Reset] button on the lower
right of the screen to reset the vacuum
level values.
3
Generate negative pressure.
Press the [Vacuum] buttons on the [Unit]
- [Head] tab screen for the head to be
checked. When the value starts rising, wait 5
to 10 seconds and set to OFF. Perform this
task to all tables.
n
NOTE
The figure at right shows an example of the MU head.
4
Check the vacuum levels.
1. Check all "Max" values shown in red on
the [Head] tab. If the value is 75 or less, it
is in normal range.
2. If the value is higher than 75, the nozzle
hole might be dirty. See "1.2 Nozzle
cleaning" in Chapter 3 to clean the
nozzle.
54203-N9-00
n
NOTE
If a correct value cannot be obtained from steps 1 to 4 even after cleaning nozzle, the interior of the spline shaft
might be dirty.
Negative pressure generation
Step 1 to 3
[Nozzle Change] button[Vacuum] button [Reset] button
Table Select button
Negative pressure check
Step 4
2-7
2
Daily maintenance items
n
RS head
The following is the description of RS head with Type 7203A nozzle as an example.
n
NOTE
See "1.1.1 Vacuum level when nozzle is open" in this chapter for nozzle other than Type 7203A.
e
1
Attach the nozzle.
Press the emergency stop button and attach
Type 7203A nozzles to heads on selected
table to be checked. When the machine
has a nozzle station, press the [Nozzle
Change] button to change the nozzles.
54206-N9-00
2
Release the "Emergency Stop"
status.
n
NOTE
Perform the RS head vacuum check when the servo is
ON.
3
Reset the numerical figure.
1. Open the [Unit] - [Head] tab screen.
Press the [Table selection] button and
select the table that has the head to be
checked.
2. Press the [Reset] button on the lower
right of the screen to reset the vacuum
level values.
n
NOTE
The negative pressure check of RS head can only be
performed per head individually.
4
Generate negative pressure.
1. Press the [Rod Select] button and select
any rod (Valve axis: spool up-down axis).
Either rod 1 or rod 2 can be selected.
2. If pressing the [Head Select] button to
select the head to be checked, the
rotary of the head unit starts rotating and
the selected head moves under the
selected rod.
3. If pressing the [Vacuum Check] button,
the vacuum pump is activated and the
selected head becomes negative
pressure. When this value starts rising,
wait 5 to 10 seconds and press the
[Vacuum Check] button again and set to
OFF.
5
Check the vacuum levels.
1. Check all "Max" values shown in red on
the vacuum pressure result. If this value is
200 or less then it is in normal range.
2. If higher than 200, then the nozzle hole
might be dirty or the filter clogging might
be detected. See "1.2 Nozzle cleaning"
or "2.6.1 Inspecting and replacing the air
filters" in Chapter 3 to Clean the nozzle or
replace the filter.
Step 1 to 4
[Nozzle Change] button
[Rod Select] button
[Head Select] button
[Reset] button
Table Selec button
RS head negative pressure generation
Vacuum pressure result
[Vacuum Check] button
