1-14
1
Maintenance
2.2.3 FL head unit
Replaceable parts

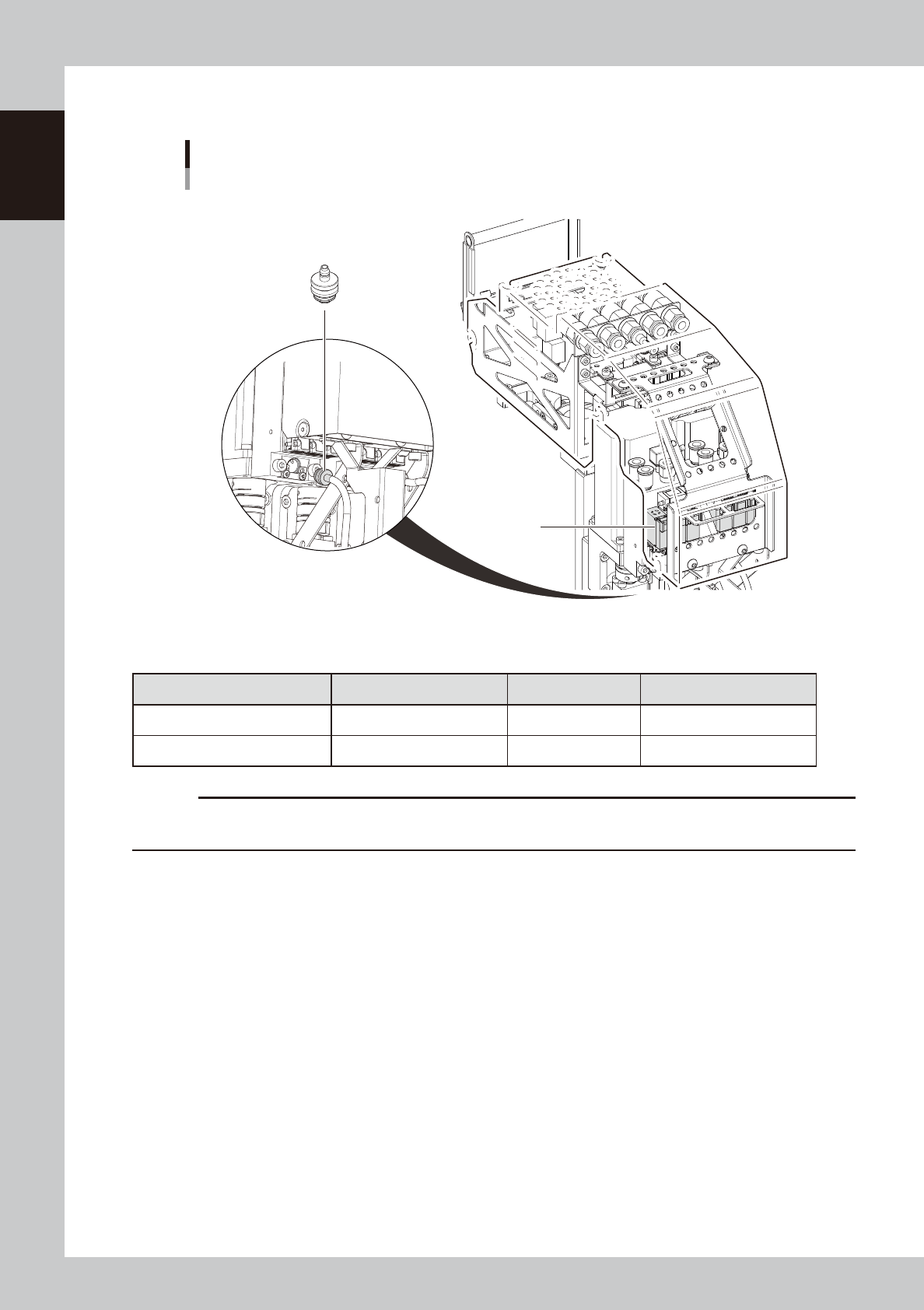

FL head unit (illustration shows connector, and air hose detached)
Switching valve
Filter-side joint
53105-N9-00
Name Part Name Part No. Note
Switching valve VALVE KLF-M7153-00X
Filter-side joint FILTER JOINT KLF-M7155-00X
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
1-15
1
Maintenance
2.3 Maintenance tools
2.3.1 Cleaning tools
Cleaning tools
Parts supplied with machine
Feeder plate cleaning brush
Nozzle cleaning wire Nozzle tip cleaning tape
Spline brush for RS head pipe
53106-N9-00
n
Cleaning tools (Parts supplied with machine)
Name Part Name Part No. Note
Nozzle cleaning wire NEEDLE ASSY KV8-M8883-A0X
Nozzle tip cleaning tape TAPE, CLEANER KGT-M8895-00X Double-sided tape
Feeder plate cleaning brush BRUSH, FEEDER KV7-M8880-20X
Spline brush for RS head BRUSH, SPLINE KMB-M3858-00X 5 pcs
Hook for cleaning brush HOOK KGA-M13B9-00X
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
n
NOTE
Using nozzle tip cleaning tape (double-sided tape) is effective after cleaning nozzles with an ultrasonic cleaner
(option) or IPA.
1-16
1
Maintenance
Cleaning tools
Optional parts
Nozzle cleaning wire handle
Vacuum assembly
Spline shaft cleaning kit
Air blow tool
CLEANER, VISION SET
Cleaning wiper
Cotton swab (15 cm)
Blower brush
Lens cleaner and cleaning paper
53107-N9-10
n
Cleaning tools (Optional parts)
Name Part Name Part No. Note
Nozzle cleaning wire handle NEEDLE CLEANER ASSY KV8-M8881-A0X Special Tool
Air blow tool AIR BLOW TOOL KU4-M8590-00X
Cotton swab (15 cm) SWAB KGA-M3802-00X
CLEANER, VISION SET
(KHW-M3801-A0X)
Blower brush BLOWER KGA-M3803-00X
Lens cleaner, Cleaning paper CLEANER, LENS KGA-M3801-00X
Spline shaft cleaning kit CLEANING KIT KHN-M8860-00X
Vacuum assembly VACUUM ASSY KHY-M88V0-A0X For cleaning (vacuum)
Cleaning wiper WIPER KGS-M3840-00X
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
