3-10
3
Periodic maintenance items
Attach nozzles at the nozzle station in the reverse order of detaching.
1
Check the nozzle setting positions.
Check that other nozzles are not set to the nozzle storage positions and the setting position is correct.
n
NOTE
See the nozzle placement position label attached in the machine or the machine setting for the nozzle setting
position.
2
Set the nozzles to the tool.
c
CAUTION
The positioning pins are in each nozzle storage position at the nozzle station to avoid setting the incorrect type of
nozzle and the incorrect nozzle setting direction. Take precautions about the nozzle setting position and the nozzle
setting direction when setting the nozzles to the tool.
e
3
Open the nozzle station shutter.
1. Press the emergency stop button and then open the machine safety cover.
2. Open the [Unit] - [Head] screen and select desired head unit from "Table Select".
3. Press the [Nozzle. Stn Shutter] button to open the nozzle station shutter.
4
Set the tool on the nozzle station.
1. Set the tool that the nozzles were set in Step 2 to the relevant position of the nozzle station.
2. Check that the nozzles are set securely to the nozzle station.
5
Close the nozzle station shutter.
Press the [Nozzle. Stn Shutter] button again and close the nozzle station shutter.
6
Raise the tool up.
1. Raise the tool up vertically and slowly and detach the nozzles from the tool.
2. Close the machine safety cover and cancel the emergency stop.
n
NOTE
Raise the tool up vertically and slowly to avoid the nozzle tip from hitting the shutter, etc.
c
CAUTION
If raising the tool up fast and forcibly, nozzles or the nozzle station may be damaged.
n

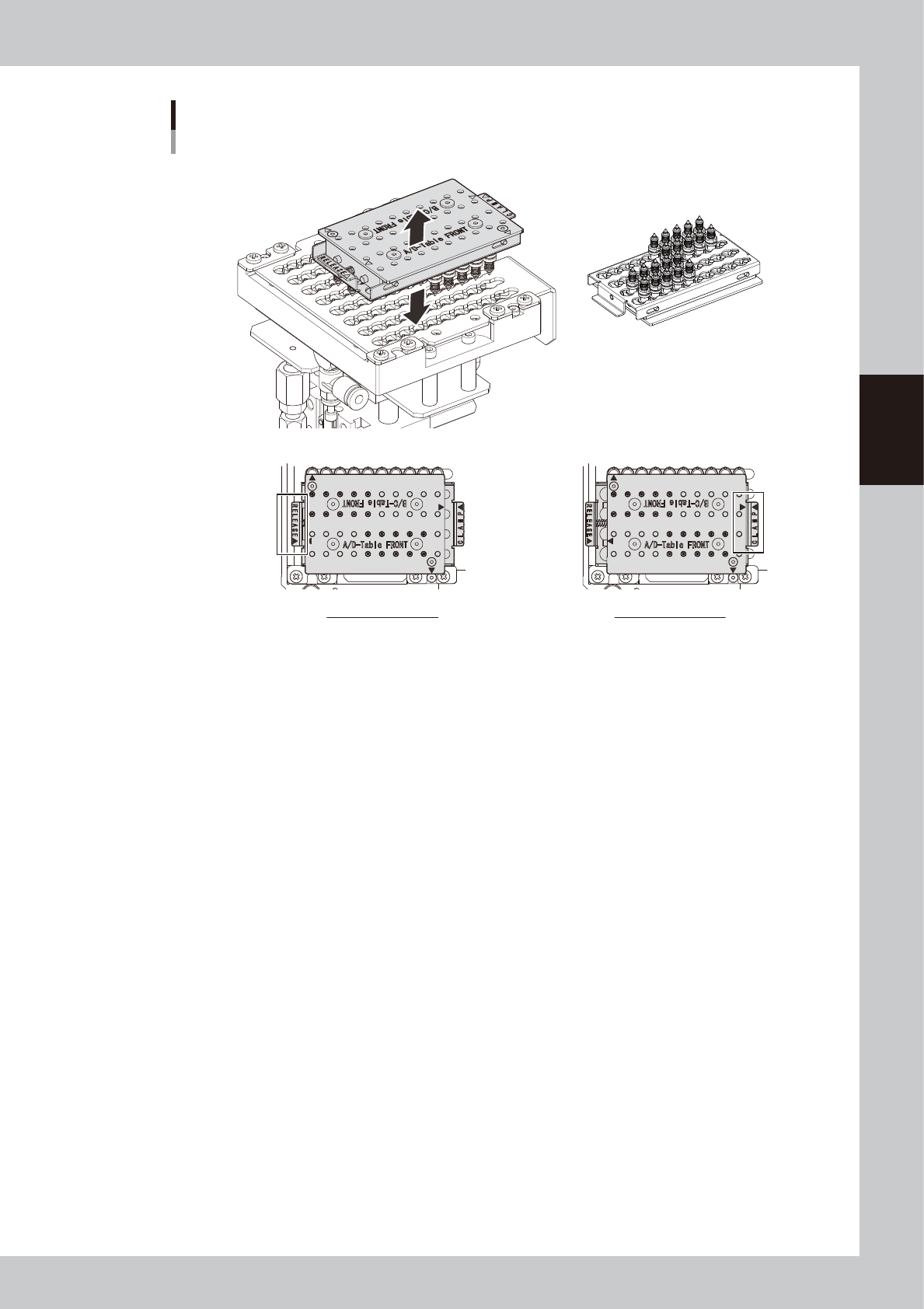

ANC nozzle attaching/detaching tool for RS head
3-11
3
Periodic maintenance items
ANC nozzle attaching/detaching tool
For RS head
Nozzles are clampedNozzles are released
533E7-N9-00
n
Available nozzles
720X Series nozzles (7201A, 7202A nozzles, etc.)
n

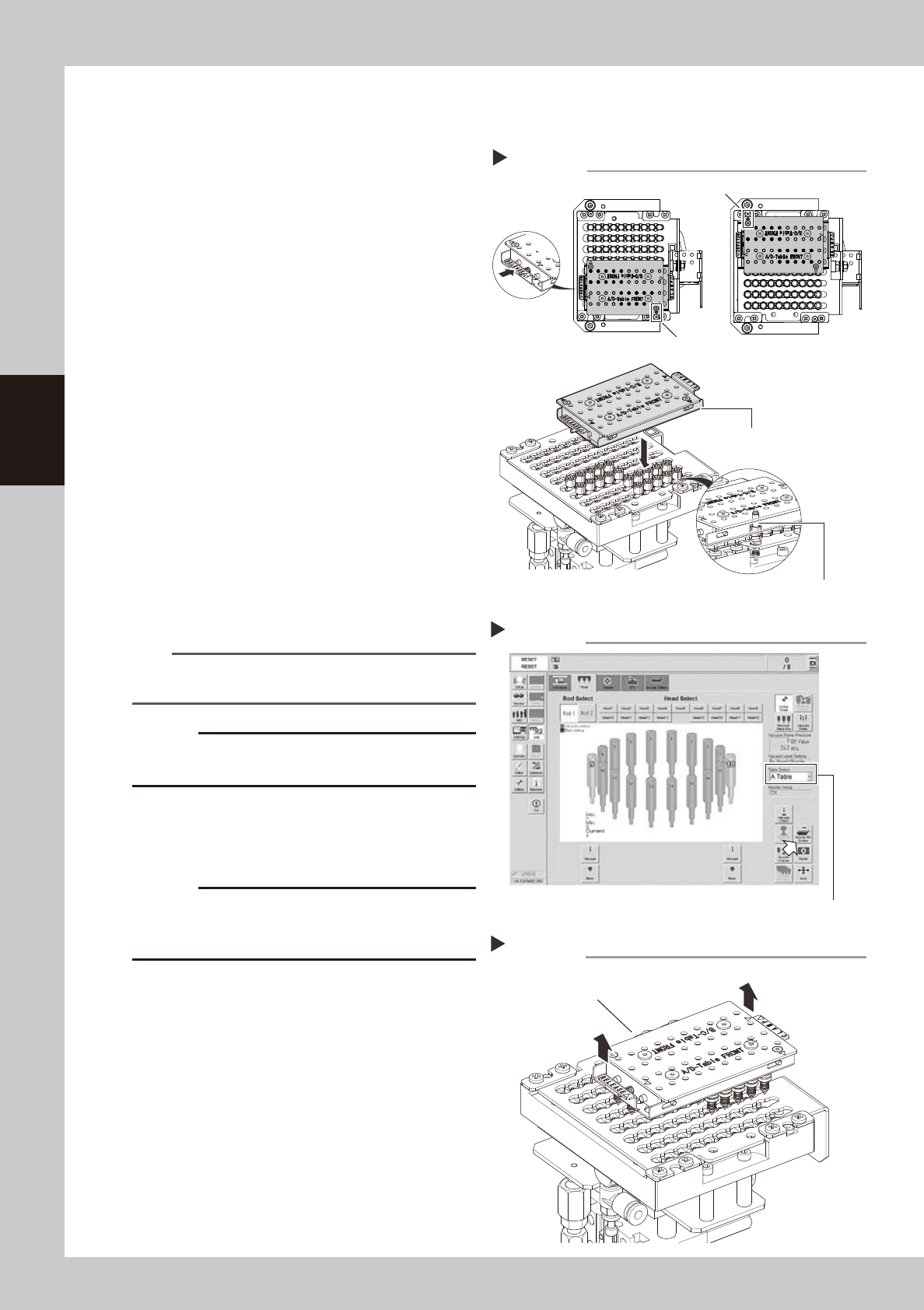

How to detach all nozzles for RS head
3-12
3
Periodic maintenance items
This section describes the procedure with "A/D Table Front" as an example.
1
Set the tool on the nozzle station.
e
1. Press the emergency stop button and
then open the machine safety cover.
2. Push the "RELEASE" side of tool to release
all nozzles.
3. Set the tool as the "A/D-Table Front" on
tool is not upside down. Insert the tool
into nozzle station aligning ANC mark
and tool mark.
4. Check that the tool is set to nozzles
securely.
5. Push the "CLAMP" side to clamp all
nozzles.
533E8-N9-00
2
Open the nozzle station shutter.
1. Open [Unit] - [Head] screen.
2. Select head unit from "Table Select".
3. Press [Nozzle. Stn Shutter] button to open
the nozzle station shutter.
54302-N9-00
3
Raise the tool up.
Raise the tool up vertically and slowly.
533E9-N9-00
n
NOTE
Raise the tool up vertically and slowly to avoid the
nozzle tip from hitting the shutter, etc.
c
CAUTION
If raising the tool up fast and forcibly, nozzles or the
nozzle station may be damaged.
4
Close the nozzle station shutter.
Press the [Nozzle. Stn Shutter] button again
and close the nozzle station shutter.
c
CAUTION
80 nozzles can be stored in nozzle station. The tool can
detach/attach 40 nozzles at once. When using 2 tools,
make sure to return nozzles to the original positions.
n
How to attach all nozzles for MU head
Step2
Nozzle station - Opening the shutter
Table Select
Setting tool
Step 1
Marks of ANC and tool
Marks of ANC and tool
Set the tool vertically aligning
nozzles to be detached.
Check that the tool is set to
nozzles securely.
Step 3
Raising tool up
Raise tool up vertically to avoid
nozzle tip from hitting shutter.
